Burkert Type 2100 angle seat valve is specially optimised for decentralized process automation and fulfils the tough criteria in process environments. Its unique design allows easy integration of automation units in all expansion stages, from electrical/optical position feedback to pneumatic control and integrated fieldbus interface. Maximum service life and tightness are achieved by the proven self-adjusting v-seal packing gland. The highly integrated system of valve and automation unit is characterised by its compact and smooth design, integrated pilot air ducts, protection classes IP65/67, NEMA Type 4X and high resistance to chemicals.

Features

• High flow rates
• Long service life
• Easy integration of automation units with ELEMENT
• Flow-optimised stainless steel valve body with sleeve, clamp or weld connection
• Suitable for steam

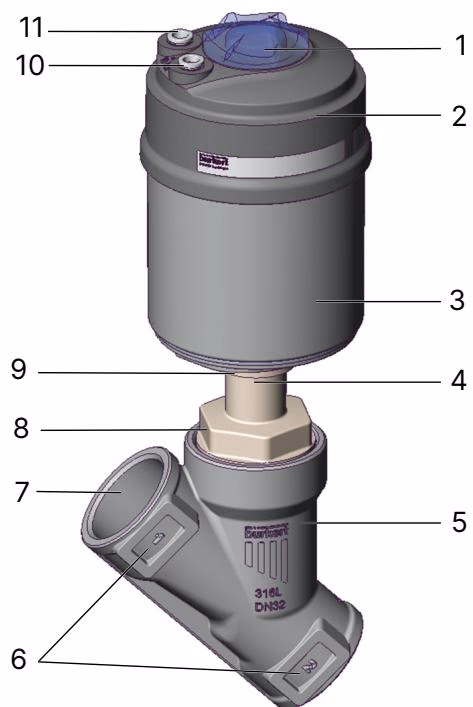

Product Overview

1. Transparent cap with position
2. Actuator cover
3. Actuator housing
4. Relief bore
5. Valve body
6. Flow direction marking
7. Port connection
8. Body connection
9. Actuator connection
10. Pilot air port 1
11. Pilot air port 2

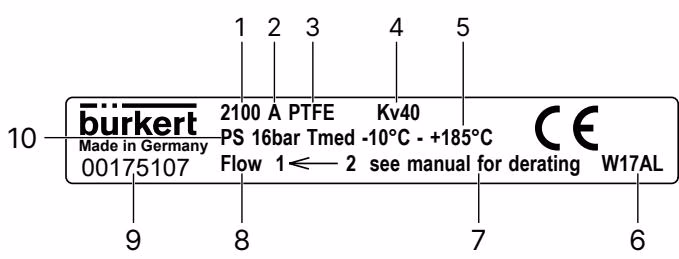

General Technical Data

Product properties
Design	Angle seat valve
Nominal diameter	DN 10...DN 80, NPS 3/8...NPS 3
Safety setting	Normally closed (control function A), normally open (control function B)
Flow direction	Flow to open (below seat), flow to close (above seat)
Operating pressure	0 bar(g)...25 bar(g), vacuum variants...- 0.9 bar(g) (option)
Nominal pressure	PN 25 (DIN EN 1333), Class 150 (DIN EN 1759)
Pilot pressure	2.5 bar(g)...10 bar(g)
Seat leakage	Leakage rate A (DIN EN 12266-1), seat seal PTFE and PEEK, test medium air
Operating medium	Steam, water, neutral gases, alcohols, oils, fuels, hydraulic fluids, salt solutions, alkalis, organic solvents, oxygen and fuel gases
Medium temperature	- 40 °C...+ 230 °C
Viscosity	Max. 600 mm²/s
Control medium	Air, neutral gases
Ambient temperature	- 10 °C...+ 100 °C
Degree of protection	IP65/67
Installation position	As required, preferably with actuator in upright position

Materials

No.	Element	Material
1	Ground terminal	Stainless steel 1.4301/1.4305 only for ATEX variant
2	Optical position indicator	Polysulfone PSU
3	Pilot air ports	Push-in connector PP (Standard)
4	Actuator cover	PPS
5	Actuator casing	Stainless steel 1.4561 (316Ti)
6	Piston seal	FKM
7	Spring	Stainless steel 1.4310
8	Pipe	Stainless steel 1.4401 (316)/1.4404 (316L)
9	Packing gland	PTFE V-Rings (filled), with spring compensation
10	Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
11	Spindle guide	PEEK
12	Body seal	Graphite, PTFE (Option)
13	Swivel plate	Stainless steel 1.4401 (316)/1.4404 (316L)
14	Seat seal	PTFE, PEEK (Option)
15	Valve body	Stainless steel CF3M

INFO

The lubricants for packing gland and actuator are classified according to NSF H1.

Approvals and Conformities

• Explosion protection: EPS 18 ATEX 2 008 X II 2G Ex h IIC T4…T2 Gb / II 2D Ex h IIIC T135 °C…T300 °C Db. IECEx EPS 18.0007X.
• Drinking water: Suitable for use in drinking water applications (TrinkwasserV).
• Foods and beverages/Hygiene: FDA, USP, EC Regulation 1935/2004, China food GB Standards.
• Others: DNV GL classification, Suitability for oxygen, Fuel gases (CE), TA Luft.

Dimensions

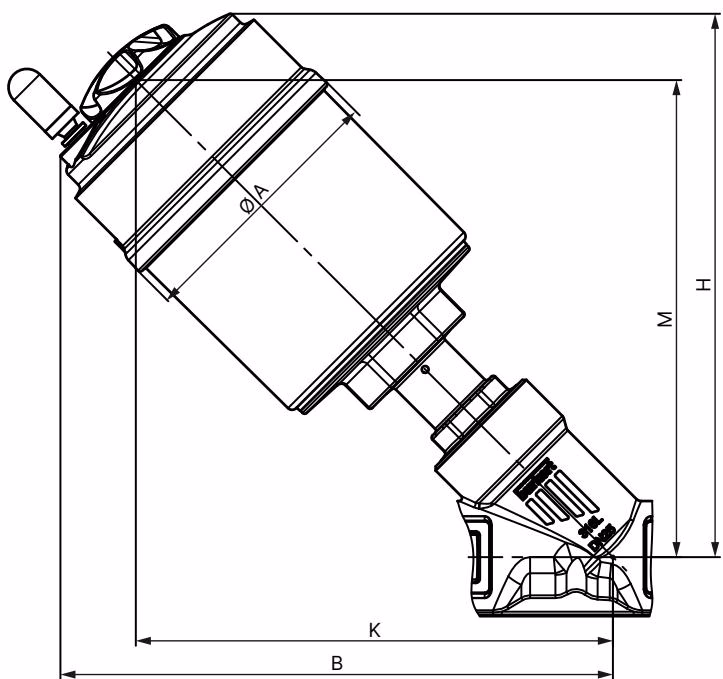

Actuator

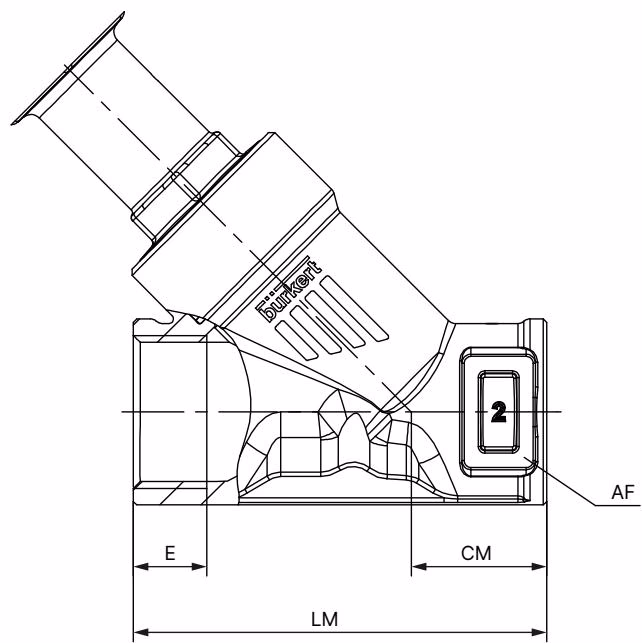

Body with threaded connection

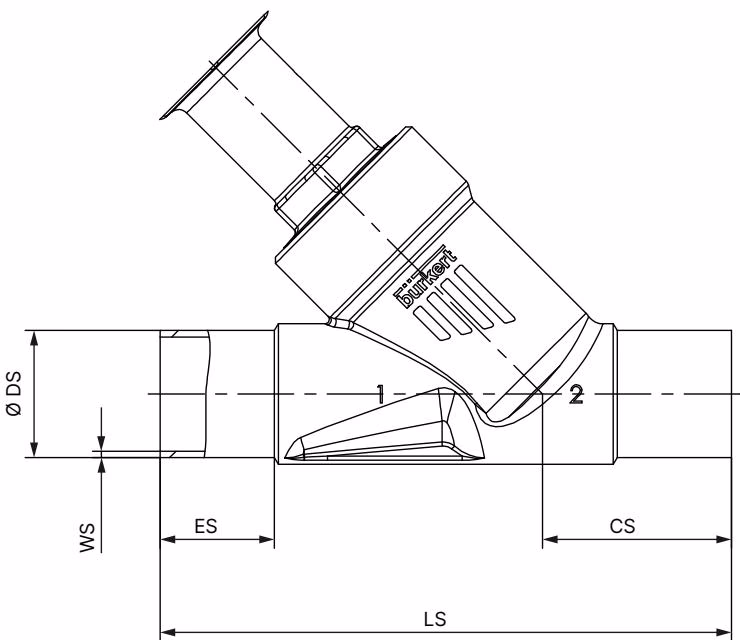

Body with welded connection

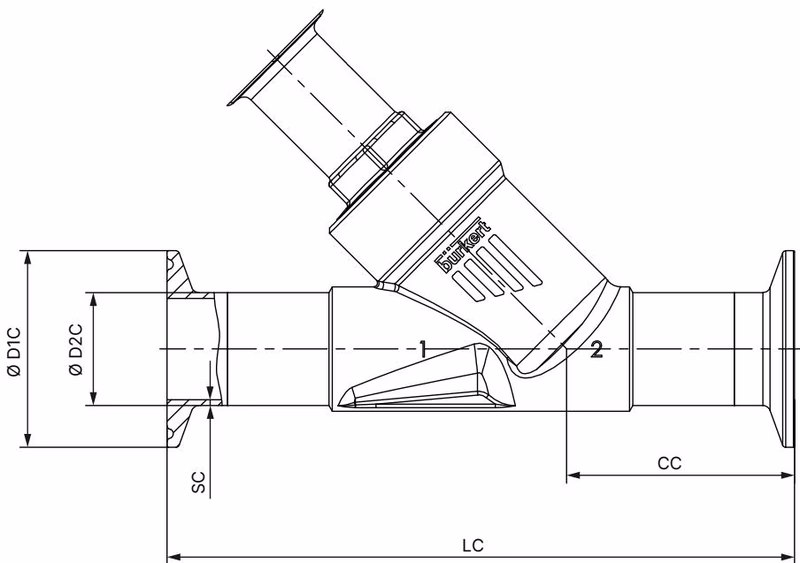

Body with clamp connection

Control Functions

WARNING

Risk of damage due to bursting pipes and bursting equipment when the flow is above the seat. In the case of liquid mediums, water hammer can occur causing pipes and the device to burst. Do not use valves with flow above the seat for liquid mediums.

• Control function A (CF A): Pneumatically operated 2/2-way on/off valve. Normally closed by spring force.
• Control function B (CF B): Pneumatically operated 2/2-way on/off valve. Normally opened by spring force.
• Control function I (CF I): Pneumatically actuated on/off valve on both sides. Rest position not defined (unpressurised).

Operating Limits for Optional Variants

• High-temperature variant: Suitable for applications with steam, neutral gases and other heat transfer mediums up to +230 °C.
• Water variant: For applications with water up to +200 °C, a special configuration of the packing gland increases service life significantly.
• Drinking water variant: Wetted materials are tested for suitability with drinking water up to +85 °C.
• Vacuum variant: Without leakage bore, this design is suitable for pressures down to -0.9 bar(g).
• Low-temperature variant: Suitable for minimum medium temperatures down to -40 °C.
• Variant for oxygen: Non-metallic wetted materials are tested for suitability with oxygen and are suitable for operating pressures up to 25 bar(g) and medium temperatures up to +60 °C.
