BURKERT Type 2100 (SKU 20044787) is a pneumatically operated 2/2-way angle seat valve specially optimized for decentralized process automation. It fulfills tough criteria in process environments, offering high flow rates and a long service life. The specific 20044787 model features a stainless steel body with a weld end connection (DN 32), a PEEK seat seal, and operates as normally closed (Control function A). It handles operating pressures up to 19.5 bar and medium temperatures ranging from -10 °C to +230 °C.

Its unique design allows easy integration of automation units in all expansion stages, from electrical/optical position feedback to pneumatic control and integrated fieldbus interfaces. Maximum service life and tightness are achieved by the proven self-adjusting V-seal packing gland.

Key Features

• High flow rates
• Long service life with self-adjusting V-seal packing gland
• Easy integration of automation units with ELEMENT
• Flow-optimized stainless steel valve body
• Suitable for steam, water, neutral gases, alcohols, oils, and more
• Protection classes IP65/67 and NEMA Type 4X

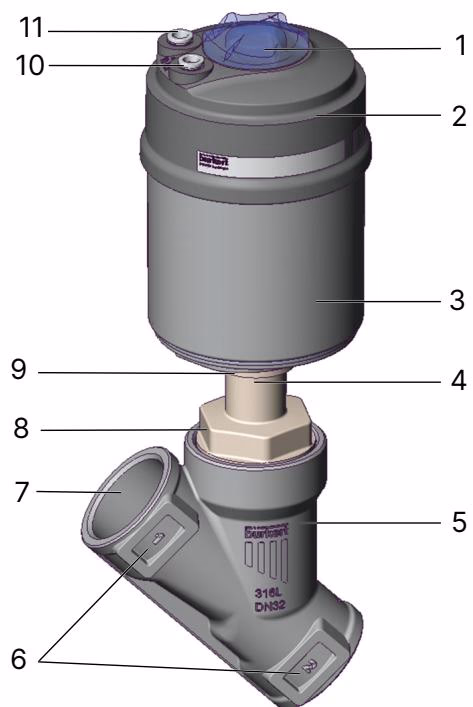

Product Overview

1. Transparent cap with position
2. Actuator cover
3. Actuator housing
4. Relief bore
5. Valve body
6. Flow direction marking
7. Port connection
8. Body connection
9. Actuator connection
10. Pilot air port 1
11. Pilot air port 2

Technical Data

Property	Value
Design	Angle seat valve
Safety setting	Normally closed (control function A)
Flow direction	Flow to open (below seat), flow to close (above seat)
Operating pressure	0 bar(g) ... 19.5 bar(g) (for SKU 20044787)
Nominal pressure	PN 25 (DIN EN 1333), Class 150 (DIN EN 1759)
Pilot pressure	5 bar(g) ... 10 bar(g)
Operating medium	Steam, water, neutral gases, alcohols, oils, fuels, hydraulic fluids, salt solutions, alkalis, organic solvents
Medium temperature	-10 °C ... +230 °C
Ambient temperature	-10 °C ... +100 °C
Viscosity	Max. 600 mm²/s
Control medium	Air, neutral gases
Port connection	Weld end (DN 32)

WARNING

Risk of damage due to bursting pipes and bursting equipment when the flow is above the seat. In the case of liquid mediums, water hammer can occur causing pipes and the device to burst. Do not use valves with flow above the seat for liquid mediums.

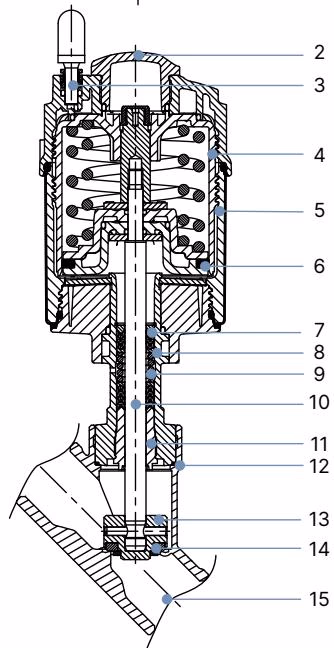

Materials

No.	Element	Material
1	Ground terminal	Stainless steel 1.4301/1.4305 (ATEX variant only)
2	Optical position indicator	Polysulfone PSU
3	Pilot air ports	Push-in connector PP (Standard)
4	Actuator cover	PPS
5	Actuator casing	Stainless steel 1.4561 (316Ti)
6	Piston seal	FKM
7	Spring	Stainless steel 1.4310
8	Pipe	Stainless steel 1.4401 (316)/1.4404 (316L)
9	Packing gland	PTFE V-Rings (filled), with spring compensation
10	Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
11	Spindle guide	PEEK
12	Body seal	Graphite, PTFE (Option)
13	Swivel plate	Stainless steel 1.4401 (316)/1.4404 (316L)
14	Seat seal	PEEK (for SKU 20044787)
15	Valve body	Stainless steel CF3M

INFO

The lubricants for the packing gland and actuator are classified according to NSF H1.

Dimensions

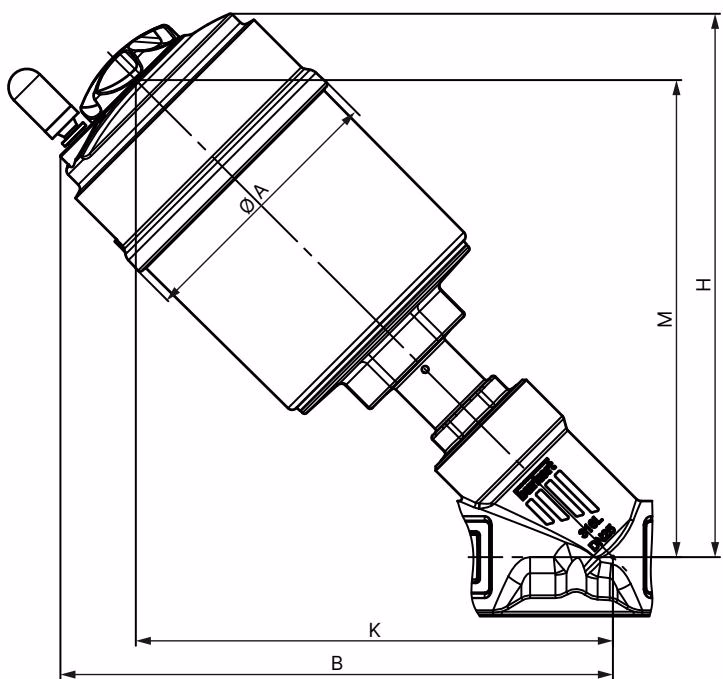

Actuator

Nominal diameter	Actuator size ∅	∅ A [mm]	B [mm]	H [mm]	K/M [mm]
DN 32	70 (M)	91	201	197	174
DN 32	90 (N)	120	243	242	217
DN 32	130 (P)	159	293	293	254

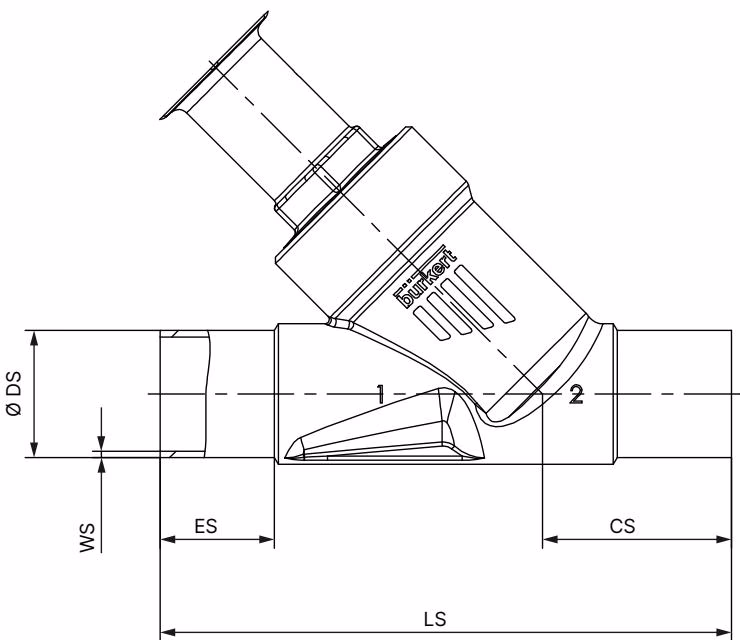

Body with Welded Connection

Nominal diameter	DIN EN ISO 1127 / ISO 4200 / DIN 11866 series B
DN	ES
32	26

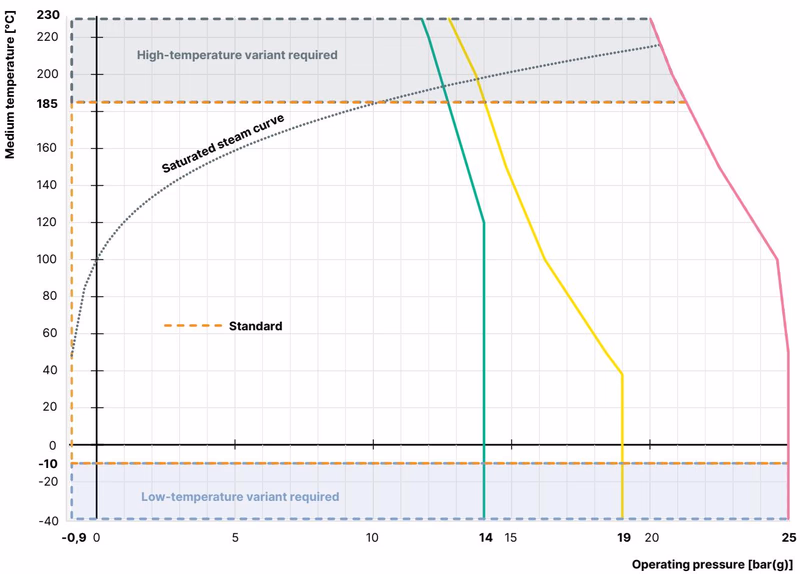

Operating Limits

In addition to the maximum operating pressures, the operating range of Bürkert process valves is limited by the nominal pressure according to the relevant standard.

DANGER

Explosion Hazard due to Electrostatic Charge! If the device is used in a potentially explosive atmosphere (ATEX), sudden discharge of electrostatically charged devices or individuals presents an explosion risk. Ensure appropriate measures are taken to prevent electrostatic buildup. Ground the actuator and valve body appropriately.
