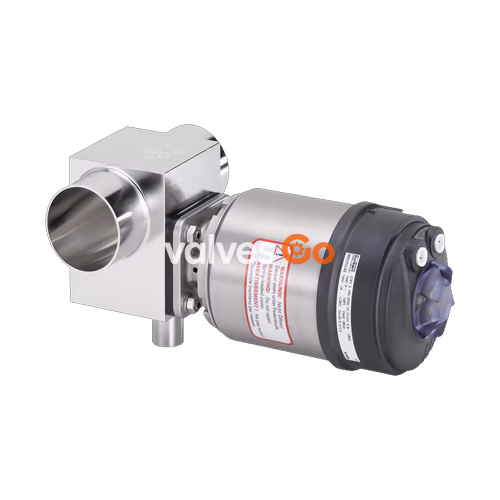

Burkert Type 2104 externally controlled T-diaphragm valve with pneumatic piston actuator. Features a stainless steel body, IP65/67 protection, and hygienic design for sterile applications.

Burkert Type 2104 externally controlled diaphragm valve consists of a pneumatically operated piston actuator, a diaphragm, and a T-valve body. The proven and robust actuator with a stainless steel housing ensures use in hygienic or aggressive ambient conditions. The flow-efficient valve bodies with little dead space enable high flow rates and a wide range of possible uses. The valve body and the diaphragm are available in all common materials and variants.
The actuator has a compact, autoclavable design with a large stainless steel housing and gap-free seals. The integration of automation units Type ELEMENT is possible in all configuration levels (can be retrofitted); a fieldbus interface can also be integrated. An explosion-proof ATEX/IECEx device variant is available. It is a compact, smooth-surfaced, and highly integrated system consisting of a valve and an automation unit with integrated pilot air ducts (no intake of ambient air). The valve offers degrees of protection IP65/67 and NEMA Type 4X and displays high chemical resistance.

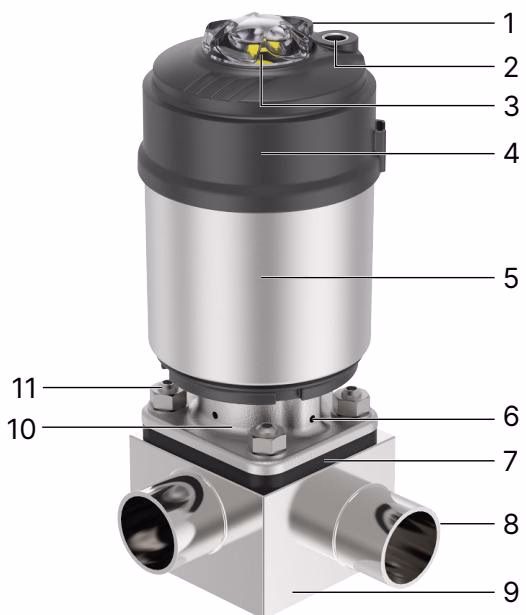

| Component | Description |
|---|---|
| 1 | Pilot air port 1 for CF A, CF B and CF I |
| 2 | Pilot air port 2 for CF I, exhaust port for CF A and CF B |
| 3 | Transparent cap with position |
| 4 | Actuator cover |
| 5 | Actuator housing |
| 6 | Relief bore |
| 7 | Diaphragm |
| 8 | Port connection |
| 9 | Valve body |
| 10 | Diaphragm bonnet |
| 11 | Body screw |
| Product properties | Description |
|---|---|
| Block body (VH/VI) | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479 / A479M / ASME BPE |
| Diaphragm | EPDM (AD), PTFE/EPDM (EA), Advanced PTFE/EPDM (EU), laminate of GYLON® and EPDM (ER) |
| Actuator | DN 08...65, PPS; DN 65...100, stainless steel 1.4308 |
| Actuator casing | DN 08...65, stainless steel 1.4561 (316Ti); DN 65...100, stainless steel 1.4308 |
| Diaphragm size | 8...100 |
| Standard surface quality | Internally electrically polished: Ra ≤ 0.38 μm (ASME BPE SF4 / DIN HE4). Internally mechanically polished: Ra ≤ 0.5 μm (ASME BPE SF1). Externally Ra ≤ 1.6 μm |
| Maximum pilot pressure (SF A) | 10 bar (7 bar for actuator size 130, 225) |
| Pilot air port | Push-in connector for outer diameter, ∅ 6 mm or 1/4" (standard), thread G 1/8" |
| Operating medium | Neutral gases and liquids, highly purified, sterile, aggressive or abrasive mediums |
| Nominal diameter | DN 06...DN 100 (1/8"...4") |
| Ambient temperature | -10 °C...+ 60 °C, autoclavable |
| Diaphragm material | Medium temperature [°C] | Comments |
|---|---|---|
| EPDM (AD) | -10...+143 | Steam sterilisation max. +150°C for 60 min |
| FKM (FF) | 0...+130 | No steam, dry heat max +150°C for 60 min |
| PTFE (EA) | -10...+130 | Steam sterilisation max. +140°C for 60 min |
| Advanced PTFE (EU) | -5...+143 | Steam sterilisation max. +150°C for 60 min |
| GYLON® (ER) | -5...+130 | Steam sterilisation max. +140°C for 60 min |
| Control Function | Description |
|---|---|
| Control function A (CF A) | Pneumatically operated T-valve. Normally closed by spring force. |
| Control function B (CF B) | Pneumatically operated T-valve. Normally opened by spring force. |
| Control function I (CF I) | Pneumatically operated T-valve on either side. Switching position dependent on external control. |

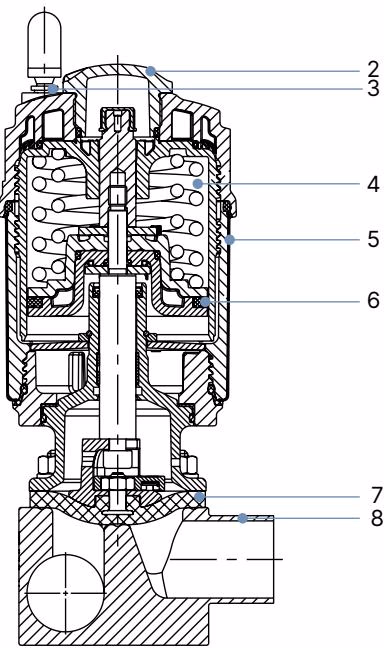

| No. | Element | Material |
|---|---|---|
| 1 | Ground terminal | Stainless steel 1.4301/1.4305 (only for ATEX/IECEx variant) |
| 2 | Transparent cap | Polysulfone PSU |
| 3 | Pilot air ports | Push-in connector PP (standard), Thread G 1/8" stainless steel 1.4305 |
| 4 | Actuator | Polyphenylene sulphide PPS |
| 5 | Cover | Stainless steel 1.4561 (316Ti) |
| 6 | Piston seal | FKM |
| 7 | Diaphragm | EPDM (AD), PTFE/EPDM (EA), advanced PTFE/EPDM (EU), laminate of GYLON® and EPDM (ER) |
| 8 | Valve body | Stainless steel block material |

| Diaphragm size | Actuator size ∅ | ∅ A | HS with 8691 / 8695 | HS with 8690 / 8697 | H+M (MT86) |
|---|---|---|---|---|---|
| 8 | 50 (D) | 65 | 232 | 219 | 138 |
| 15 | 50 (D) | 65 | 240 | 226 | 146 |
| 15 | 70 (M) | 92 | 262 | 229 | 166 |
| 20 | 70 (M) | 92 | 262 | 229 | 166 |
| 25 | 70 (M) | 92 | 268 | 235 | 172 |
| 25 | 90 (N) | 120 | 301 | 269 | 205 |
| 32 | 90 (N) | 120 | 313 | 280 | 217 |
| 40 | 90 (N) | 120 | 317 | 285 | 221 |
| 40 | 130 (P) | 160 | 370 | 337 | 274 |
| 50 | 130 (P) | 160 | 379 | 346 | 282 |
| 65 | 130 (P) | 160 | 383 | 350 | 287 |
| 65 | 225 (L) | 245 | 427 | 395 | 330 |
| 80 | 225 (L) | 245 | 433 | 401 | 336 |
| 100 | 225 (L) | 245 | 429 | 397 | 332 |

(Excerpt for DIN EN ISO 1127 / ISO 4200 / DIN 11866 series B, Diaphragm size 8-25)
| Diaphragm size | Port 1 – Port 2 DN | ∅D1 | s1 | ∅D2 | s2 | A | B | C | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 8...8 | 13.5 | 1.6 | 13.5 | 1.6 | 78.0 | 20.0 | 47.2 | 20.0 | 60.0 | 24.0 | 15.0 | 5.0 |
| 8 | 15...8 | 21.3 | 1.6 | 13.5 | 1.6 | 78.0 | 20.0 | 51.1 | 20.0 | 64.0 | 34.0 | 21.0 | 11.0 |
| 15 | 15...15 | 21.3 | 1.6 | 21.3 | 1.6 | 93.0 | 20.0 | 56.0 | 20.0 | 71.0 | 35.0 | 21.0 | 6.5 |
| 20 | 20...20 | 26.9 | 1.6 | 26.9 | 1.6 | 114.0 | 25.0 | 70.3 | 25.0 | 87.0 | 40.0 | 24.0 | 6.0 |
| 25 | 25...25 | 33.7 | 2.0 | 33.7 | 2.0 | 124.5 | 25.0 | 78.6 | 25.0 | 98.0 | 53.0 | 33.0 | 13.0 |
Additional dimensions for ASME BPE, SMS 3008, DIN 11850, and clamp connections are available in the full technical documentation.
WARNING
Risk of bursting due to overpressure If the device bursts, escaping media may cause injuries, burns or scalds. Observe the values indicated on the type label.
DANGER
Electric shock due to electrical components Touching live parts can result in severe electric shock. Before working on the device or system, switch off the power supply and secure it against reactivation.
TIP
Installation Position Any installation position is possible, preferably with the actuator facing up. For T-valve bodies in circular pipelines, specific inclination angles are recommended for optimal draining.

WARNING
Damage to the diaphragm or the actuator The diaphragm and actuator can be damaged when welding the valve body into the pipeline. In the case of devices with a welded connection, remove the actuator and diaphragm from the valve body before installation.
| Diaphragm size | EPDM, FKM [Nm] | PTFE, advanced PTFE, GYLON® [Nm] |
|---|---|---|
| 8 | 2 | 2.5 |
| 15 | 3.5 | 4 |
| 20 | 4 | 4.5 |
| 25 | 5 | 6 |
| 40 | 8 | 10 |
| 50 | 12 | 15 |
| 65 | 20 | 30 |
| 80 | 30 | 40 |
| 100 | 40 | 50 |
| Cause | Solution |
|---|---|
| Actuator does not switch | |
| Pilot air port interchanged | Connect the pilot air correctly (CF A: Port 1; CF B: Port 1; CF I: Port 1 Open, Port 2 Close). |
| Pilot pressure too low | Observe pressure data on the type label. |
| Operating pressure too high | Observe pressure data on the type label. |
| Valve is not tight | |
| Pilot pressure too low | Observe pressure data on the type label. |
| Operating pressure too high | Observe pressure data on the type label. |
| Flow rate reduced | |
| Bulging PTFE diaphragm | Replace the diaphragm. |
