BURKERT Type 3361 (Model 20081535) is an electromotive 2-way globe control valve designed for demanding operating conditions. This specific model features a DN 10 flange connection (DIN EN 1092-1), a stainless steel valve body, and operates on a 24 V DC supply voltage. It is capable of handling pressures from 0 to 25 bar (PN 25 / Class 150) and medium temperatures ranging from -10 °C to +185 °C. The valve provides highly precise, dynamic closed-loop control with a positioning speed of up to 6 mm/s, reacting almost delay-free to process signals. Pressure variations or shocks in the medium are not transferred to the valve position. The closed design and robust surface ensure the hygienic requirements of fast and residue-free cleaning.

General Technical Data

Property	Value
Design	Globe control valve
Nominal diameter	DN 10
Port connection	Flange (DIN EN 1092-1)
Flow direction	Against closing direction (below seat)
Operating pressure	0...25 bar(g)
Nominal pressure	PN 25 (DIN EN 1333), Class 150 (DIN EN 1759)
Kv value (water)	0.35 m³/h
Flow characteristic	Equal percentage
Operating voltage	24 V DC ± 10 % (maximum residual ripple 10 %)
Medium temperature	-10 °C...+185 °C
Ambient temperature	-25 °C...+65 °C
Degree of protection	IP65/IP67 (DIN EN 60529), NEMA 4X

Materials

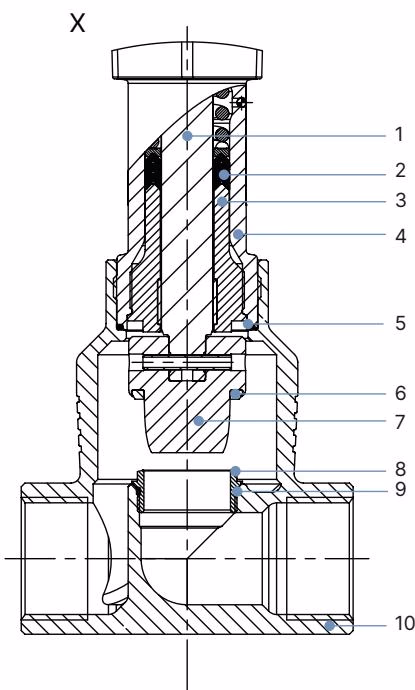

No.	Component	Material
1	Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
2	Spindle seal	PTFE V-seals (filled) with spring compensation
3	Spindle guide	Stainless steel 1.4404 (316L)
4	Packing gland tube	Stainless steel 1.4401 (316)
5	Seal valve body	Graphite or PTFE
6	Seat seal	Stainless steel 1.4571 (optionally hardened), PTFE or PEEK seal washer
7	Control cone	Stainless steel 1.4571 (optionally hardened)
8	Valve seat	Stainless steel 1.4571 (optionally hardened)
9	O-ring valve seat	EPDM or PTFE
10	Valve body	Stainless steel CF3M

Dimensions

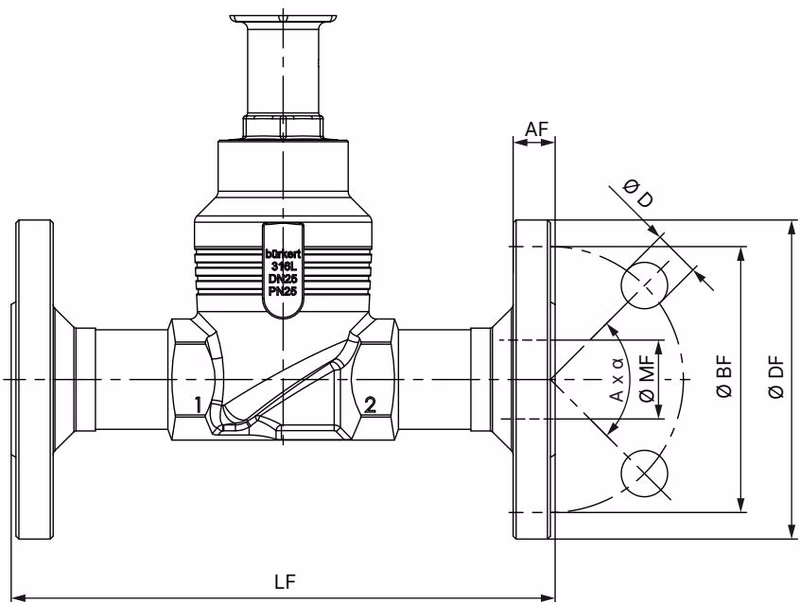

Body with flange connection

INFO

Dimensions in mm, unless otherwise stated.

Nominal diameter	DIN EN 1092 PN 25 (FTF 1 according to DIN EN 558-1)
DN	∅ DF	LF	∅ BF	AF	∅ D	A x α	∅ MF
10	90	130	60	16	14	4 × 90°	13.6

Performance Specifications

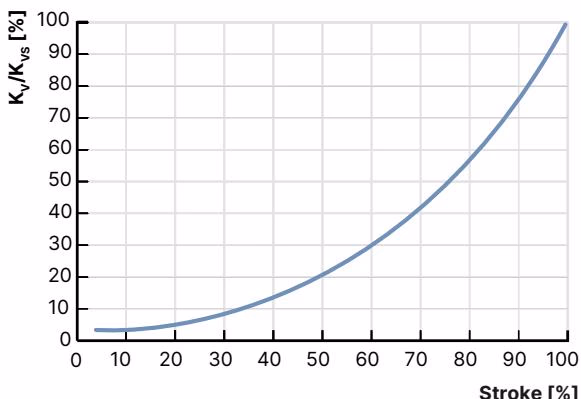

Flow characteristics

• Equal-percentage flow characteristic according to DIN EN 60534-2-4.
• Theoretical rangeability: Kvs / Kv0.

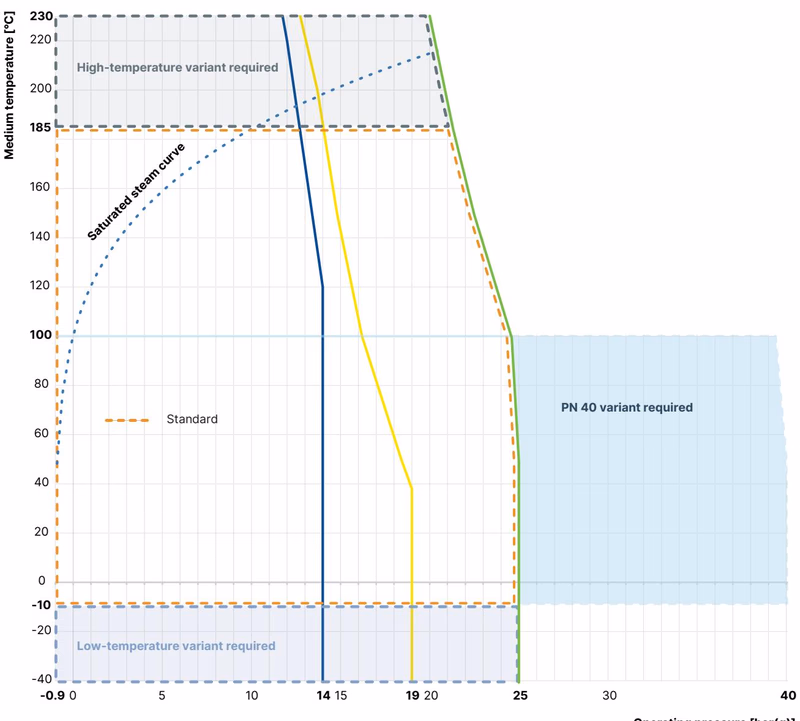

Operating limits for medium temperature and operating pressure

In addition to the maximum operating pressures, the application range of Bürkert process valves is limited by the nominal pressure in accordance with the relevant standard.

WARNING

For device variants with approvals or conformities, deviating technical operating limits (temperature, pressure) may apply. Refer to the corresponding approval-related documentation.

Product Design and Assembly

The electromotive linear drive consists of a brushless DC motor, a gear and a spindle system that transfers the force to the closing element. The integrated electronics are controlled either by standard signals or via a fieldbus (digital). The electromotive linear actuator is designed to provide optimum efficiency. At the same time, it keeps the valve tight and in position even at the maximum specified medium pressure in a powerless standstill.
