BURKERT 20091306 (Type 3361) electromotive 2-way globe control valve is the solution when it comes to control tasks under demanding operating conditions. The electromotive actuator with ball screw positions the control cone with highest precision. A unique feature is its high positioning speed up to 6 mm/s that reacts almost delay-free to process signals and that can be varied according to customer demands. Pressure variations or shocks in the medium are not transferred to the valve position.

Each flow optimised valve body can be equipped with up to 5 different valve seats for a precise adaptation according to customer needs. The 20091306 model features a DN 40 clamp connection, an AG2 actuator (1300 N), and an integrated positioner function with büS and PROFINET communication. Actuator and valve are adapted perfectly to each other with a closed design and robust surface. This ensures the hygienic requirements of fast and residue-free cleaning. Harsh environmental conditions are no problem for the Type 3361 because of the degree of protection IP65/IP67 and its high impact and vibration resistance.

Product Features

• Highly precise, dynamic closed-loop control: Equal percentage 50:1 flow characteristic.
• Robust Design: Weather, impact, and vibration resistant design (IP65/67, NEMA 4X).
• Hygienic: FDA-compliant materials and easy-to-clean surface.
• Safety: Normally closed delivery status with electrical energy storage (SAFEPOS energy-pack).
• Communication: Integrated fieldbus gateway supporting büS and PROFINET.

General Technical Data

Product Properties	Description
Design	Globe control valve
Nominal diameter	DN 40 (NPS 1 1/2) - 48.3x2.0 Cl. 64.0
Port connection	Clamp (DIN 32676 series B)
Safety setting	With energy storage SAFEPOS energy-pack: open, closed or freely programmable position
Flow direction	Against closing direction (below seat)
Controller variant	Positioner
Operating pressure	0...16 bar(g)
Nominal pressure	PN 25 (DIN EN 1333), Class 150 (DIN EN 1759)
Kv value (water)	20 m³/h (Cv: 23.1 gal/min)
Flow characteristic	Equal percentage 50:1
Travel speed	6 mm/s (for AG2 actuator force 1300 N)
Operating voltage	24 V DC ± 10 % (maximum residual ripple 10 %)
Protection class	IP65/IP67 (DIN EN 60529), NEMA 4X
Medium temperature	-10 °C...+185 °C
Ambient temperature	-25 °C...+65 °C

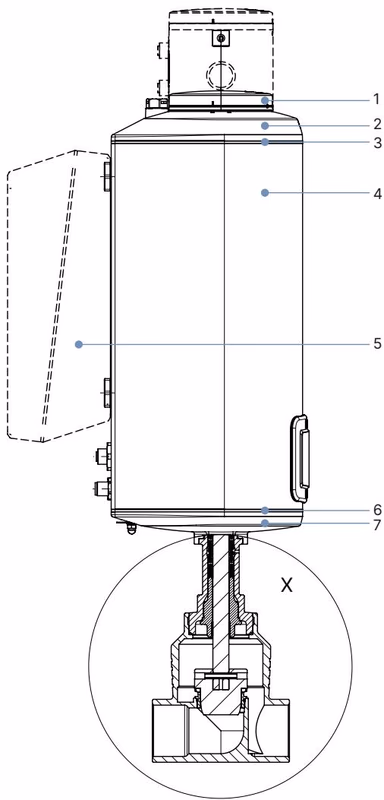

Materials

No.	Component	Material
1	Display housing/blind cover/gateway housing	PPS (standard), stainless steel 1.4301 (for ATEX/IECEx)
2	Actuator cover	PPS
3	Seal	EPDM
4	Actuator housing	Powder-coated aluminium
6	Seal	EPDM
7	Actuator base	PPS

Note: The valve body is made of Stainless Steel CF3M, and the seat seal is stainless steel.

Dimensions

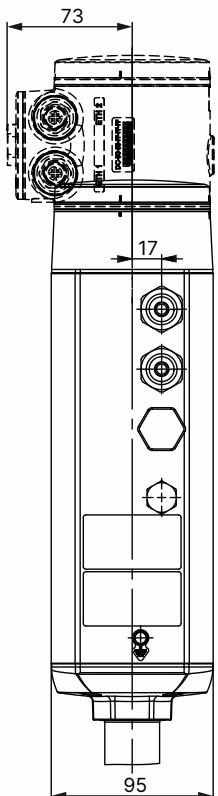

Actuator (AG2)

Nominal diameter	NPS	Height H1 (Standard)	Height H2 (Fieldbus variant)
DN 40	1 1/2	479 mm	551 mm

Note: Dimensions without sealing function: the actuator is raised by approx. 2 mm in the closed position.

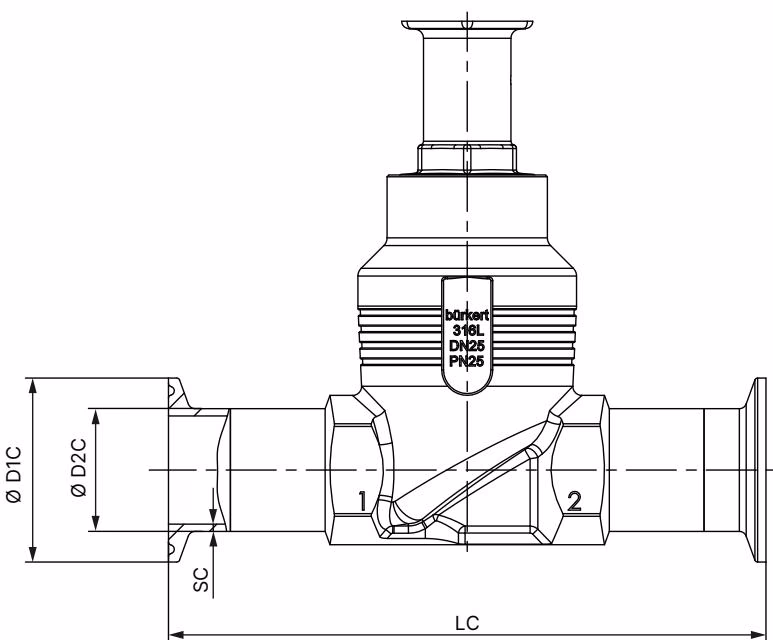

Body with Clamp Connection

Nominal diameter	Clamp: DIN 32676 series B (Pipe: ISO 4200)
DN 40	LC: 193 mm, ∅ D2 C: 48.3 mm, ∅ D1 C: 64.0 mm, SC: 2.0 mm

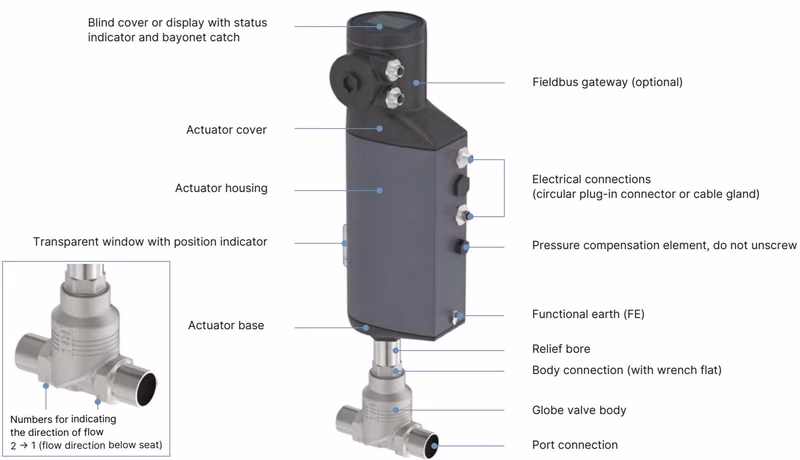

Product Assembly

The electromotive linear drive consists of a brushless DC motor, a gear and a spindle system that transfers the force to the closing element. The integrated electronics are controlled either by standard signals or via a fieldbus (digital). The electromotive linear actuator is designed to provide optimum efficiency. At the same time, it keeps the valve tight and in position even at the maximum specified medium pressure in a powerless standstill.

Integrated Position Controller

The position of the actuator (stroke) is controlled according to the position set-point value. The position set-point value is either given by an external standard signal (analogue) or via a fieldbus (digital). The displacement transducer records the actual position (POS) of the electric linear actuator. The positioner compares the actual position value with the position set-point value (CMD) specified as standard signal.
