Bürkert Type 2300 (Article No. 377062) is a pneumatically operated 2-way angle seat control valve designed for process environments. In line with Bürkert’s philosophy for modular valves and sensors, the construction of the Type 2300 angle-seat valve fulfils tough criteria for process control. Unrivalled cycle life and sealing integrity are guaranteed by the proven self-adjusting packing gland. The parabolic trim results in a flow characteristic approximately 35% larger than conventional control valves. This specific model features a durable PTFE seal for tight shut-off, a 1-inch clamp connection, and operates with a normally closed (NC) control function.

The design enables the easy integration of automation modules, whether they are digital electropneumatic positioners or process controllers. The fully integrated system has a compact and smooth design, integrated pneumatic lines, IP65/67 protection class, and superior chemical resistance. It is engineered for reliable, accurate control in applications where a high flow rate is an advantage.

Key Features

• High Performance: Excellent combination of good control characteristic and high flow rate.
• Durability: Long service life with a self-adjusting packing gland.
• Integration: Control units can be mounted directly without external tubing.
• Construction: Stainless steel housing with a clamp connection.
• Approvals: Material-approval-foods, Food (EC) 1935/2004 compliant according to Manufacturer Declaration.

Control Function

This valve operates with Control Function A (CF A):

• Pneumatically operated 2/2-way on/off valve.
• Flow direction below seat.
• Normally closed by spring force.

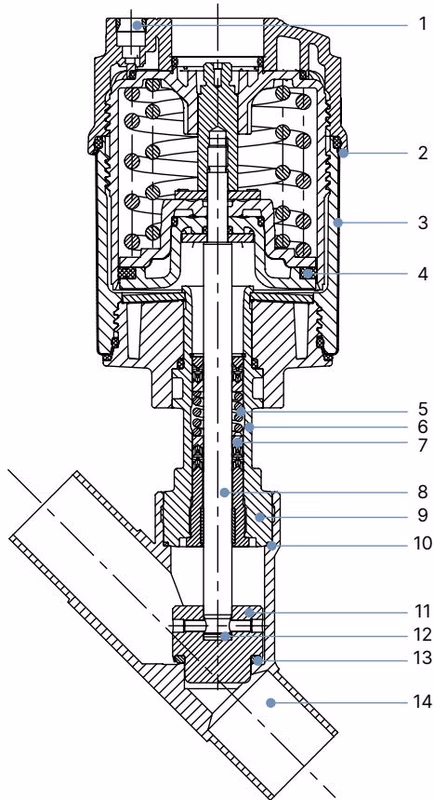

Material Specifications

No.	Element	Material
1	Pilot air ports	Push-in connector PP (standard)
2	Actuator cover	PPS
3	Actuator casing	Stainless steel 1.4561 (316Ti)
4	Piston seal	FKM
5	Spring	Stainless steel 1.4310
6	Pipe	Stainless steel CF3M
7	Packing gland	PTFE V-rings (filled), with spring compensation
8	Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
9	Spindle guide	Stainless steel 1.4404 (316L)
10	Body seal	Graphite or PTFE
11	Control cone	Stainless steel 1.4571
12	Spring pin	Stainless steel 1.4310
13	Seat seal	PTFE
14	Valve body	Stainless steel CF3M

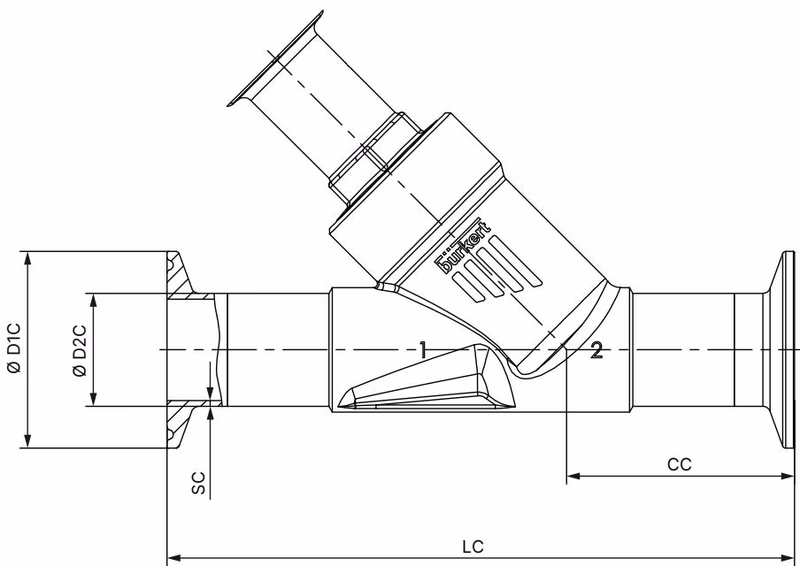

Dimensions: Body with Clamp Connection

Clamp: ASME BPE / Pipe: ASME BPE / DIN 11866 series C

Nominal diameter (NPS)	LC	CC	∅ D1 C	∅ D2 C	SC
1	160	58.0	50.5	25.4	1.65

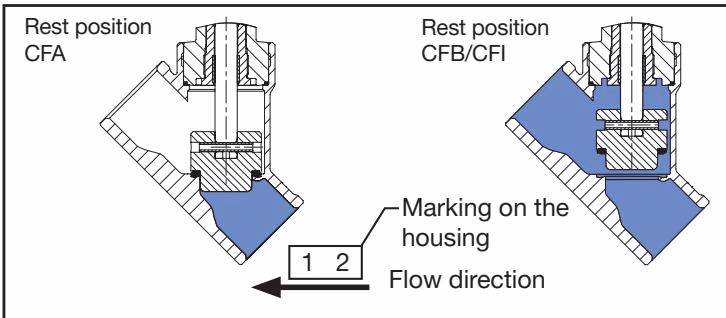

Flow Direction Below Seat

Because the medium pressure is below the control cone, it helps open the valve.

WARNING

Valve leak if there is too little minimum pilot pressure or high medium pressure! Minimum pilot pressure that is too low, or failing to meet the permitted medium pressure, can cause a leak in the valve seat.

• Adhere to minimum pilot pressure (5.5 to 7 bar for this model).
• Do not exceed the medium pressure (12 bar max).

Safety Instructions

DANGER

Risk of injury from high pressure in the system! Before working on the system or device, switch off the pressure and vent or empty the lines.

WARNING

Risk of injury when opening the actuator! The actuator contains a spring under tension. When the actuator is opened, the spring will jump out and may cause injuries. Do not open the actuator.

TIP

Installation Note Any installation position of the angle-seat control valve is possible, preferably with the actuator facing upward. Ensure that pipelines are aligned before connecting the valve and note the flow direction (flow direction always below seat).
