Product Overview
Spirax Sarco DP27 series pilot operated ductile iron pressure reducing valves include six models: DP27, DP27E, DP27G, DP27GY, DP27R, and DP27Y, specifically designed for pressure control in industrial applications. The products fully comply with the European Pressure Equipment Directive 97/23/EC, feature ductile iron bodies with robust and durable construction, suitable for steam systems, compressed air systems, inert gas systems, and various media (strictly prohibited for oxygen), meeting both general pressure control and critical pressure control requirements such as autoclaves, supporting remote control, timed control, and various functional modes.
Core Technical Parameters
Pressure and Temperature Limits
| Model Group | Maximum Operating Pressure (Saturated Steam) | Maximum Working Temperature | Minimum Working Temperature | Maximum Working Pressure Differential |
|---|---|---|---|---|
| DP27, DP27G, DP27GY | 17 bar g | 232 °C (DP27), 120 °C (DP27G/DP27GY) | 0 °C | 17 bar |
| DP27E | 10 bar g | 190 °C @ 10 bar g | 0 °C | 10 bar |
| DP27R, DP27Y | 17 bar g (3 bar g for DP27Y) | 232 °C (DP27Y) | 0 °C | 17 bar |
Port Sizes and Connection Specifications
| Port Size | Threaded Connection | Flange Connection Options |
|---|---|---|
| DN15LC | BSP, NPT (DN15-DN25 only) | EN 1092 PN16/25, BS 10 Table H/F, ASME 300, JIS 10/16 |
| DN15-DN25 | BSP, NPT | EN 1092 PN16/25, BS 10 Table H/F, ASME 150/300, JIS 10/16 |
| DN32-DN50 | - | EN 1092 PN16/25, BS 10 Table H, ASME 150/300, JIS 10/16 |
Kv Value (Valve Fully Open)
| Port Size | DN15LC | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
|---|---|---|---|---|---|---|---|
| Kv Value | 1.0 | 2.8 | 5.5 | 8.1 | 12.0 | 17.0 | 28.0 |
Product Dimensions/Weight (Approximate)
DP27, DP27E and DP27Y Dimensions/Weight (Approximate)
Unit: mm/kg
| Port Size | Threaded | A1 (BS 10 H) | A1 (PN16/25) | A1 (ASME 300) | A1 (BS 10 F) | A1 (ASME 150) | A1 (JIS10/16) | B | D | E | F | Weight (Threaded) | Weight (Flange) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN15LC | 160 | - | 130 | 126.6 | 117 | 120.2 | 122 | 185 | 406 | 276 | 130 | 13.2 | 14.0 |
| DN15 | 160 | - | 130 | 126.6 | 117 | 120.2 | 122 | 185 | 406 | 276 | 130 | 13.2 | 14.0 |
| DN20 | 160 | - | 150 | - | 133 | 139.4 | 142 | 185 | 406 | 276 | 130 | 13.2 | 14.9 |
| DN25 | 180 | 160 | 160 | 160.0 | - | 160.0 | 152 | 207 | 430 | 282 | 148 | 14.2 | 17.2 |
| DN32 | - | 180 | 180 | 180.0 | - | 176.0 | 176 | 207 | 430 | 282 | 148 | - | 18.2 |
| DN40 | - | 200 | 200 | 200.0 | - | 199.0 | 196 | 255 | 475 | 297 | 178 | - | 30.2 |
| DN50 | - | 230 | 230 | 230.0 | - | 228.0 | 222 | 255 | 475 | 297 | 178 | - | 32.2 |
DP27G, DP27GY Weight Table (Unit: kg)
| Port Size | Threaded Connection | Flange Connection |
|---|---|---|
| DN15 | 12.0 | 12.8 |
| DN20 | 12.0 | 13.7 |
| DN25 | 13.0 | 16.0 |
| DN32 | - | 17.0 |
| DN40 | - | 29.0 |
| DN50 | - | 31.5 |
DP27R Weight Table (Unit: kg)
| Port Size | Threaded Connection | Flange Connection |
|---|---|---|
| DN15LC | 12.2 | 13.0 |
| DN15 | 12.2 | 13.0 |
| DN20 | 12.2 | 13.9 |
| DN25 | 13.2 | 16.2 |
| DN32 | - | 16.2 |
| DN40 | - | 29.2 |
| DN50 | - | 31.7 |
Component Material Details
DP27, DP27Y Component Materials
| No. | Component Name | Material Standard |
|---|---|---|
| 1 | Adjusting Nut | BS 3692 Gr. 8.8 |
| 2 | Adjusting Lock Nut | BS 3692 Gr. 8 |
| 3 | Spring Chamber, Main Valve Body, Diaphragm Chamber | DIN 1693 GGG 40.3 (Ductile Iron) |
| 4 | Spring Upper Cover Plate | ASTM A351/A351M CF8M |
| 5 | Pressure Regulating Spring | BS EN 10270-3:2001 302 S 26 (Stainless Steel) |
| 6 | Spring Lower Cover Plate | BS 2872 CZ 122 (Brass) |
| 7 | Spring Chamber Fastening Nut | BS 3692 Gr. 8 (Steel) |
| 7 | Spring Chamber Fastening Bolt | BS 4439 Gr. 8.8 (Steel), M10×95mm for DN15-DN40, M12×95mm for DN50 |
| 8 | Pilot Diaphragm | BS 2870 PB102 1980 (Phosphor Bronze) |
| 9 | Pilot Chamber | EN JS 1025 (Ductile Iron) |
| 10 | Pilot Stem | BS 970 321 S 31 (Stainless Steel) |
| 11 | Pilot Assembly and Seal | BS 970 431 S 29 (Stainless Steel) + PTFE |
| 12 | Pilot Plug | AISI 420 (Stainless Steel) |
| 13 | Pilot Spring | BS 2057 302 S 26 (Stainless Steel) |
| 14 | Pilot Retaining Clip | BS EN 10088-2 1995 1.4310 (Stainless Steel) |
| 15 | Pilot Filter Cover Gasket | BS 1449 316 S 11 (Stainless Steel) |
| 16 | Pilot Filter Cover | BS 970 431 S 29 (Stainless Steel) |
| 17 | Pilot Filter Element | Brass |
| 18 | Built-in Filter | ASTM A240 TP 304 (Stainless Steel) |
| 19 | Body Gasket | Stainless Steel Reinforced Laminated Graphite |
| 20 | Main Valve Return Spring | BS 2056 302 S 26 (Stainless Steel) |
| 21 | Main Valve Plug | BS 970 431 S 29 (Stainless Steel) |
| 22 | Main Valve Seat | BS 970 431 S 29 (Stainless Steel) |
| 23 | Balance Sensing Tube | BS 2871 C 106 ½H (Copper) |
| 24 | Main Valve Fastening Nut | BS 3692 Gr. 8 (Steel) |
| 24 | Main Valve Fastening Bolt | BS 4439 Gr. 8.8 (Steel), M10×25mm for DN15-DN32, M12×30mm for DN40-DN50 |
| 25 | Main Diaphragm | BS 2870 PB 102 1980 (Phosphor Bronze) |
| 26 | Main Diaphragm Disc | BS 2872 CZ 122 (Brass) |
| 27 | Push Rod | BS 970 431 S 29 (Stainless Steel) |
| 28 | Lock Nut | BS 3692 Gr. 8 (Steel) |
| 29 | Control Tube and Fittings | Brass and Copper |
| 30 | Plug (BSP) | Steel |
DP27E Specific Component Materials
| No. | Component Name | Material Standard |
|---|---|---|
| 43 | Pilot Assembly and Seal | - |
| 44 | Control Tube Assembly | Brass and Copper |
| 45 | Retaining Ring | 1.4116 (Stainless Steel) |
| 46 | Retaining Plate | BS 970 431 S 29 (Stainless Steel) |
| 47 | Seal | Turcon T40/AQISI 302 (Elastomer Composite/Stainless Steel) |
| 48 | Pilot Valve Seat | BS 970 431 S 29 (Stainless Steel) + PTFE |
| 49 | Solenoid Valve Assembly | - |

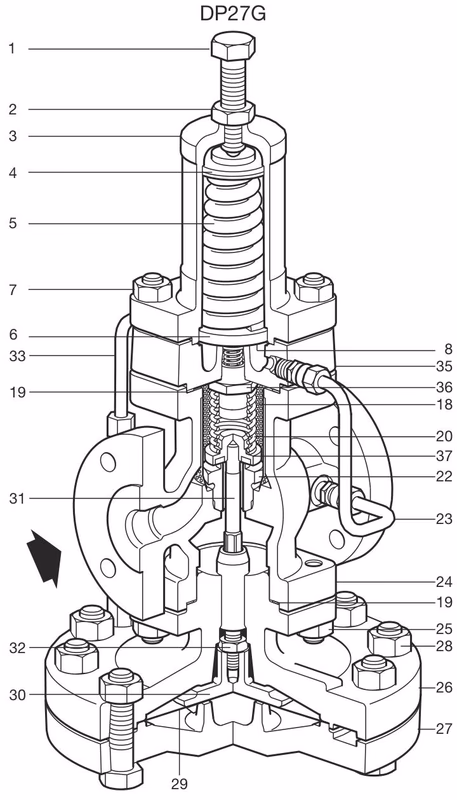

DP27G, DP27GY Specific Component Materials
| No. | Component Name | Material Standard |
|---|---|---|
| 35 | Pilot Chamber | DIN 1693 GGG 40.3 (Ductile Iron) |
| 36 | Pilot Assembly | Brass/PTFE/Nitrile Rubber |
| 37 | Main Valve Assembly | BS 970 431 S29 (Stainless Steel)/Nitrile Rubber |
DP27R Specific Component Materials
| No. | Component Name | Material Standard |
|---|---|---|
| 38 | Pressure Control Chamber Top Cover | DIN 1693 GGG 40.3 (Ductile Iron) |
| 39 | Pressure Control Air Fitting | Brass |
| 40 | Spring | BS 2056 Gr. 302 S26 (Stainless Steel) |
| 41 | Pressure Control Chamber Gasket | BS 2815 Gr. A (Stainless Steel Reinforced Laminated Graphite) |
| 42 | Spring Plate | BS 2872 CZ 122 (Brass) |
Solenoid Valve Technical Parameters (DP27E)
| Parameter | Specification |
|---|---|
| Voltage | 220/240±10% Vac or 110/220±10% Vac (other models can be customized) |
| Frequency | 50/60 Hz |
| Power Consumption | Instantaneous 45 VA, Continuous 23 VA |
Discharge Description
Steam Discharge
- Flow Rate Basis: With external sensing tube installed (flow rate reduced when not installed, maximum reduction of 30% at very low downstream pressure)
- Superheated Steam Correction: Correction factor 0.95 at 55°C superheat, 0.9 at 100°C superheat
Compressed Air Discharge
- Flow Unit: dm³/s at standard conditions
- Selection Method: Determine appropriate port size based on upstream pressure, downstream pressure, and required flow rate through discharge charts
Installation and Maintenance
Installation Notes
- Install on horizontal pipeline according to flow direction arrow on valve body
- Install steam separator and filter upstream of the pressure reducing valve to protect valve components
- For detailed installation steps, refer to the Installation and Maintenance Guide provided with the product (IM-P100-05 for DP27G/DP27GY; IM-P470-03 for DP27E/DP27R/DP27Y)

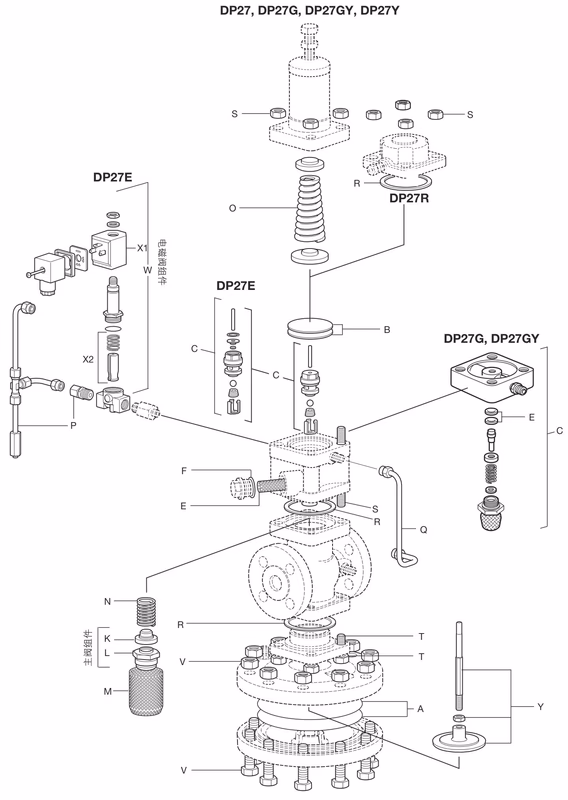

Spare Parts Details
Common Spare Parts (Applicable to Full Series or Multiple Models)
| Spare Part Name | Specification Description | Notes |
|---|---|---|
| Service Kit | Includes all core spare parts marked with * | - |
| *Main Diaphragm | 2 pieces/set | - |
| *Pilot Diaphragm | 2 pieces/set | - |
| *Pilot Assembly | Includes filter element (DP27G/DP27GY includes pilot chamber assembly) | - |
| *Pilot Filter Element | 3 pieces/set | Models E, F |
| Pilot Filter Element Gasket | PTFE material, 6 pieces/set | DP27G/DP27GY only |
| Main Valve Assembly | - | Models K, L |
| *Built-in Filter | - | Model M |
| Main Valve Return Spring | - | Model N |
| Pressure Regulating Spring (Not for DP27R) | 0.2-17 bar | For DP27, DP27E, DP27G, Model O |
| Pressure Regulating Spring | 0.2-3 bar | For DP27Y, DP27GY, Model P |
| *Control Tube Assembly | - | Model Q |
| *Balance Tube Assembly | - | Model R |
| *Body Gasket | 3 pieces/set | Model S |
| Main Valve Return Spring | 4 pieces/set | Model T |
| Pilot Chamber Fastening Bolt and Nut | 4 pieces/set | - |
| Main Valve Body Fastening Bolt and Nut | 10 pieces/set (DN15-DN32), 12 pieces/set (DN40-DN50) | - |
| Diaphragm Chamber Fastening Bolt and Nut | - | Model V |
| Push Rod and Main Diaphragm Disc | - | Model Y |
DP27E Specific Spare Parts
| Spare Part Name | Model |
|---|---|
| Solenoid Valve Assembly | W |
| Coil | X1 |
| Plug and Seat Assembly | X2 |
Spare Parts Interchangeability Notes
- Some spare parts support cross-port size interchangeability (e.g., ½" and ¾" threaded valves share main diaphragm)
- All spare parts are interchangeable with DP27T, parts marked with † are interchangeable with 37D temperature control valve
- Note: DP27G/DP27GY soft seal pilot and main valve assemblies are not compatible with some common spare parts, and DN15LC model spare parts are not available
Ordering Instructions
- When ordering products, specify model, port size, connection type, spring range, and required certificates
- When ordering spare parts, specify pressure reducing valve model, port size, and spare part name/model
- Example: 1-Main Valve Plug and Seat Assembly for 1" Spirax Sarco DP27 Pressure Reducing Valve
