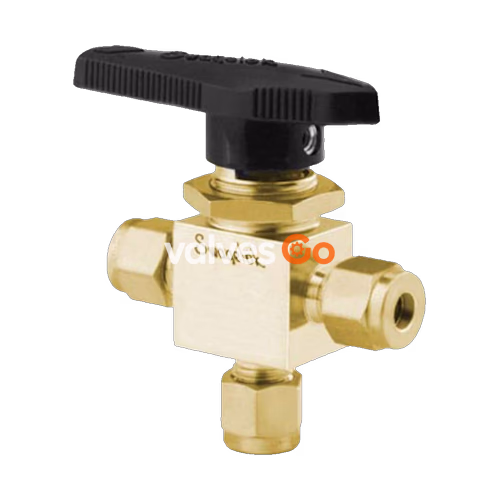

Swagelok B-43XS4 40 series one-piece instrumentation ball valve ensures reliable on-off service through its reliable three-way switching flow pattern.

Specifications

Specification	Value
Ball/Stem Material	Brass
Body Material	Brass
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1, 2, 3 Size	1/4 in.
Connection 1, 2, 3 Type	Swagelok® Tube Fitting
CV Maximum	0.9
Flow Path	Standard
Flow Pattern	3-Way, Switching
Handle Color	Black
Handle Style	Lever
Low Emissions Certified	Yes
Orifice	0.187 in / 4.7 mm
Packing Material	PTFE
Ring/Disc Material	PTFE-Coated Brass
Room Temperature Pressure Rating	2500 PSIG @ 100°F / 172 BAR @ 37°C
Service Class	General
Testing	Testing according to WS-22

3-Way Switching

The original 40 series and the 40G series valves provide various actuator, flow path, and handle options. They are designed for ease of packing adjustment while remaining inline. The 40 series one-piece instrumentation ball valves have operated reliably in multiple industries for nearly 40 years. Swagelok has improved the valve structure and developed innovative assembly processes resulting in the 40G series, which features higher operating temperature ratings, greater thermal cycling capability, and reduced potential for leakage.

Interchangeability

Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
