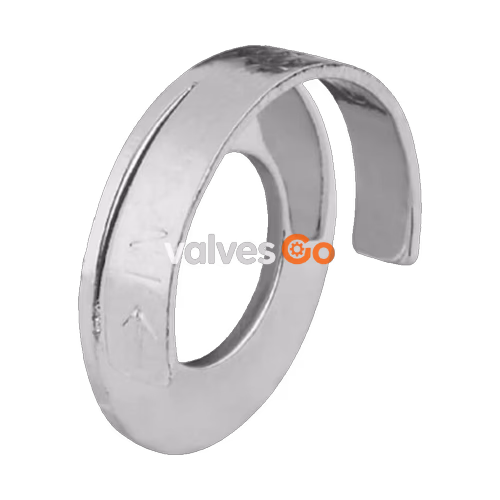

Swagelok NI-4-VCR-2-ZC-VS is a 1/4 in. unplated nickel VCR face seal fitting and side-load gasket (retainer style). This metal gasket provides consistent, high-integrity sealing for face seal fittings in ultra-high-purity, high-vacuum, and thermal cycling applications.
Specifications
| Specification | Value |
|---|---|
| Body Material | Nickel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Feature | Unplated Nickel |
| Flow Restrictor | No |
| Gasket Size | 1/4 in. |
| eClass (4.1) | 37030708 |
| eClass (5.1.4) | 37920191 |
| eClass (6.0) | 23071500 |
| eClass (6.1) | 37029290 |
| eClass (10.1) | 37029290 |
| UNSPSC (4.03) | 31181500 |
| UNSPSC (10.0) | 31181503 |
| UNSPSC (11.0501) | 31181503 |
| UNSPSC (13.0601) | 40183107 |
| UNSPSC (15.1) | 40183107 |
| UNSPSC (17.1001) | 31401704 |
Interchangeability
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
