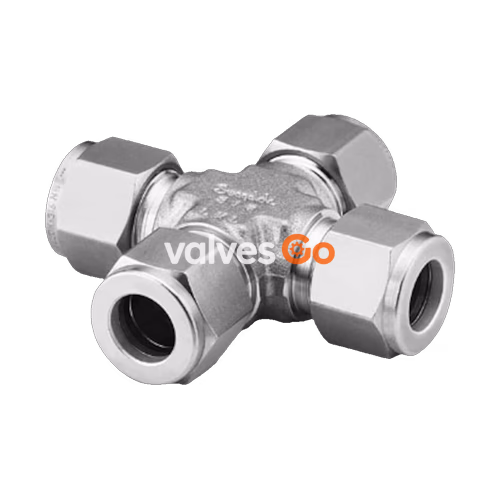

Swagelok SS-400-4 is a stainless steel union cross tube fitting designed for 1/4 in. outside diameter tubing. It supports four-way tube connections with precise alignment and leak-tight performance, making it ideal for complex routing in compact fluid system designs.
WARNING
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
Specifications
| Specification | Value |
|---|---|
| Body Material | 316 Stainless Steel |
| Bored Through | No |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Connection 3 Size | 1/4 in. |
| Connection 3 Type | Swagelok® Tube Fitting |
| Connection 4 Size | 1/4 in. |
| Connection 4 Type | Swagelok® Tube Fitting |
| Flow Restrictor | No |
| eClass (4.1) | 37020717 |
| eClass (5.1.4) | 37020590 |
| eClass (6.0) | 37200107 |
| eClass (6.1) | 37020590 |
| eClass (10.1) | 37020590 |
| UNSPSC (4.03) | 40141714 |
| UNSPSC (10.0) | 40142606 |
| UNSPSC (11.0501) | 40142614 |
| UNSPSC (13.0601) | 40183111 |
| UNSPSC (15.1) | 40183111 |
| UNSPSC (17.1001) | 40183111 |
