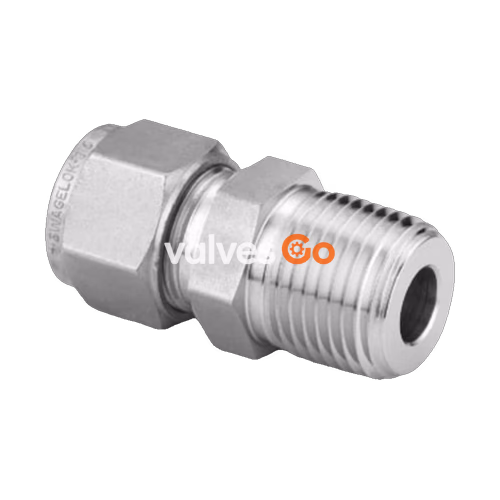

Swagelok SS-8M0-1-4BT stainless steel bored-through male connector enables secure connections between tubing and threaded ports, making it ideal for critical fluid systems. It offers strong tube grip and high vibration resistance for excellent sealing performance. The reliability of Swagelok tube fittings has been proven by over 65 years of successful experience and is documented in numerous published test reports, including testing under extreme conditions.

Specifications

Specification	Value
Body Material	316 Stainless Steel
Bored Through	Yes
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	8 mm
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/4 in.
Connection 2 Type	Male NPT
Flow Restrictor	No
eClass (4.1)	37030703
eClass (5.1.4)	37020590
eClass (6.0)	37020590
eClass (6.1)	37020590
eClass (10.1)	37020590
UNSPSC (4.03)	40141720
UNSPSC (10.0)	40142613
UNSPSC (11.0501)	40142613
UNSPSC (13.0601)	40183110
UNSPSC (15.1)	40183110
UNSPSC (17.1001)	40183110

WARNING

Do not mix or interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers. The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
