PN16

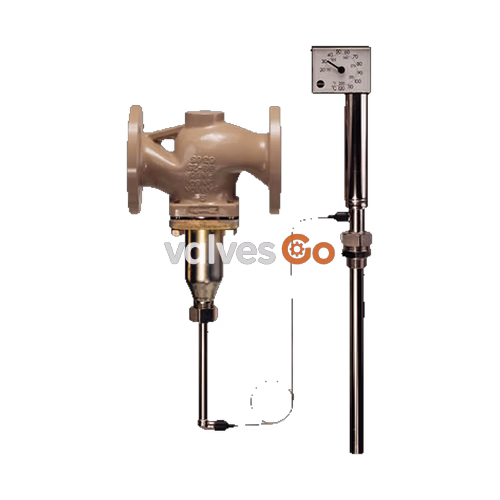

TLV TC2 balanced self-acting single seat globe valve type temperature regulator. Suitable for steam heating of liquids, air and non-hazardous gases.
Features
- Self-acting design simplifies installation by eliminating the need for power supply and instrument signal lines.
- No external energy required, allowing for ease of installation in remote areas or potentially flammable atmospheres.
- Robust design minimizes maintenance.
- Reliable long-life spring mechanism protects the sensor from overheat damage.
- Wide set point range and simple set point adjustment provide easy operation.
- Pressure-balancing bellows provides improved flow and differential pressure performance compared to unbalanced type.
Specifications
Valve
| Size (DN) | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| Kvs Value (DIN) | 4 | 6.3 | 8 | 16 | 20 | 32 |
| Cv Value (UK) | 3.9 | 6.1 | 7.8 | 15.6 | 19.4 | 31 |
| Cv Value (US) | 4.7 | 7.4 | 9.4 | 19 | 23 | 37 |
| Leakage Rate | < 0.05% | < 0.05% | < 0.05% | < 0.05% | < 0.05% | < 0.05% |
Leakage Rate: < 0.05% of Cv (Kvs) value
| Item | Cast Iron | Ductile Cast Iron | Cast Steel |
|---|---|---|---|
| DIN EN Material Number | EN-JL 1040 | EN-JS 1049 | 1.0619 |
| ASTM/AISI Equivalent | A126 Cl.B | A395 | A216 Gr. WCB |
| Connection | Flanged DIN 2501 PN 16** | Flanged DIN 2501 PN 25 | Flanged DIN 2501 PN 40** |
| Maximum Operating Pressure PMO (barg) | 13 | 16*** | 16*** |
| Maximum Allowable Differential Pressure ΔPMX (bar) | 13 | 16*** | 16*** |
| Maximum Operating Temperature TMO (°C) | 200 | 220 | 220 |
Note: 1 bar = 0.1 MPa. ** ASME standards available for cast iron and cast steel body. *** Higher pressures possible with optional isolation piece.
Thermostat
| Model | TC-A |
|---|---|
| Suitable for Immersion in | Liquids compatible with sensor material |
| Set Point Range | 20 °C to 120 °C |
| Maximum Temperature at Sensor | Set Point Value + 100 °C |
| Ambient Temperature Limits at Adjustment Head | -40 °C to 80 °C |
| Capillary Tube Length (m) | 5 |
Pressure Shell Design Conditions (Not Operating Conditions)
- Maximum Allowable Pressure (PMA): 13 barg (Cast Iron), 16 barg (Ductile Cast Iron & Cast Steel)
- Maximum Allowable Temperature (TMA): 200 °C (Cast Iron), 220 °C (Ductile Cast Iron & Cast Steel)
WARNING
To avoid abnormal operation, accidents or serious injury, DO NOT use this product outside of the specification range. Local regulations may restrict the use of this product to below the conditions quoted.

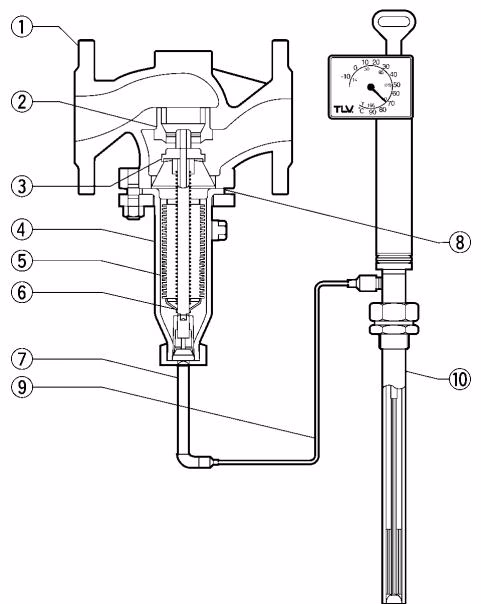

Materials
| No. | Description | Material | DIN EN | ASTM/AISI |
|---|---|---|---|---|
| 1 | Body | As specified above | - | - |
| 2 | Seat | Stainless Steel | 1.4006 or 1.4104 | AISI410 or AISI430F |
| 3 | Plug | Stainless Steel | 1.4006 or 1.4104 | AISI410 or AISI430F |
| 4 | Bellows Housing | Carbon Steel | 1.0425 | A515 Gr.60 |
| 5 | Balancing Bellows | Stainless Steel | 1.4571 | A240 S31635 |
| 6 | Plug Stem | Stainless Steel | 1.4301 | AISI304 |
| 7 | Operating Element | Nickel-plated Brass | - | - |
| 8 | Body Gasket | Graphite on Metal Core | - | - |
| 9 | Capillary Tube | Nickel-plated Copper | - | - |
| 10 | Temperature Sensor | Nickel-plated Bronze | - | - |
Dimensions
TC2 Flanged (mm)
| DN | L (PN16) | L (PN25/40) | H | H1 | Weight (kg) |
|---|---|---|---|---|---|
| 15 | 130 | 130 | 515 | 225 | 5.0 |
| 20 | 150 | 150 | 515 | 225 | 5.5 |
| 25 | 160 | 160 | 515 | 225 | 6.5 |
| 32 | 180 | 180 | 515 | 225 | 13 |
| 40 | 200 | 200 | 515 | 225 | 13.5 |
| 50 | 230 | 230 | 515 | 225 | 16 |
Approximate Weight for DIN 2501 PN 16, add 15% for PN 25/40.
Thermostat
| φD | T | T1 | G1 | Weight (kg) |
|---|---|---|---|---|
| 25 | 290 | 310 | 1 inch | 3.2 |
Capacities (kg/h)
For a pressure drop of 10% P1 across the valve (Coil and steam trap follow the regulator)
| P1 (barg) | DN 15 | DN 20 | DN 25 | DN 32 | DN 40 | DN 50 |
|---|---|---|---|---|---|---|
| 1 | 40 | 64 | 81 | 162 | 203 | 325 |
| 2 | 70 | 110 | 140 | 280 | 351 | 561 |
| 3 | 99 | 156 | 198 | 396 | 495 | 792 |
| 4 | 127 | 201 | 255 | 511 | 638 | 1022 |
| 5 | 156 | 246 | 312 | 625 | 781 | 1250 |
| 6 | 184 | 291 | 369 | 739 | 924 | 1478 |
| 7 | 213 | 336 | 426 | 853 | 1066 | 1706 |
| 8 | 241 | 380 | 483 | 967 | 1209 | 1934 |
For a pressure drop of 50% P1 across the valve (Direct steam injection system follows the regulator)
| P1 (barg) | DN 15 | DN 20 | DN 25 | DN 32 | DN 40 | DN 50 |
|---|---|---|---|---|---|---|
| 1 | 113 | 178 | 227 | 454 | 568 | 908 |
| 2 | 170 | 268 | 340 | 681 | 852 | 1363 |
| 3 | 227 | 357 | 454 | 908 | 1136 | 1817 |
| 4 | 284 | 447 | 568 | 1136 | 1420 | 2272 |
| 5 | 340 | 536 | 681 | 1363 | 1704 | 2726 |
| 6 | 397 | 626 | 795 | 1590 | 1988 | 3180 |
| 7 | 454 | 715 | 908 | 1817 | 2272 | 3635 |
| 8 | 511 | 805 | 1022 | 2044 | 2555 | 4088 |
Options
| Item | Options |
|---|---|
| Isolation Piece | Allows ductile cast iron valve for use up to 19 barg and cast steel valve up to 25 barg |
| Thermostat (Model) | Suitable for immersion in liquid with separate set point adjustment (TC-B) Suitable for immersion in air or gas with set point adjustment at sensor (TC-C) Suitable for immersion in air or gas with separate set point adjustment (TC-D) All models available in stainless steel construction |
| Set Point Range | 50 °C to 150 °C 150 °C to 250 °C (separate set point adjustment only) |
| Capillary Tube Length | 10m, 15m |
| Capillary Tube Material | Stainless steel construction |
