Burkert 20011445 Type 0330 is a direct-acting, media-separated pivoted armature solenoid valve. It features maintenance-free pivoted armature technology and a vibration-proof, block screwed coil system. The specific model 20011445 is configured as a 2/2-way normally closed (Circuit Function A) valve with a Polypropylene (PP) body and EPDM seal. Because the coil system is separated from the medium by a diaphragm, this valve is especially suitable for critical and aggressive media such as alkalis and acids to medium concentrations.

Technical Data

Attribute	Value
Model	20011445 (Type 0330)
Circuit Function	A - normally closed - inlet port 1 (P/NC)
Port Connection	G 1/4 Internal thread
Orifice Size	5 mm
Kv Value (Water)	0.4 m³/h
Pressure Range	-1 to 0.5 bar (Vacuum version)
Voltage	24 V DC
Body Material	PP (Polypropylene)
Seal Material	EPDM (Ethylene-propylene-diene rubber)
Medium Temperature	-30 °C to +80 °C
Ambient Temperature	Max. +55 °C
Degree of Protection	IP65 (with suitable connector)
Electrical Connection	Wire cable (500 mm length)

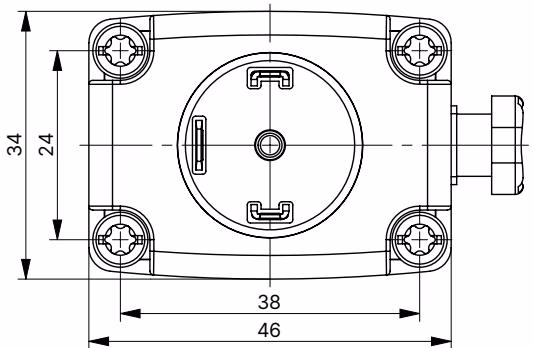

Dimensions (Plastic Body)

D	L
G 1/4	12 mm

INFO

The device can be attached via the existing holes on the bottom side. The hole pattern is 38x24. For plastic bodies, use either self-tapping screws or a body with metric thread inserts. The maximum screw-in depth of 10 mm must be observed.

Installation and Safety

• Installation Position: As required, preferably with the actuator upright.
• Dirt Trap: For safe operation of the solenoid valve, a dirt trap (≤ 500 µm) must be installed before the valve inlet.
• Duty Cycle: For PP body variants, 100% continuous operation is possible for the 5 W variant. For the 8 W variant, a 40% duty cycle (60% intermittent operation) in 30 min applies.

WARNING

Caution! Risk of breakage

• Do not use the coil as a lever arm.
• Use PTFE tape as a seal material.
• Determine the maximum screw-in depth of the connection threads as these do not comply with any standard.

DANGER

Risk of injury from high pressure and electric shock

• Before working on equipment or device, switch off the pressure and deaerate/drain lines.
• Before working on the system or device, switch off the power supply and secure against reactivation.
