BURKERT Type 3361 electromotive 2-way globe control valve is the solution when it comes to control tasks under demanding operating conditions. The electromotive actuator with ball screw positions the control cone with highest precision. A unique feature is its high positioning speed up to 6 mm/s that reacts almost delay-free to process signals and that can be varied according to customer demands. Pressure variations or shocks in the medium are not transferred to the valve position.

Each flow optimised valve body can be equipped with up to 5 different valve seats for a precise adaptation according to customer needs. If necessary, the safety position can be approached by an optional energy storage in case of power failure. Actuator and valve are adapted perfectly to each other with closed design and robust surface. This ensures the hygienic requirements of fast and residue-free cleaning. Harsh environmental conditions are no problem for the Type 3361 because of the degree of protection IP65/IP67 and its high impact and vibration resistance.

General Technical Data

Note

• AG2: actuator size 2 with a nominal force of 1300 or 2500 N for seat size 3…50
• AG3: actuator size 3 with a nominal force of 7700 or 10000 N for seat size 40…100

Product properties
Design	Globe control valve
Nominal diameter	DN 10...DN 100, NPS 3/8...4
Safety setting in case of power failure	With energy storage SAFEPOS energy-pack: open, closed or freely programmable position. Without energy storage: blocked in last position
Flow direction	Against closing direction (below seat)
Controller variant	Positioner or process controller (option)

Performance data
Operating pressure	0...25 bar(g), 40 bar(g) on request. Vacuum variant...- 0.9 bar(g) (optional)
Nominal pressure	PN 25/PN 40 (DIN EN 1333), Class 150 (DIN EN 1759)
Kvs value	0.1...140 m³/h
Flow characteristic	Equal percentage, linear (on request)
Seat leakage	Class III, IV and VI (DIN EN 60534-4)
Closing time	AG2: 3.3...6.6 s / AG3: 8.7...12.0 s
Theoretical rangeability	Up to 50:1
Travel speed	6 mm/s (AG2 1300 N), 4 mm/s (AG2 2500 N), 3 mm/s (AG3 7700/10000 N)

Electrical data
Operating voltage	24 V DC ± 10 % (maximum residual ripple 10 %)
Protection class	III (DIN EN 61140)
Duty cycle	100 %

Approvals and Conformities

• Explosion protection: Optional ATEX / IECEx (Zone 2/22).
• North America: Optional Actuators UL Listed for the USA and Canada.
• Drinking water: Optional suitability for use in drinking water applications (UBA).
• Foods and beverages/Hygiene: FDA, USP, EC Regulation 1935/2004, China food GB Standards.
• Others: Suitability for oxygen, hydrogen, and TA Luft.

Materials

Note

The Type 3361 globe control valve is supplied with different port connections (flange, thread, weld end and clamp connections). These connections are not shown. They correspond to the valve body material.

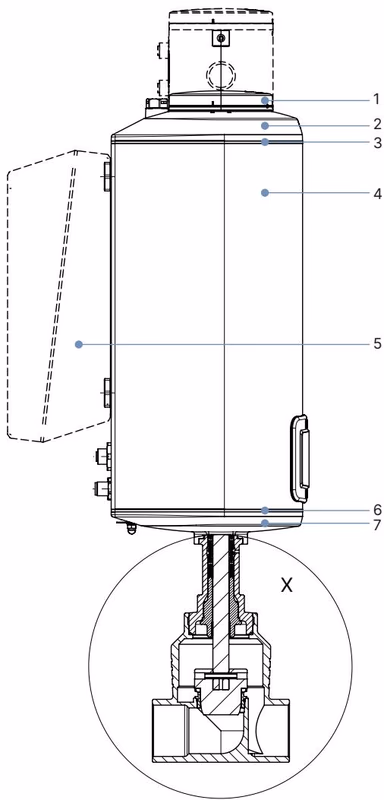

Actuator AG2

No.	Component	Material
1	Display housing/blind cover/gateway housing	PPS (standard), stainless steel 1.4301 (for ATEX/IECEx)
2	Actuator cover	PPS
3	Seal	EPDM
4	Actuator housing	Powder-coated aluminium
6	Seal	EPDM
7	Actuator base	PPS

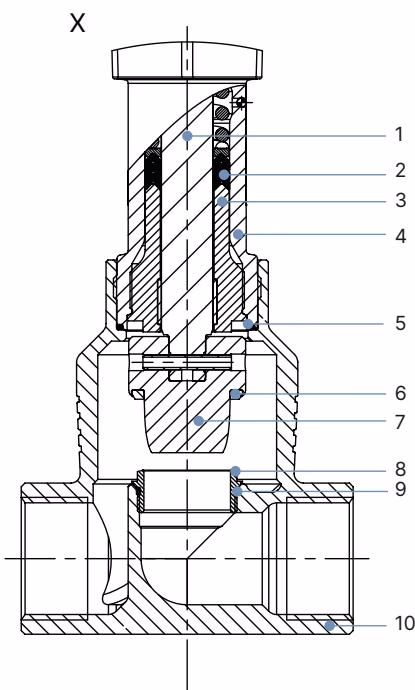

Valve Body

No.	Component	Material
1	Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
2	Spindle seal	PTFE V-seals (filled) with spring compensation
3	Spindle guide	Stainless steel 1.4404 (316L)
4	Packing gland tube	Stainless steel 1.4401 (316)
5	Seal valve body	Graphite or PTFE
6	Seat seal	Stainless steel 1.4571 (optionally hardened), PTFE or PEEK seal washer
7	Control cone	Stainless steel 1.4571 (optionally hardened)
8	Valve seat	Stainless steel 1.4571 (optionally hardened)
9	O-ring valve seat	EPDM or PTFE
10	Valve body	Stainless steel CF3M

Dimensions

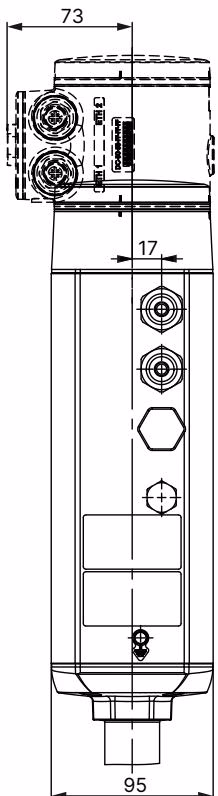

Actuator AG2

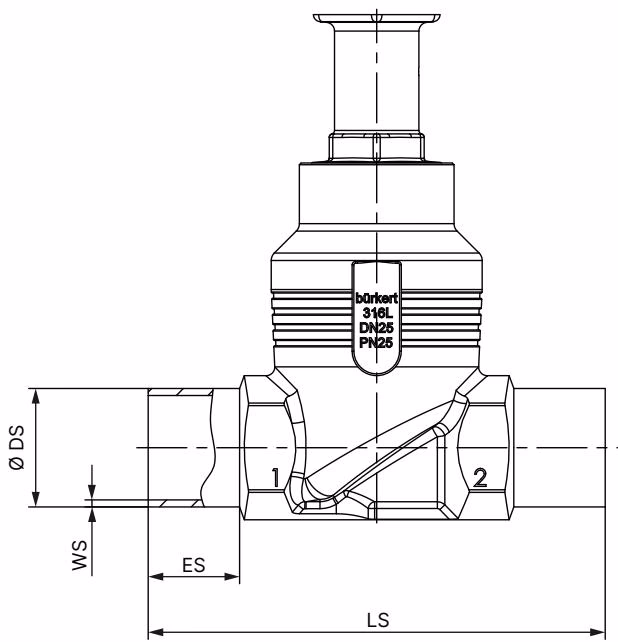

Body with Welded Connection

Nominal diameter	ES	LS	ASME BPE / DIN 11866 series C
NPS	∅ DS	WS	∅ DS / WS
1/2	20	90	12.7 / 1.65
3/4	20	90	19.05 / 1.65
1	20	100	25.4 / 1.65
1 1/2	26	140	38.1 / 1.65
2	26	150	50.8 / 1.65
2 1/2	26	175	63.5 / 1.65
3	26	210	76.2 / 1.65
4	26	260	101.6 / 2.11

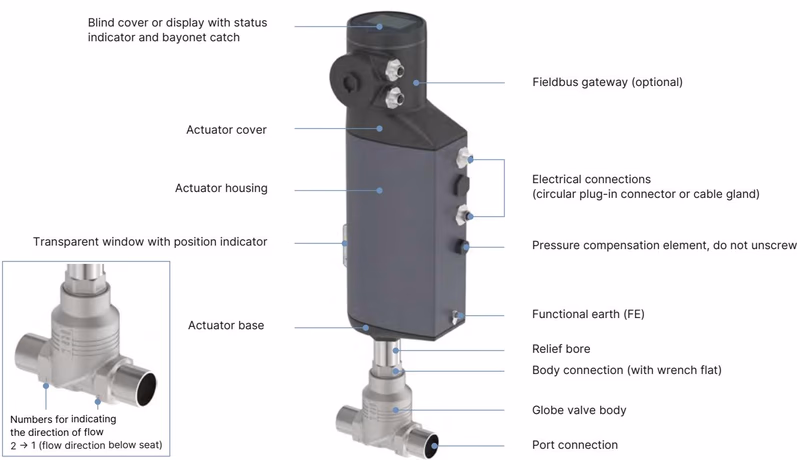

Product Design and Assembly

The electromotive linear drive consists of a brushless DC motor, a gear and a spindle system that transfers the force to the closing element. The integrated electronics are controlled either by standard signals or via a fieldbus (digital). A positioner and a process controller are available as controller variants.
