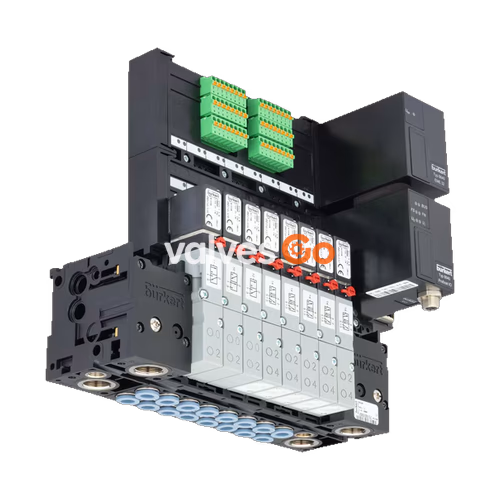

BURKERT 20069232 Type 8640 modular valve island for pneumatics is designed to solve diverse and complex control problems due to its systematic modular construction and combination of pneumatic and electrical interfaces. By putting together a row of pneumatic modules with different numbers of valves, multiple valve functionalities may be realized on one valve unit. The specific model 20069232 is a 9-bank valve block featuring a G 1/2 pressure port, G 1/4 working ports, and operates within a pressure range of 3 to 8 bar.

Electrical connectivity is achieved by either fieldbus interfaces, common connection (parallel connection technique), or multipin interfaces. Bodies and connection modules are made of high-quality plastic (polyamide) and are easy to assemble by means of the built-in snap connectors.

Circuit Functions

Symbol	Description
	Circuit function C (CF C) 3/2-way solenoid valve Servo-controlled, with manual override Normally closed
	Circuit function D (CF D) 3/2-way solenoid valve Servo-controlled, with manual override Normally open
	Circuit function N (CF N) 5/3-way solenoid valve With manual override In middle position ports 2 and 4 exhausted

Product Design and Assembly

Electronics

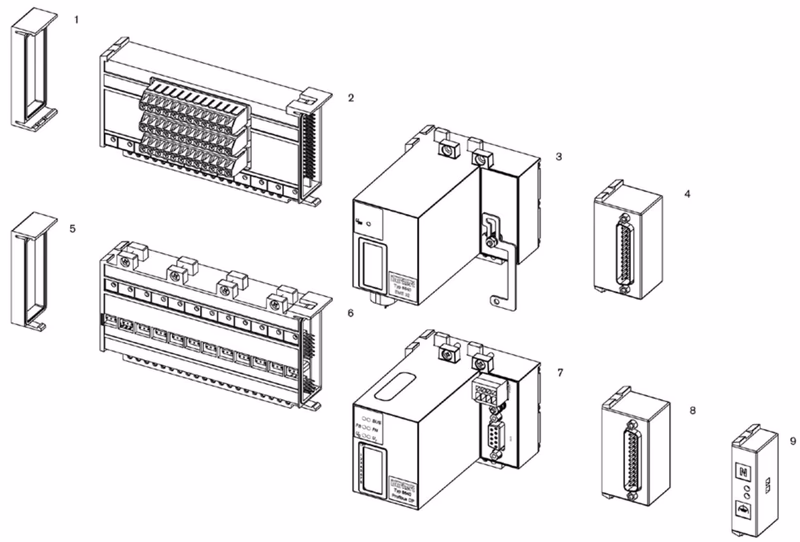

No.	Element
1	Electrical end module, left
2	Terminal module for feedback
3	Extension module for electrical inputs
4	Multi-pin digital inputs (initiators)
5	Electrical end module, left
6	Basic electrical module standard
7	Fieldbus module
8	Multipin valve outputs
9	Common connection module

Installation

WARNING

Risk of injury due to high pressure and escaping medium. Switch off the pressure before working on the device or system. Vent or drain the pipes.

Valve Block Installation

Standard rail installation

• Hook the valve block with the upper groove into the standard rail (35 x 15 or 35 x 7.5 EN 50022).
• Snap the lower clamping pieces into the standard rail.
• Tighten the screws on the clamping pieces.

Wall installation

• Fasten the valve block directly to the wall with M4 screws.

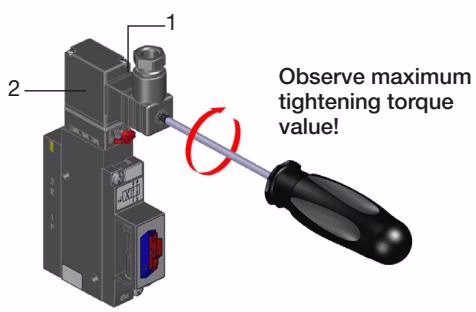

Electrical Installation of Cable Plugs

• Screw on the cable plug, observing the maximum tightening torque of 0.3 Nm.
• Check that the seal is correctly fitted.
• Connect the protective conductor and check electrical continuity between coil and housing.

Maintenance and Troubleshooting

Fault	Possible cause	Remedy
Valves do not switch	No operating voltage or operating voltage too low	Check electrical connection. Ensure operating voltage according to type label.
	Manual override not in zero position	Bring manual override to zero position.
	Pressure supply insufficient or not available	Set up large-volume pressure supply. Minimum operating pressure ≥ 2 bar.
Valves switch with a delay or blow off at the exhaust ports	Pressure supply insufficient or not available	Set up large-volume pressure supply. Minimum operating pressure ≥ 2 bar.
	Valves are not in the home position (de-energised) during pressure build-up	Apply pressure to the valve block before the valves are switched.
	Insufficient ventilation of the exhaust air ducts due to too small or dirty silencers (back pressure)	Use suitably sized silencers or expansion vessels. Clean the dirty silencers.
	Impurities or foreign matter in the pilot or pneumatic valve	Apply pulsed pressure to the exhaust air ducts to blow out the impurities. Install a new pilot or pneumatic valve.
Leaky valve blocks	Missing or crushed O-rings between the modules	Identify leak or missing seals.
	Missing or incorrectly positioned flat seals between valve and base plate	Insert missing seals or replace damaged seals.
