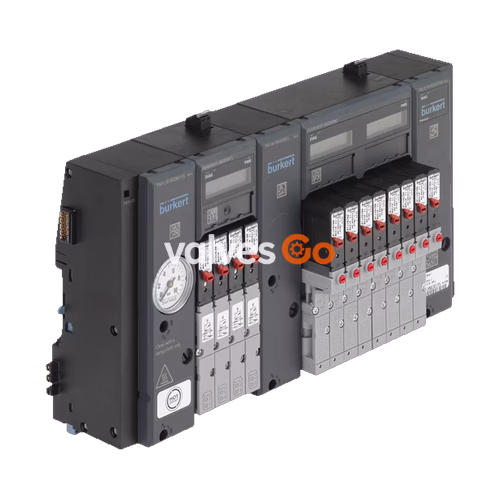

Burkert Type 8647 AirLINE SP is a modular, electropneumatic automation system consisting of connection and valve modules. It has been especially developed for safe and complete integration into the decentralised peripheral system “SIMATIC ET 200SP” and “SIMATIC ET 200SP HA” from Siemens. Pneumatically operated process valves, pneumatic cylinders, or other pneumatic components can be connected to the pneumatic outputs.

If the pneumatic components are installed with position feedbacks, the position of the actuated pneumatic components can be displayed on the associated pilot valve. This can save time on start-up and maintenance.

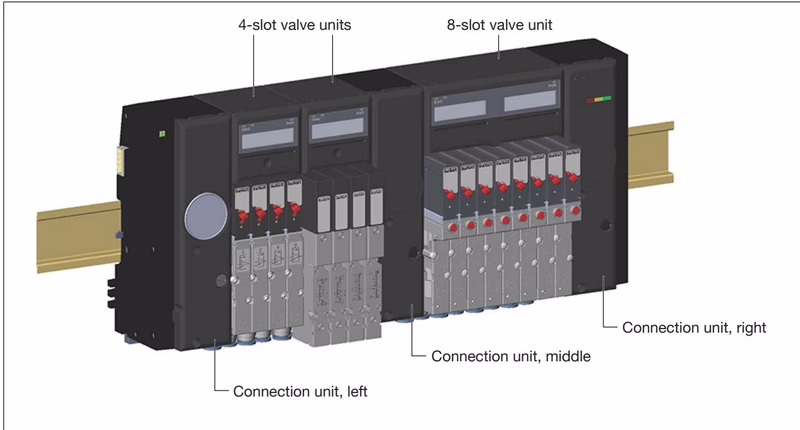

System Overview

Combining modules from the distributed Siemens I/O systems SIMATIC ET 200SP/SP HA with the valve block AirLINE SP Type 8647 provides an integrated system of electronic and pneumatic components.

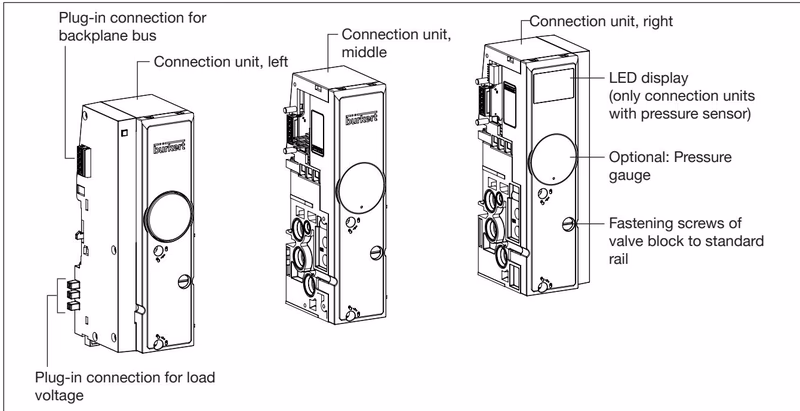

Connection Units

The pneumatic supply and deaeration of the valve block occurs via connection units. Furthermore, the valve block is fixed to the standard rail via the connection units. Connection units can be optionally equipped with a pressure gauge or electronic pressure sensor.

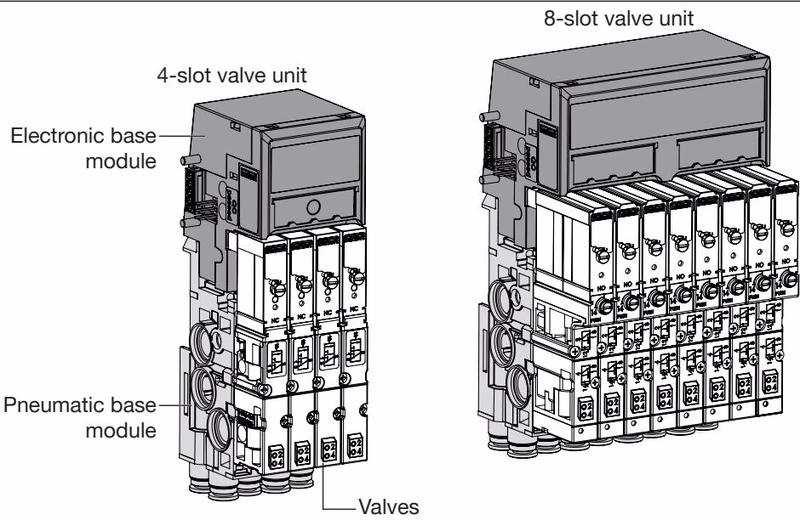

Valve Units

Valve units convert the electrical control signals of the interface module into pneumatic output signals and provide the pneumatic outputs. There are valve units with four valve slots or with eight valve slots.

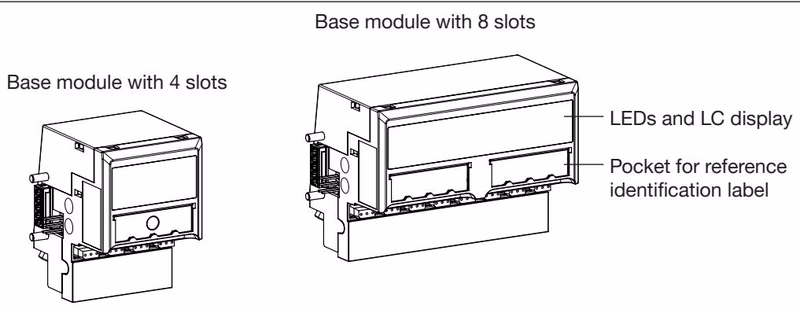

Electronic Base Module (PQ module) The electronic base module contains the electrical plug-in connections for the valves, the valve driving electronics, and the visual status indicators (LEDs and a graphics LCD).

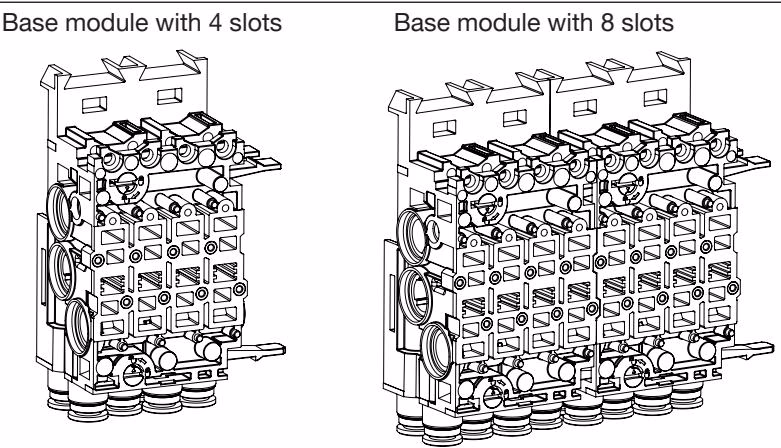

Pneumatic Base Module The pneumatic base module supports the valves, ensures the pneumatic supply and deaeration of the valves, and provides the pneumatic outputs.

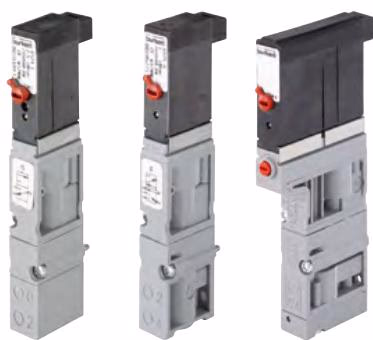

Solenoid Valves for Pneumatics

Type 6524 and Type 6525

The pilot valve Type 6524 (single and double valve) and Type 6525 (single valve) consist of a pilot flipper solenoid valve Type 6144 and a pneumatic seat valve. The circuit function allows switching of high pressures with low power consumption and short switching times.

Type 0460

The solenoid valve Type 0460 consists of a pneumatic valve body fitted with a double coil pilot valve. The principle allows switching of high pressures together with low power consumption and fast switching times.

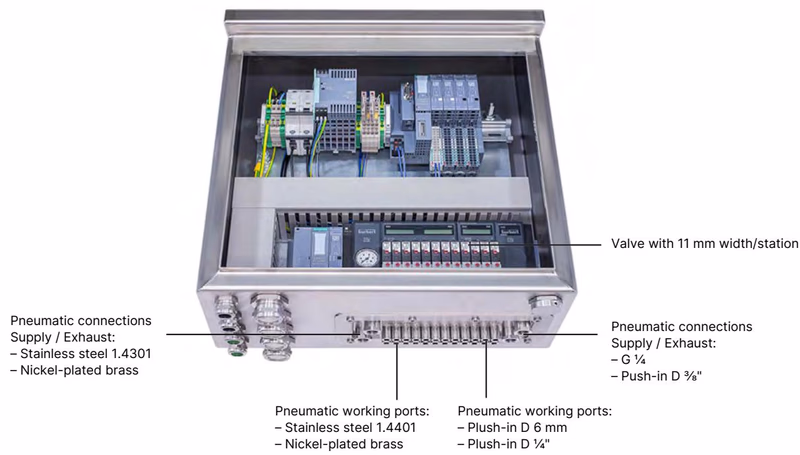

AirLINE Quick

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Use in Safety-Related Applications

Safety Instructions

The electrical shutdown of valve Types 6524 and 6525 causes them to return to the rest position. The selection of the appropriate circuit function of the valve depends on the application and is the responsibility of the user.

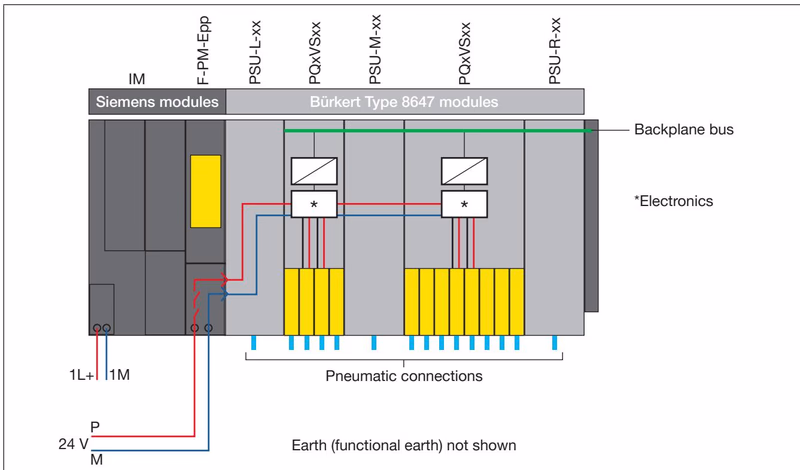

System setup with the F-PM-E power module from Siemens If a valve block Type 8647 is operated in the potential group of an F-PM-E 24VDC/8A PPM ST power module of the ET 200SP, the load voltage of the valve block can be shut down by the power module for safety reasons. This variant has been documented and assessed in terms of safety.

General Technical Data

Product properties	Type 0460, Type 6524, Type 6525
Material
Body	PA (polyamide), PC (polycarbonate) (valves: PA, PPS or aluminum)
Seal	NBR (valves: FPM, NBR and PUR)
Width per station	11 mm
Number of valve slots	For single valves: max. 64. For impulse and double valves: max. 32
Maximum number of valve functions	64 on one valve block
Pressure range	Vac...10 bar (with UL approval Vac...8 bar)
Flow rate QNn value air	200...300 l/min
Operating voltage	24 V DC (±10 %)
Nominal power of each valve	For single valves: 0.8 W. For impulse and double valves: 2× 0.8 W
Operating medium	Oil-free or lubricated compressed dry air (5 μm filter recommended)
Degree of protection	IP20, IP65 in closed control cabinets
