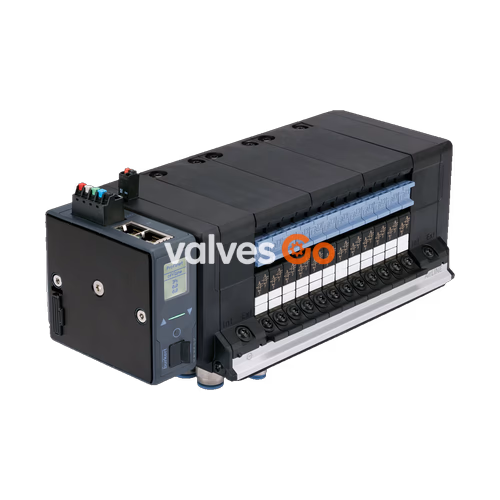

The Burkert Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller, enabling a fast overview of the plant status. The hardware is optimised for installation at the bottom of the control cabinet, though installation on a standard rail is also possible. Key pneumatic functions ensure increased process reliability, such as check valves in the exhaust air ducts that prevent unplanned actuation due to pressure peaks.

General Technical Data

Product properties	Description
Material	Body: PA (polyamide) Seal: NBR and PUR
Width per station	11 mm
Manual override	Latching, spring return (optional: lockable)
Number of valve slots	Max. 24
Maximum number of valve functions	Max. 48
Pneumatic intermediate supply	Optional for the variants with 16, 20 and 24 valve slots
Pressure range	Vacuum to 10 bar
External supply air	3 to 10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Operating voltage	24 V DC (±10% tolerance)
Nominal power of each valve	0.7 W (0.175 W after power reduction)
Digital input	Max. 48
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Degree of protection	IP20, IP65 in closed control cabinets
Ambient temperature	-10 °C to +55 °C

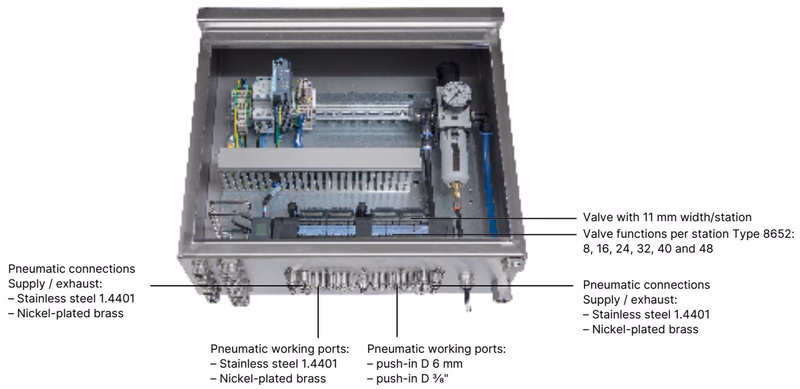

AirLINE Quick

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

• Reduced space requirement in the control cabinet
• This makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Approvals and Conformities

In accordance with the Declaration of Conformity, the product is compliant with the EU Directives. Type Rating (NEMA 250): Type 4X in closed enclosures (8652 with stainless steel variant).

Explosion Protection:

• ATEX: BVS 20 ATEX E 031 U (II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc)
• IECEx: IECEx BVS 20.0024 U (Ex ec IIC Gc / Ex tc IIIC Dc)

INFO

The products with Ex approval are suitable for import and use for hazardous applications in China (CCC Optional).

Dimensions

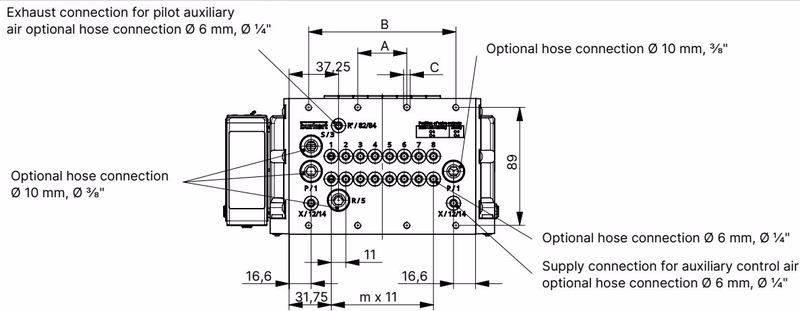

Variant 4-, 8- and 12-fold

Variant	A	B	C	m	n
4-fold	66	-	4 x M5	3	1
8-fold	35	111	8 x M5	7	2
12-fold	77	154	10 x M5	11	3

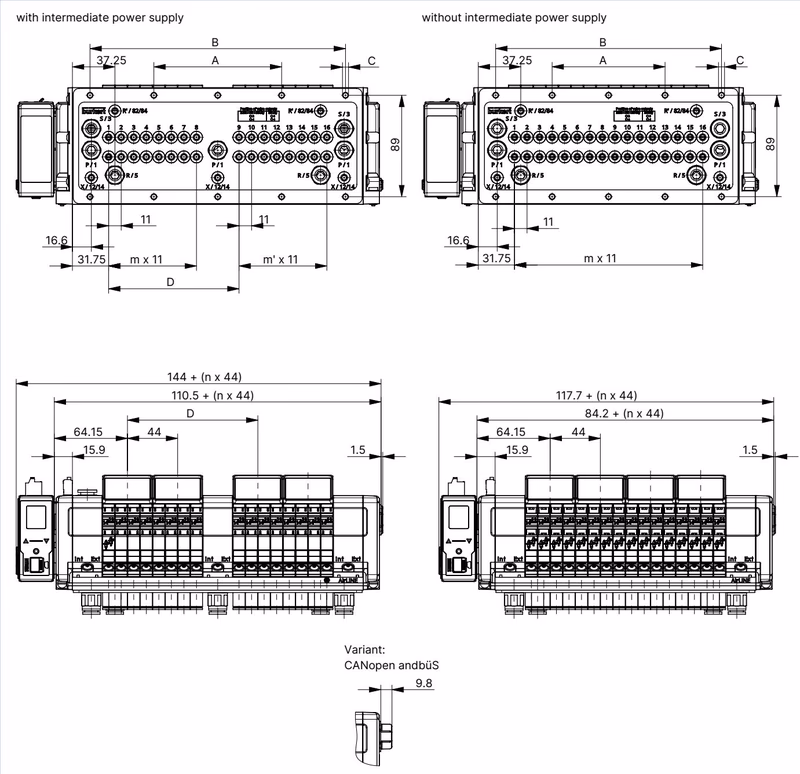

Variant 16-, 20- and 24-fold

Variant	A	B	C	D	m	m'	n
16-fold with intermediate supply	112	224	10 x M5	114.3	7	7	4
20-fold with intermediate supply	134	268	10 x M5	158.3	11	7	5
24-fold with intermediate supply	156	312	10 x M5	158.3	11	11	6

Product Connections

Power supply for communication and displays

Connect 5-pin spring-loaded terminal according to the pin assignment. Possible cable cross-section: ≤ 1.5 mm².

Pin	Colour	Assignment
1	Red	24 V DC
2	White	CAN_H (büS connection)
3	Green	SHIELDING
4	Blue	CAN_L (büS connection)
5	Black	GND

Power supply for pneumatic valves

The interface plate has a 2-pin spring-loaded terminal to which the pneumatic valves' power supply is connected.

Clip	Colour	Assignment
1	Red	AUX 24 V
2	Black	GND

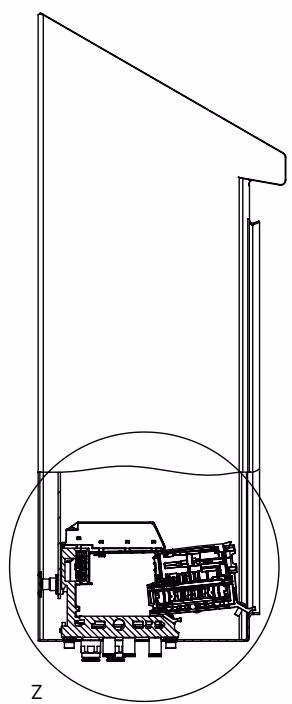

Product Installation

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

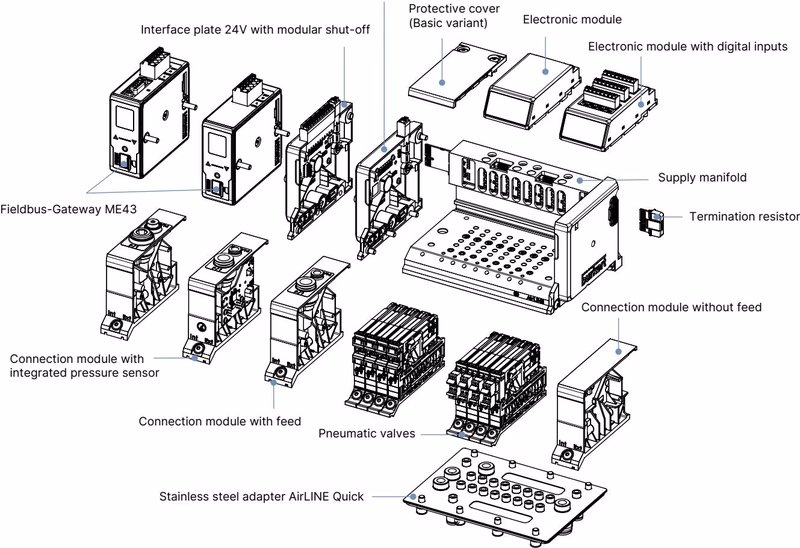

Product Design and Assembly

Electronic module with digital inputs (optional)

The digital inputs are supplied (24 V) by the electronic module. Current is limited to maximum 30 mA per digital input. Standard 3-wire sensors and 2-wire sensors with voltages between 10…30 V as well as mechanical limit switches can be used.

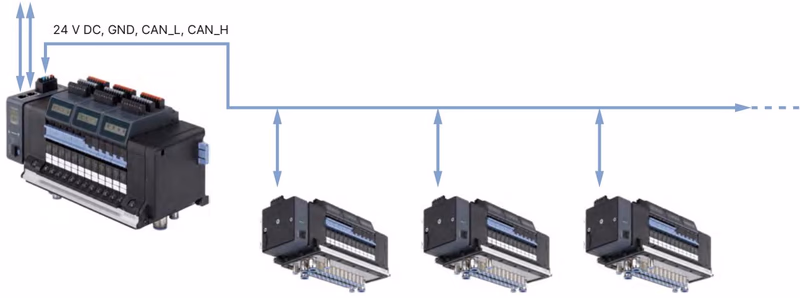

Example Configuration

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.

Safety Instructions for Hazardous Locations

Danger from Voltage

• Before working on the device or system, switch off the power supply. Secure against reactivation.
• In an existing explosive atmosphere, the connection terminals for 24 V power supply, SIA, EVS, and digital inputs may only be plugged in or unplugged when de-energized.
• The use of the Hot Swap function is prohibited in an existing explosive atmosphere.

Danger of Explosion from Electrostatic Charge

If there is a sudden discharge from electrostatically charged devices or persons, there is a risk of explosion in the potentially explosive area.

• Take appropriate measures to ensure that no electrostatic charges can occur in the potentially explosive area.
• Only clean the device surface by wiping it gently with a damp or antistatic cloth.
