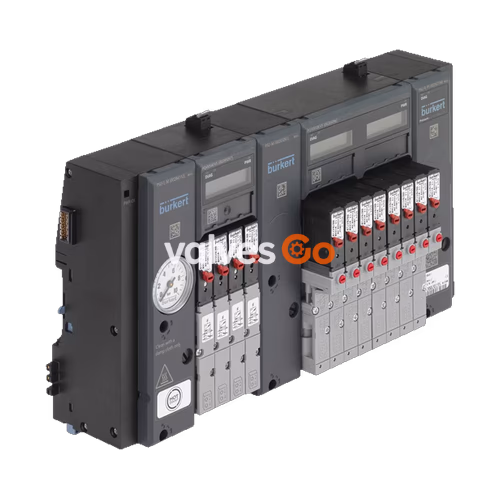

The BURKERT Type 8647 AirLINE SP is a modular, electropneumatic automation system consisting of connection and valve modules. It has been especially developed for safe and complete integration into the decentralised peripheral systems "SIMATIC ET 200SP" and "SIMATIC ET 200SP HA" from Siemens. Pneumatically operated process valves, pneumatic cylinders, or other pneumatic components can be connected to the pneumatic outputs.

If the pneumatic components are installed with position feedbacks, the position of the actuated pneumatic components can be displayed on the associated pilot valve. This can save time on start-up and maintenance.

General Technical Data

Product properties	Type 0460, Type 6524, Type 6525
Body material	PA (polyamide), PC (polycarbonate) (valves: PA, PPS or aluminum)
Seal material	NBR (valves: FPM, NBR and PUR)
Width per station	11 mm
Manual override	Standard
Number of valve slots	For single valves: max. 64. For impulse and double valves: max. 32
Pressure range	Vac...10 bar (with UL approval Vac...8 bar)
Operating voltage	24 V DC (±10 % voltage tolerance)
Protection class	III according to DIN EN 61140, VDE 0140
Degree of protection	IP20, IP65 in closed control cabinets
Communication interface	PROFIBUS DP, PROFINET IO

Solenoid Valves Type 6524 and Type 6525

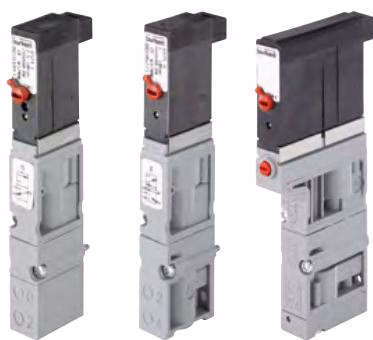

The pilot valves Type 6524 (single and double valve) and Type 6525 (single valve) consist of a pilot flipper solenoid valve Type 6144 and a pneumatic seat valve. The circuit function allows switching of high pressures with low power consumption and short switching times.

• Circuit function: 3/2 and 5/2-way valve (Type 6524/6525), 2 × 3/2-way valve (Type 6524)
• Flow rate: 300 l/min
• Nominal power: 0.8 W (2 × 0.8 W with reduction of power for double valve)

Solenoid Valves Type 0460

The solenoid valve Type 0460 consists of a pneumatic valve body fitted with a double coil pilot valve. The principle allows switching of high pressures together with low power consumption and fast switching times.

• Circuit function: 5/2-way and 5/3-way bistable
• Flow rate: 200 l/min
• Nominal power: 1 W (0.5 W for impulse variant)

AirLINE Quick

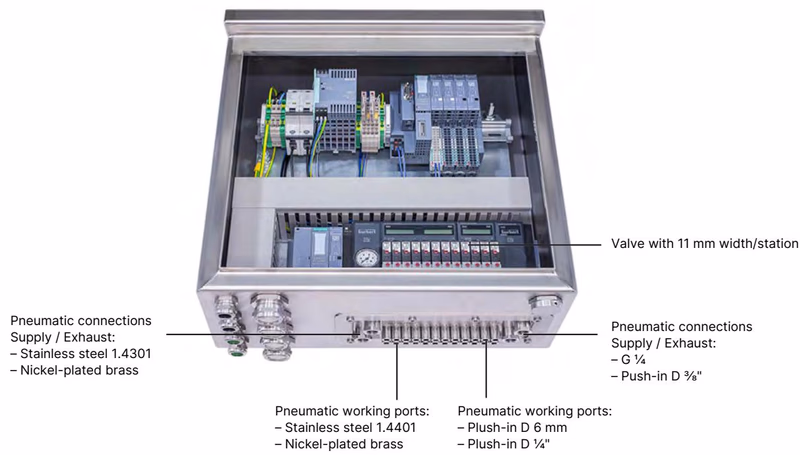

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages

• Reduced space requirement in the control cabinet
• This makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Approvals and Conformities

• Explosion protection: ATEX (BVS 18 ATEX E 078 XII 3G Ex ec IIC T4 Gc), IECEx (IEC Ex BVS 18.0068 X Ex ec IIC T4 Gc)
• North America: UL Listed for the USA and Canada (UL 61010-1, CAN/CSA-C22.2 No. 61010-1)
