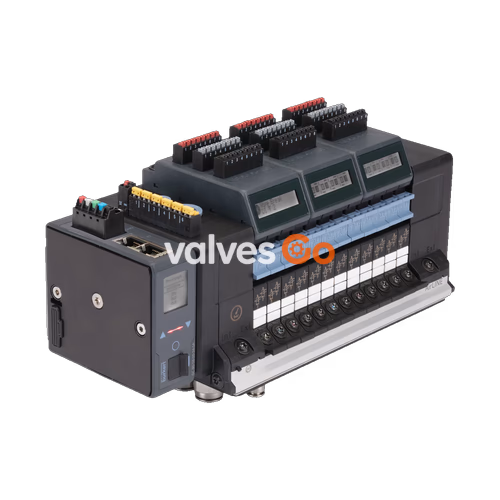

BURKERT 20114066 Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller, enabling a fast overview of the plant status.
The hardware is optimised for installation at the bottom of the control cabinet. Installation on a standard rail is also possible. Key pneumatic functions ensure increased process reliability. For instance, check valves in the exhaust air ducts make sure there is no unplanned actuation due to pressure peaks. It supports safety-related shut-off of valves and offers higher plant availability with PROFINET S2 (system redundancy).
General Technical Data
| Product properties | Description |
|---|---|
| Material | |
| Body | PA (polyamide) |
| Seal | NBR and PUR |
| Width per station | 11 mm |
| Manual override | Latching, spring return (optional: lockable) |
| Number of valve slots | Max. 24 |
| Maximum number of valve functions | Max. 48 |
| Pneumatic intermediate supply | Optional for the variants with 16, 20 and 24 valve slots |
| Performance data | |
| Pressure data | Overpressure to atmospheric pressure |
| Pressure range | Vac...10 bar |
| External supply air (auxiliary pilot air) | 3...10 bar |
| Flow rate QNn value air | 310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure) |
| Flow rate QNn value air with Hot Swap | Flow reduced by approx. 3% |
| Nominal operating mode | Continuous operation (100 % duty cycle) |
| Electrical data | |
| Operating voltage | 24 V DC (Voltage tolerance ±10%) |
| Residual ripple (at DC) | 1 Vss |
| Nominal power of each valve | 0.7 W (0.175 W after power reduction) |
| Nominal current of each valve | 29 mA (10 mA after power reduction) |
| Digital input | Max. 48 |
| Protection class | III according to DIN EN 61140, VDE 0140 |
| Medium data | |
| Operating medium | Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended) |
| Compressed air quality | ISO 8573-1: 2010, Class 7.4.4 |
| Environment and installation | |
| Installation position | Any |
| Storage temperature | -20 °C...+60 °C |
| Ambient temperature | -10 °C...+55 °C |
| Degree of protection | IP20, IP65 in closed control cabinets |
AirLINE Quick

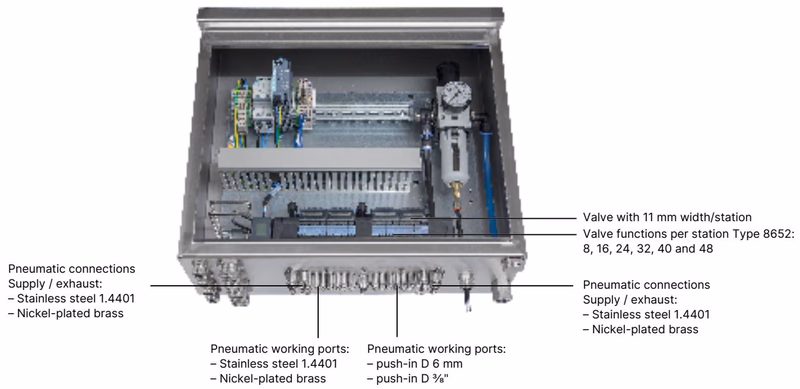

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.
Advantages:
- Reduced space requirement in the control cabinet
- This makes it possible to use more compact control cabinets
- Reduced installation effort due to hose connections directly at the bottom of the control cabinet
| Product properties | Description |
|---|---|
| Material | |
| AirLINE Quick Adapter Plate | Stainless steel 1.4301, Anodised aluminium |
| Pneumatic connection | Stainless steel 1.4401, Nickel-plated brass |
| Valve functions per station | 8, 16, 24, 32, 40 and 48 |
| Product connections | |
| Pneumatic Supply / Exhaust | Push-in D 10 mm, 3/8" |
| Pneumatic working ports | Push-in D 6 mm, 1/4" |
Circuit Functions
Standard Functions
| Circuit function | Description |
|---|---|
| C (CF C) | 3/2-way solenoid valve, Servo-controlled, with manual override, Normally closed |
| C (CF C) | 2 × 3/2-way solenoid valve, Servo-controlled, with manual override, Normally closed |
| D (CF D) | 2 × 3/2-way solenoid valve, Servo-controlled, with manual override, Normally open |
| H (CF H) | 5/2-way solenoid valve, Servo-controlled, with manual override. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure. |
| L (CF L) | 5/3-way solenoid valve, With manual override, In middle position all ports locked |
| M (CF M) | 5/3-way solenoid valve, Servo-controlled, with manual override, In middle position ports 2 and 4 ventilated |
| N (CF N) | 5/3-way solenoid valve, With manual override, In middle position ports 2 and 4 exhausted |
| Z (CF Z) | 5/2-way solenoid valve, Impulse variant with 2 coils and manual override. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure. |
SIA Variant (for safety-related shut-off)
| Circuit function | Description |
|---|---|
| C (CF C) | 3/2-way solenoid valve, Servo-controlled, Normally closed |
| C (CF C) | 2 × 3/2-way solenoid valve, Servo-controlled, Normally closed |
| H (CF H) | 5/2-way solenoid valve, Servo-controlled. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure. |
| L (CF L) | 5/3-way solenoid valve, Servo-controlled, In middle position all ports locked |
Approvals and Conformities
In accordance with the Declaration of Conformity, the product is compliant with the EU Directives. Type Rating (NEMA 250): Type 4X in closed enclosures (8652 with stainless steel variant).
Explosion Protection:
- ATEX: BVS 20 ATEX E 031 U, II 3G Ex ec IIC Gc, II 3D Ex tc IIIC Dc
- IECEx: IECEx BVS 20.0024 U, Ex ec IIC Gc, Ex tc IIIC Dc
North America (USA/Canada):
- Optional: UL Listed for the USA and Canada (UL 61010-1, CAN/CSA-C22.2 No. 61010-1)
- Optional: UL Recognized for Hazardous Locations (Class I, Zone 2, AEx ec IIC Gc / Class II, Zone 22, AEx tc IIIC Dc / Class I, Division 2, Group A, B, C, D / Class II, III, Division 2, Group F, G)
Others:
- Optional: China Compulsory Certification (CCC) for hazardous applications in China.
Dimensions

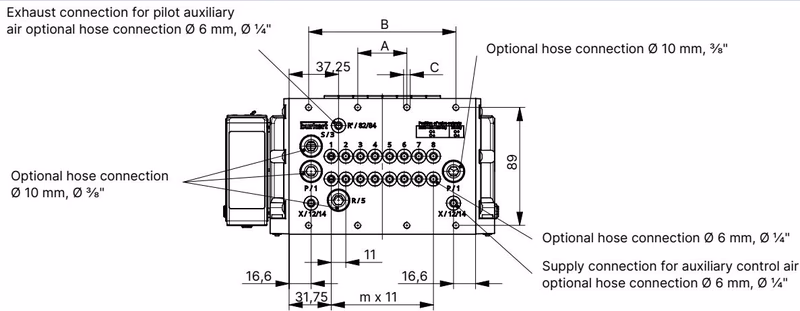

Variant 4-, 8- and 12-fold
| Variant | A | B | C | m | n |
|---|---|---|---|---|---|
| 4-fold | 66 | - | 4 x M5 | 3 | 1 |
| 8-fold | 35 | 111 | 8 x M5 | 7 | 2 |
| 12-fold | 77 | 154 | 10 x M5 | 11 | 3 |

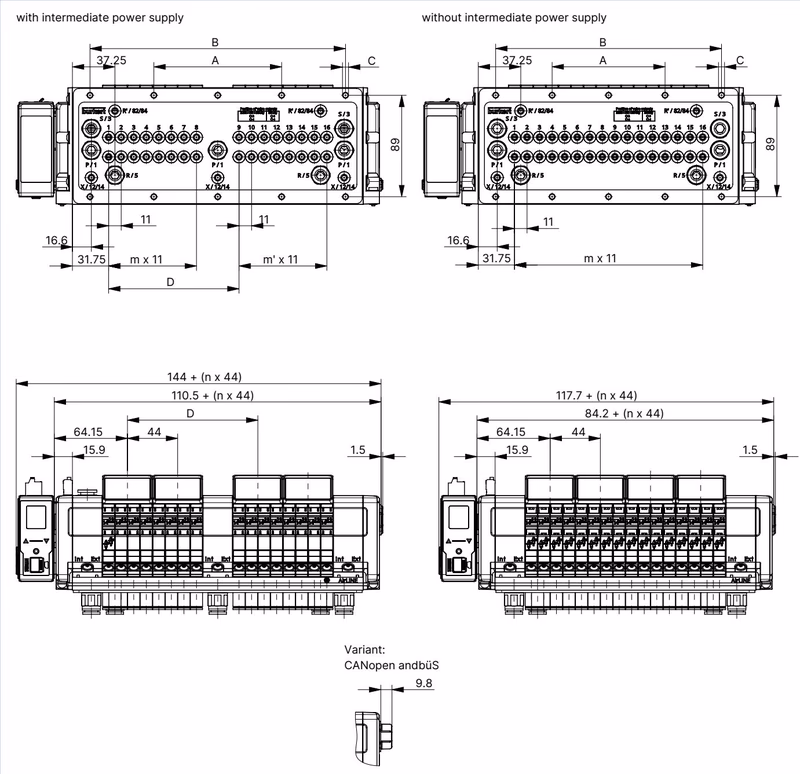

Variant 16-, 20- and 24-fold
| Variant | A | B | C | D | m | m' | n |
|---|---|---|---|---|---|---|---|
| 16-fold with intermediate supply | 112 | 224 | 10 x M5 | 114.3 | 7 | 7 | 4 |
| 20-fold with intermediate supply | 134 | 268 | 10 x M5 | 158.3 | 11 | 7 | 5 |
| 24-fold with intermediate supply | 156 | 312 | 10 x M5 | 158.3 | 11 | 11 | 6 |
| 16-fold without intermediate supply | 99 | 198 | 10 x M5 | - | 15 | - | 4 |
| 20-fold without intermediate supply | 121 | 242 | 10 x M5 | - | 19 | - | 5 |
| 24-fold without intermediate supply | 143 | 286 | 10 x M5 | - | 23 | - | 6 |
Product Connections
Power Supply for Communication and Displays
INFO
Connect 5-pin spring-loaded terminal according to the pin assignment. Possible cable cross-section: ≤ 1.5 mm².
| Spring-loaded terminal 5-pin | Colour | Assignment |
|---|---|---|
| Pin 1 | Red | 24 V DC |
| Pin 2 | White | CAN_H (büS connection) |
| Pin 3 | Green | SHIELDING |
| Pin 4 | Blue | CAN_L (büS connection) |
| Pin 5 | Black | GND |
Power Supply for Pneumatic Valves
INFO
The interface plate has a 2-pin spring-loaded terminal to which the pneumatic valves' power supply is connected.
| Spring-loaded terminal 2-pin | Colour | Assignment |
|---|---|---|
| Clip 1 | Red | AUX 24 V |
| Clip 2 | Black | GND |
Product Installation

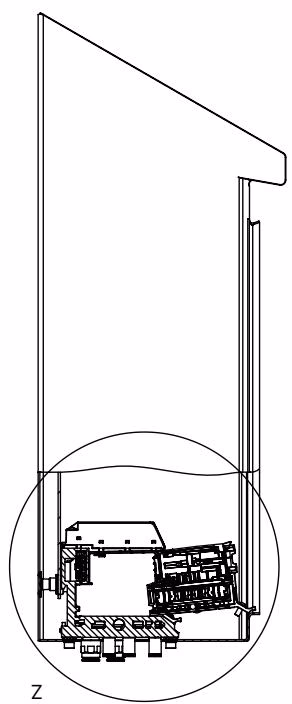

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.
Product Design and Assembly
Electronic Module with Digital Inputs (Optional)
The digital inputs are supplied (24 V) by the electronic module. Current is limited to maximum 30 mA per digital input. Standard 3-wire sensors and 2-wire sensors with voltages between 10...30 V as well as mechanical limit switches can be used.
| Possible data | 3-wire sensors | 2-wire sensors | Mechanical limit switches |
|---|---|---|---|
| Sensor actuated | X | X | X |
| Sensor not actuated | X | X | X |
| Short circuit | X | - | - |
| Wire break | - | X | - |
Valves Type 6534 for Safety-Related Shut-off, SIA Variant (Optional)
Type 6534 valves are equipped with additional connection terminals. A valve circuit can therefore be interrupted by an external switch. Manual override is not required for these valve variants. To use the shut-off function, connect the terminal to a potential-free contact (mechanical switch or relay).
Example Configuration

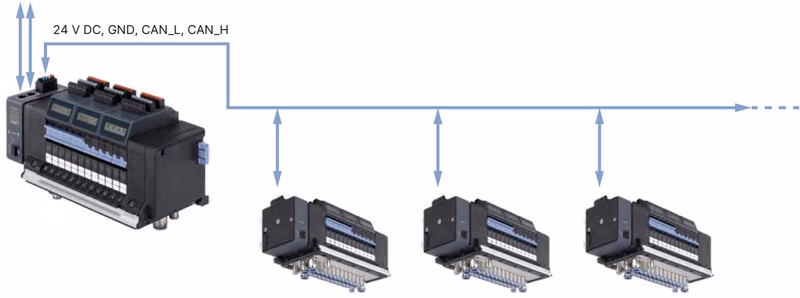

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.
Explosion Protection Safety Instructions
DANGER
Danger from electrical voltage in potentially explosive atmospheres:
- Disconnect the power supply before working on the device or system. Secure against reactivation.
- In an existing explosive atmosphere, the connection terminals for 24 V power supply, SIA, EVS, and digital inputs may only be plugged in or unplugged when de-energized.
- The use of the Hot Swap function is prohibited in an existing explosive atmosphere.
WARNING
Special conditions for safe use:
- For explosion protection type "ec", install the device in an enclosure that meets the requirements of EN/IEC 60079-0 and EN/IEC 60079-7 with a minimum protection degree of IP54.
- For explosion protection type "tc" (dust), install the device in an enclosure that meets the requirements of EN/IEC 60079-0 and EN/IEC 60079-31 with a minimum protection degree of IP6X.
- Only use the device in an area of at least pollution degree 2 as defined in IEC 60664-1.
- Ensure that the transient protection is set to a value not exceeding 140% of the peak rated voltage value at the supply terminals to the equipment.
