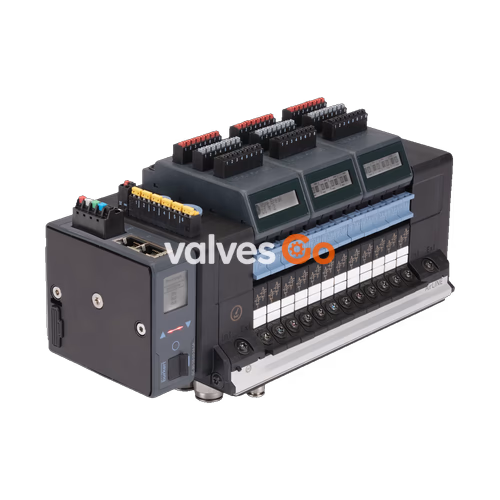

BURKERT Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller, enabling a fast overview of the plant status. The hardware is optimised for installation at the bottom of the control cabinet, though installation on a standard rail is also possible. Key pneumatic functions ensure increased process reliability, such as check valves in the exhaust air ducts that prevent unplanned actuation due to pressure peaks.

General Technical Data

Product properties
Body Material	PA (polyamide)
Seal Material	NBR and PUR
Width per station	11 mm
Manual override	Latching, spring return (optional: lockable)
Number of valve slots	Max. 24
Maximum number of valve functions	Max. 48
Pneumatic intermediate supply	Optional for the variants with 16, 20 and 24 valve slots
Pressure range	Vac...10 bar
External supply air	3...10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Flow rate with Hot Swap	Flow reduced by approx. 3%
Operating voltage	24 V DC (±10% tolerance)
Nominal power of each valve	0.7 W (0.175 W after power reduction)
Digital input	Max. 48
Protection class	III according to DIN EN 61140, VDE 0140
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Degree of protection	IP20, IP65 in closed control cabinets
Ambient temperature	-10 °C...+55 °C

AirLINE Quick

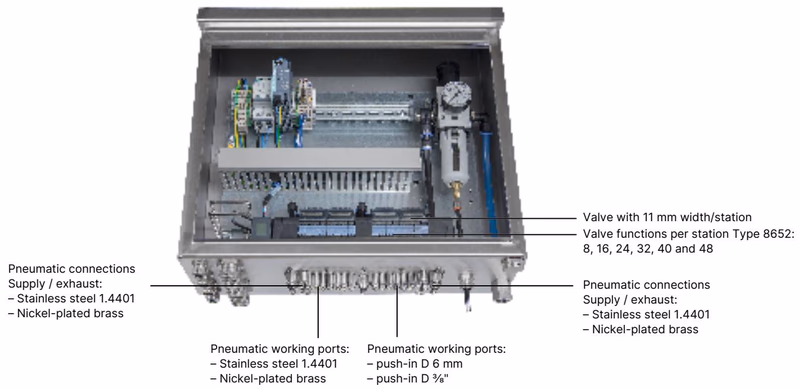

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

• Reduced space requirement in the control cabinet.
• Makes it possible to use more compact control cabinets.
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet.

Product properties
Adapter Plate Material	Stainless steel 1.4301 or Anodised aluminium
Pneumatic connection Material	Stainless steel 1.4401 or Nickel-plated brass
Valve functions per station	8, 16, 24, 32, 40 and 48
Pneumatic Supply / Exhaust	Push-in D 10 mm, 3/8"
Pneumatic working ports	Push-in D 6 mm, 1/4"

Circuit Functions

Standard Functions

Circuit function	Description
C (CF C)	3/2-way solenoid valve, servo-controlled, with manual override, normally closed
C (CF C)	2 × 3/2-way solenoid valve, servo-controlled, with manual override, normally closed
D (CF D)	2 × 3/2-way solenoid valve, servo-controlled, with manual override, normally open
H (CF H)	5/2-way solenoid valve, servo-controlled, with manual override. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure.
L (CF L)	5/3-way solenoid valve, with manual override. In middle position all ports locked
M (CF M)	5/3-way solenoid valve, servo-controlled, with manual override. In middle position ports 2 and 4 ventilated
N (CF N)	5/3-way solenoid valve, with manual override. In middle position ports 2 and 4 exhausted
Z (CF Z)	5/2-way solenoid valve, impulse variant with 2 coils and manual override. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure.

SIA Variant (for safety-related shut-off)

Circuit function	Description
C (CF C)	3/2-way solenoid valve, servo-controlled, normally closed
C (CF C)	2 × 3/2-way solenoid valve, servo-controlled, normally closed
H (CF H)	5/2-way solenoid valve, servo-controlled. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure.
L (CF L)	5/3-way solenoid valve, servo-controlled. In middle position all ports locked

Approvals and Conformities

• Explosion protection: Optional. As a category 3 device suitable for zone 2/22. ATEX: II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc. IECEx: Ex ec IIC Gc / Ex tc IIIC Dc.
• North America (USA/Canada): Optional UL Listed (UL 61010-1) and UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, II, III, Division 2).
• China Compulsory Certification (CCC): Optional. Products with Ex approval are suitable for import and use for hazardous applications in China.

Dimensions

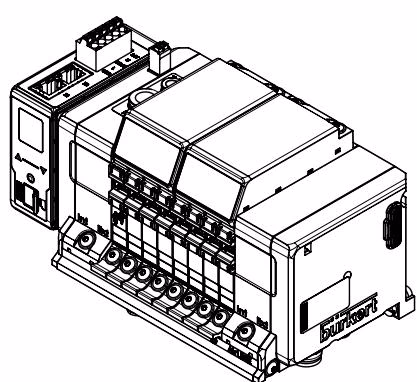

Variant 4-, 8- and 12-fold

Variant	A	B	C	m	n
4-fold	66	-	4 x M5	3	1
8-fold	35	111	8 x M5	7	2
12-fold	77	154	10 x M5	11	3

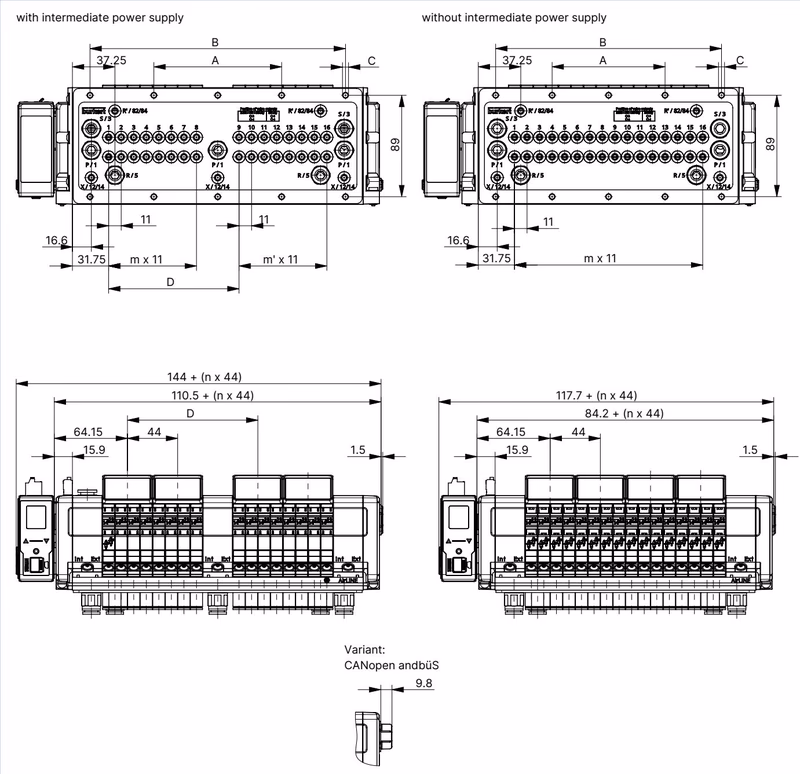

Variant 16-, 20- and 24-fold

Variant	A	B	C	D	m	m'	n
16-fold with intermediate supply	112	224	10 x M5	114.3	7	7	4
20-fold with intermediate supply	134	268	10 x M5	158.3	11	7	5
24-fold with intermediate supply	156	312	10 x M5	158.3	11	11	6
16-fold without intermediate supply	99	198	10 x M5	-	15	-	4
20-fold without intermediate supply	121	242	10 x M5	-	19	-	5
24-fold without intermediate supply	143	286	10 x M5	-	23	-	6

Product Connections

Power Supply

• Communication and displays: 5-pin spring-loaded terminal (24 V DC, CAN_H, SHIELDING, CAN_L, GND).
• Pneumatic valves: 2-pin spring-loaded terminal (AUX 24 V, GND). The interface plate has a dedicated terminal to which the pneumatic valves' power supply is connected.

Fieldbus Interface

Supports Industrial Ethernet (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) or PROFINET S2 via RJ45 interfaces, as well as PROFIBUS DP and CANopen/büS.

Product Installation

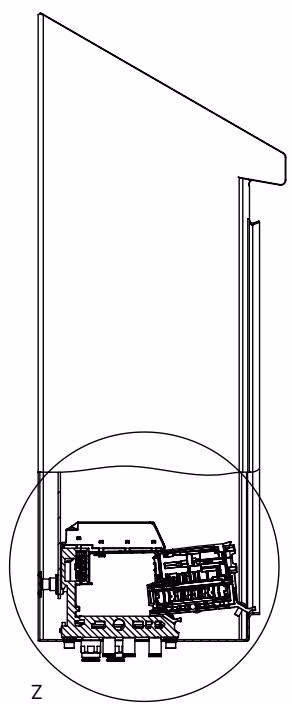

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

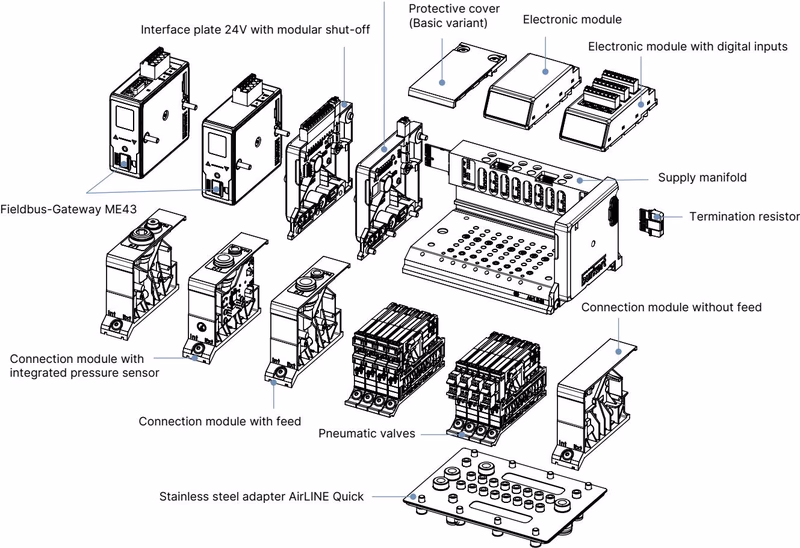

Product Design and Assembly

Electronic Module with Digital Inputs (Optional)

The digital inputs are supplied (24 V) by the electronic module. Current is limited to maximum 30 mA per digital input. Standard 3-wire sensors and 2-wire sensors with voltages between 10…30 V as well as mechanical limit switches can be used.

Valves Type 6534 for Safety-Related Shut-Off, SIA Variant (Optional)

Type 6534 valves are equipped with additional connection terminals. A valve circuit can therefore be interrupted by an external switch. Manual override is not required for these valve variants. To use the shut-off function, connect the terminal to a potential-free contact (mechanical switch or relay).

Module-Based Safety Shutdown (Optional)

Optional connections for module-based safety shutdown (Terminal 1 = valve unit 1, Terminal 2 = valve unit 2, etc.). Connect the connection to a potential-free contact (mechanical switch or relay).

Example Configuration

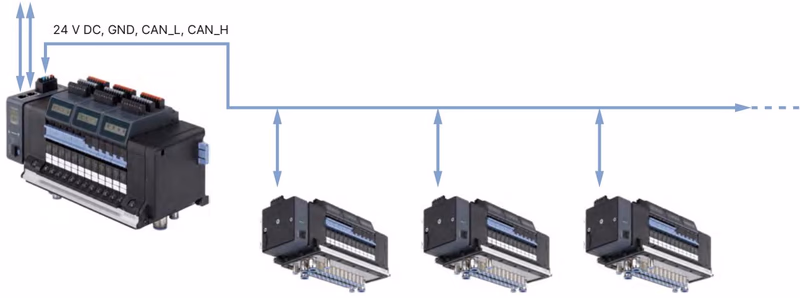

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.

Accessories

Bürkert Communicator Software: The Bürkert Communicator is the most important software component of the EDIP (Efficient Device Integration Platform). It simplifies the configuration and parametrisation of devices equipped with a digital CANopen-based interface, providing a complete overview of cyclic process values and acyclic diagnostic data.

Safety Instructions for Hazardous Areas

WARNING

Danger from voltage:

• Before working on the device or system, disconnect the power supply and secure against reactivation.
• In an existing explosive atmosphere, the connection terminals for 24 V supply, SIA, EVS, and digital inputs may only be plugged in or unplugged when de-energized.
• The Hot Swap function is prohibited in an existing explosive atmosphere unless it can be proven and ensured by suitable test equipment that no explosive atmosphere is present for a certain period.

Danger of explosion due to electrostatic charge:

• Take appropriate measures to ensure that no electrostatic charge can occur in the potentially explosive area.
• Only clean the device surfaces by wiping them gently with a damp or antistatic cloth.

INFO

Special conditions for Ex use:

• For type of protection "ec", install the device in an enclosure that meets the requirements of EN/IEC 60079-0 and EN/IEC 60079-7 with a degree of protection of at least IP54.
• For type of protection "tc" (dust), install the device in an enclosure with a degree of protection of at least IP6X.
• Only use the device in an area with a degree of pollution of at least 2 as defined in IEC 60664-1.
• Ensure that the set value for transient protection does not exceed 140% of the rated peak voltage at the device's supply connections.
