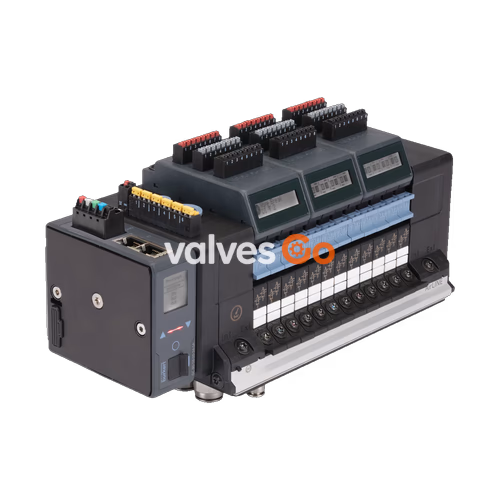

The Burkert Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller, enabling a fast overview of the plant status. The hardware is optimised for installation at the bottom of the control cabinet. Installation on a standard rail is also possible. Key pneumatic functions ensure increased process reliability, such as check valves in the exhaust air ducts that prevent unplanned actuation due to pressure peaks.

• Safety-related shut-off of valves possible
• Higher plant availability with PROFINET S2 (system redundancy)
• Process reliability through pneumatic functions
• Optimised for installation at the bottom of the control cabinet
• EX-variants: ATEX / IECEx Zone 2, CCC, cURus HazLoc CL I, II, III Div 2

General Technical Data

Product properties	Description
Material	Body: PA (polyamide) Seal: NBR and PUR
Width per station	11 mm
Manual override	Latching, spring return (optional: lockable)
Number of valve slots	Max. 24
Maximum valve functions	Max. 48
Pressure range	Vacuum to 10 bar
External supply air	3 to 10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Flow rate with Hot Swap	Flow reduced by approx. 3%
Operating voltage	24 V DC (±10% tolerance)
Nominal power per valve	0.7 W (0.175 W after power reduction)
Nominal current per valve	29 mA (10 mA after power reduction)
Degree of protection	IP20, IP65 in closed control cabinets
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Ambient temperature	-10 °C to +55 °C

AirLINE Quick

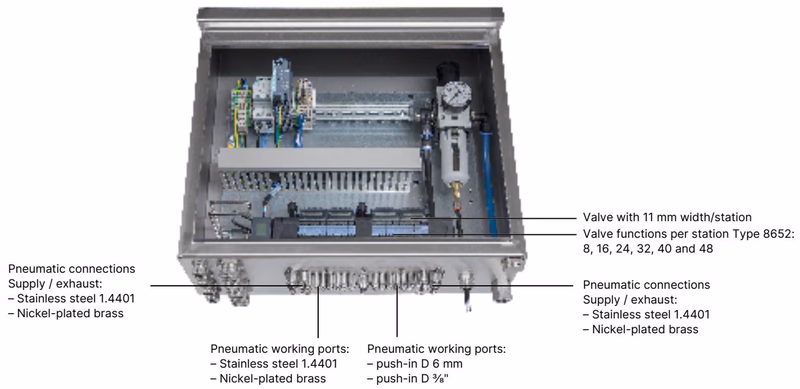

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

• Reduced space requirement in the control cabinet
• Makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Product properties	Description
AirLINE Quick Adapter Plate	Stainless steel 1.4301 or Anodised aluminium
Pneumatic connection	Stainless steel 1.4401 or Nickel-plated brass
Valve functions per station	8, 16, 24, 32, 40 and 48
Pneumatic Supply / Exhaust	Push-in D 10 mm, 3/8"
Pneumatic working ports	Push-in D 6 mm, 1/4"

Circuit Functions

Standard Functions

Circuit function	Description
C (CF C)	3/2-way solenoid valve, servo-controlled, normally closed
C (CF C)	2 × 3/2-way solenoid valve, servo-controlled, normally closed
D (CF D)	2 × 3/2-way solenoid valve, servo-controlled, normally open
H (CF H)	5/2-way solenoid valve, servo-controlled. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure.
L (CF L)	5/3-way solenoid valve, in middle position all ports locked
M (CF M)	5/3-way solenoid valve, servo-controlled, in middle position ports 2 and 4 ventilated
N (CF N)	5/3-way solenoid valve, in middle position ports 2 and 4 exhausted
Z (CF Z)	5/2-way solenoid valve, impulse variant with 2 coils. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure.

SIA Variant (for safety-related shut-off)

Circuit function	Description
C (CF C)	3/2-way solenoid valve, servo-controlled, normally closed
C (CF C)	2 × 3/2-way solenoid valve, servo-controlled, normally closed
H (CF H)	5/2-way solenoid valve, servo-controlled. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure.
L (CF L)	5/3-way solenoid valve, servo-controlled, in middle position all ports locked

Approvals and Conformities

Approval	Description
Explosion protection	Optional: As a category 3 device suitable for zone 2/22. ATEX: II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc IECEx: Ex ec IIC Gc / Ex tc IIIC Dc
North America (USA/Canada)	Optional: UL Listed for the USA and Canada (UL 61010-1). Optional: UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Div 2).
CCC	Optional: China Compulsory Certification (CCC) for hazardous applications in China.

Dimensions

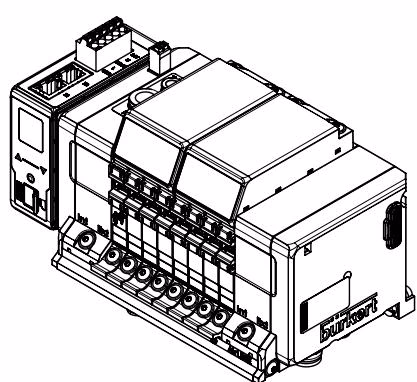

Variant 4-, 8- and 12-fold

INFO

Dimensions in mm, unless otherwise stated. Standard rail EN 50022 35 x 7.5 or 35 x 15.

Variant	A	B	C	m	n
4-fold	66	-	4 x M5	3	1
8-fold	35	111	8 x M5	7	2
12-fold	77	154	10 x M5	11	3

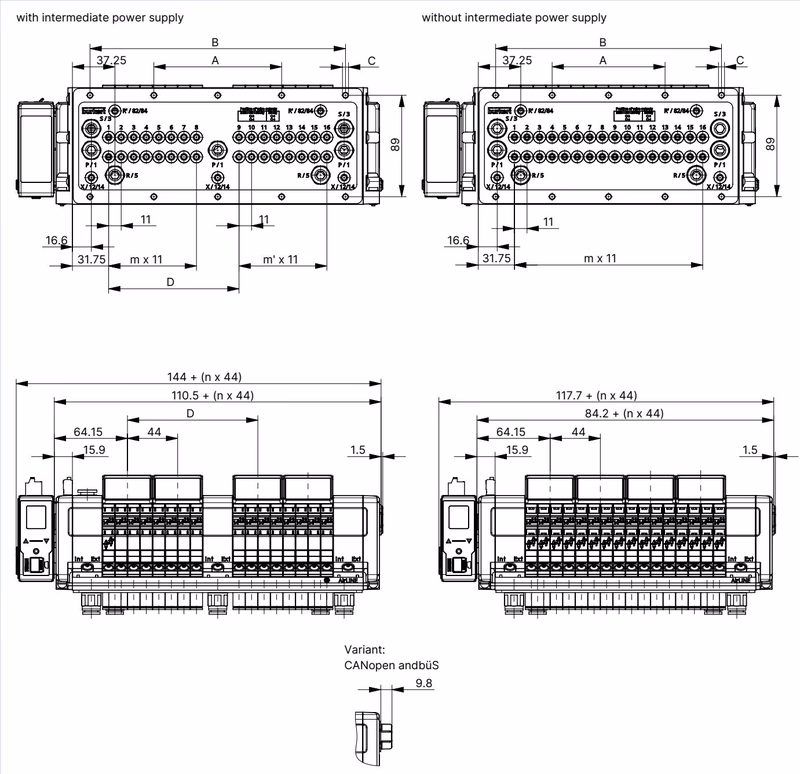

Variant 16-, 20- and 24-fold

Variant	A	B	C	D	m	m'	n
16-fold with intermediate supply	112	224	10 x M5	114.3	7	7	4
20-fold with intermediate supply	134	268	10 x M5	158.3	11	7	5
24-fold with intermediate supply	156	312	10 x M5	158.3	11	11	6
16-fold without intermediate supply	99	198	10 x M5	-	15	-	4
20-fold without intermediate supply	121	242	10 x M5	-	19	-	5
24-fold without intermediate supply	143	286	10 x M5	-	23	-	6

Product Connections

Power Supply for Communication and Displays

Connect 5-pin spring-loaded terminal according to the pin assignment. Possible cable cross-section: ≤ 1.5 mm².

Pin	Colour	Assignment
1	Red	24 V DC
2	White	CAN_H (büS connection)
3	Green	SHIELDING
4	Blue	CAN_L (büS connection)
5	Black	GND

Power Supply for Pneumatic Valves

The interface plate has a 2-pin spring-loaded terminal to which the pneumatic valves' power supply is connected.

Pin	Colour	Assignment
1	Red	AUX 24 V
2	Black	GND

Product Installation

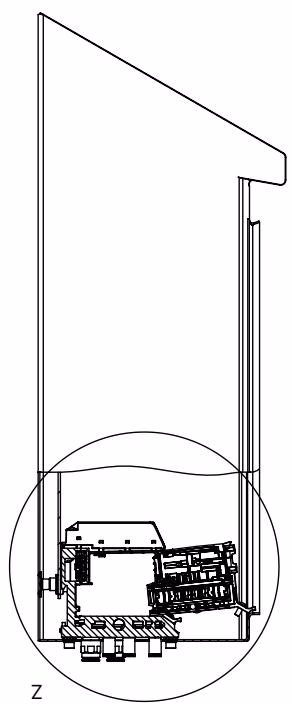

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

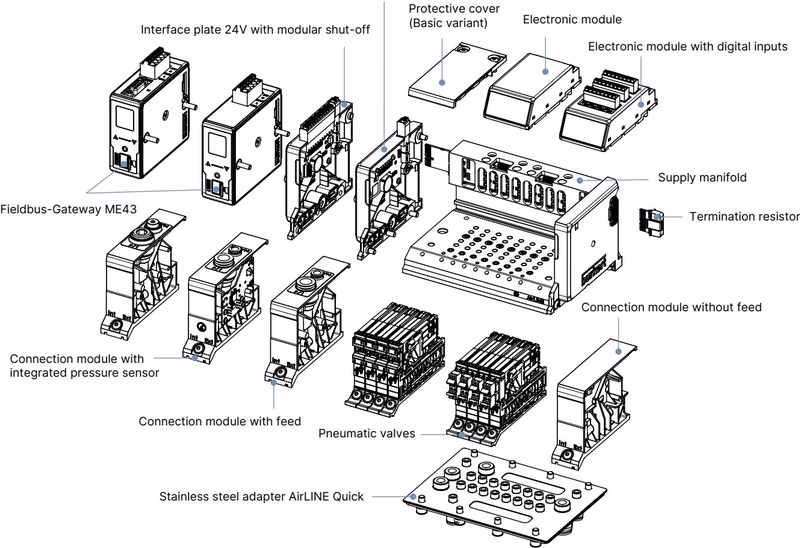

Product Design and Assembly

Example Configuration

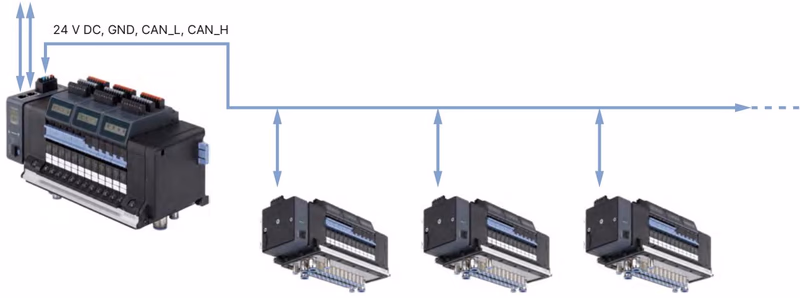

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.

Safety Instructions for Potentially Explosive Areas

Voltage Hazard

• Before working on the device or system, disconnect the power supply. Secure against reactivation.
• In an existing explosive atmosphere, the connection terminals for 24 V power supply, SIA, EVS, and digital inputs may only be plugged in or unplugged when de-energized.
• The use of the Hot Swap function in an existing explosive atmosphere is prohibited.

Electrostatic Charge Hazard

Sudden discharge of electrostatically charged devices or individuals can cause an explosion in the potentially explosive area.

• Take appropriate measures to ensure that no electrostatic charge can build up in the potentially explosive area.
• Clean the device surface only by wiping it gently with a damp or antistatic cloth.

Special Conditions for Hot Swap

The use of the Hot Swap function in an existing explosive atmosphere is prohibited. If it can be proven and ensured by means of suitable test equipment that no explosive atmosphere is present for a certain period of time, it is permissible to remove/insert valves using Hot Swap during this time. The Hot Swap function may only be used by appropriately trained personnel.
