Type 2032
Burkert Type 2032 T-diaphragm valve with pneumatic plastic actuator (CLASSIC). The externally controlled diaphragm valve Type 2032 consists of a pneumatically operated piston actuator, a diaphragm and a T-valve body. The proven and robust actuator with a plastic housing ensures use in hygienic or aggressive ambient conditions. The flow-efficient valve bodies with little dead space enable high flow rates and a wide range of possible uses. The valve body and the diaphragm are available in all common materials and variants. The actuator has a compact, autoclavable design (PPS variant). The integration of the automation units Type 8690/8697 is possible in all configuration levels (can be retrofitted). An explosion-proof ATEX/IECEx device variant is available.
The add-on body is optionally available in plastic or stainless steel. The actuator is equipped with an integrated, optical position indicator as standard, optionally a minimum/maximum stroke limiter can be installed.
Control Functions
| Symbol | Description |
|---|---|
| Control function A (CF A) | Pneumatically operated T-valve. Normally closed by spring force. |
| Control function B (CF B) | Pneumatically operated T-valve. Normally opened by spring force. |
| Control function I (CF I) | Pneumatically operated T-valve on either side. Switching position dependent on external control. |
Approvals and Conformities
- ATEX/IECEx: EPS 18 ATEX 2 008 X II 2G Ex h IIC T4…T2 Gb / II 2D Ex h IIIC T135 °C…T300 °C Db. IECEx EPS 18.0007X.
- 3-A Sanitary Standards Inc.: The products comply with 3-A Sanitary Standards Inc (3-A SSI) as per certificate.
- FDA: The diaphragms made of EPDM (AD), PTFE/EPDM (EA), Advanced PTFE/EPDM (EU) and laminate of GYLON® and EPDM (ER) comply with the Code of Federal Regulations published by the FDA.
- USP: The diaphragms are tested according to USP Class VI.
- EC Regulation 1935/2004: The diaphragms are suitable for use with food and beverages.

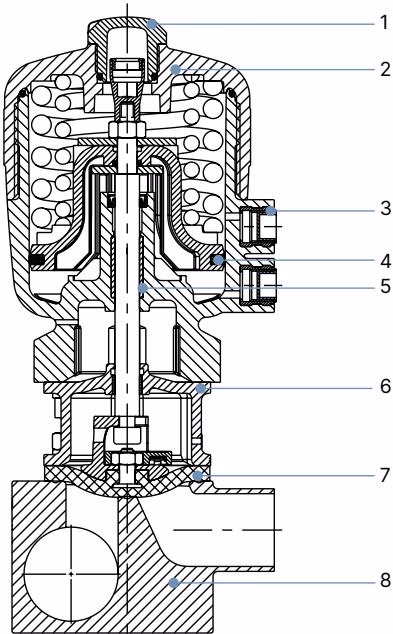

Materials
Actuator size 40…125
| No. | Element | Material |
|---|---|---|
| 1 | Transparent cap | Polysulfone PSU |
| 2 | Cover | Polyphenylene sulphide PPS (standard) / Polyamide PA (on request) |
| 3 | Pilot air ports | Stainless steel 1.4305 |
| 4 | Piston seal | FKM |
| 5 | Socket | Sinter metal |
| 6 | Interface | Stainless steel 1.4404 |
| 7 | Diaphragm | EPDM (AD), PTFE/EPDM (EA), Advanced PTFE/EPDM (EU), laminate of GYLON® and EPDM (ER) |
| 8 | Valve body | Stainless steel block material 1.4435 / 316L |
Dimensions
Actuator
| Diaphragm size | Actuator size ∅ | ∅ A | C | K | H |
|---|---|---|---|---|---|
| 8 | 40 (C) | 53 | 34 | G 1/8" | 111 |
| 15 | 50 (D) | 64 | 39 | G 1/8" | 137 |
| 15 | 63 (E) | 80 | 52 | G 1/4" | 154 |
| 20 | 63 (E) | 80 | 52 | G 1/4" | 165 |
| 20 | 80 (F) | 101 | 52 | G 1/4" | 186 |
| 25 | 63 (E) | 80 | 52 | G 1/4" | 170 |
| 25 | 80 (F) | 101 | 60 | G 1/4" | 190 |
| 40 | 100 (G) | 127 | 73 | G 1/4" | 246 |
| 40 | 125 (H) | 158 | 86 | G 1/4" | 284 |
| 50 | 100 (G) | 127 | 73 | G 1/4" | 254 |
| 50 | 125 (H) | 158 | 86 | G 1/4" | 288 |
T-Body with Welded Connection
T-Body with Clamp Connection
INFO
The clamp dimensions must be added to the welded connection dimensions.
Performance Specifications
Maximum static operating pressure for seal materials (Control function A)
| Diaphragm size | Actuator size ∅ | Pilot pressure [bar] | EPDM, FKM [bar] | PTFE/EPDM, advanced PTFE/EPDM, laminate of GYLON® and EPDM [bar] |
|---|---|---|---|---|
| 8 | 40 (C) | 5.0...7 | 10 | 10 |
| 15 | 50 (D) | 5.0...7 | 10 | - |
| 15 | 63 (E) | 5.0...7 | 10 | 10 |
| 20 | 63 (E) | 5.5...7 | 10 | 10 |
| 20 | 80 (F) | 5.0...7 | 10 | 10 |
| 25 | 80 (F) | 5.5...7 | 10 | 10 |
| 40 | 100 (G) | 5.5...7 | 10 | 9 |
| 40 | 125 (H) | 5.5...7 | 10 | 10 |
| 50 | 125 (H) | 5.5...7 | 10 | 10 |
WARNING
For low operating pressures, optional variants with reduced spring force (EC04) are recommended. Pressure data [bar]: Overpressure to atmospheric pressure. Static: When closed, the valve is pressurised on one side with the maximum operating pressure.
Installation
Self-Draining Installation
To ensure self-draining, the pipeline should have an inclination angle of 1° to 5°. The self-draining angle of the valve body depends on the body size and port connection.
Leakage Detection
For leakage monitoring, one of the relief bores in the diaphragm bonnet must be located at the lowest point.
Product Accessories
Electric position feedback indicator Type 8697
The position feedback Type 8697 is designed for integrated mounting on CLASSIC series 20XX process valves, suiting the requirements of hygienic process environments. Mechanical or inductive limit switches register the position of the valve.
- Compact design
- LED position indicator
- Mechanical or inductive limit switches for end position registering
- Easy-to-clean chemically resistant housing featuring IP65/IP67, 4X Rating
- Optionally intrinsically safe variant according to IECEx
