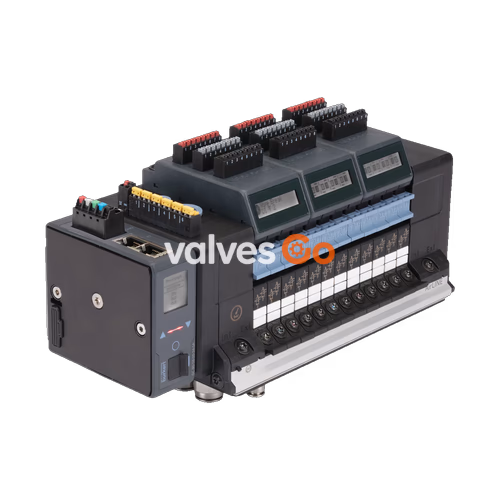

The Burkert Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller, enabling a fast overview of the plant status.

The hardware is optimised for installation at the bottom of the control cabinet. Installation on a standard rail is also possible. Key pneumatic functions ensure increased process reliability, such as check valves in the exhaust air ducts that make sure there is no unplanned actuation due to pressure peaks.

Key Features

• Safety-related shut-off of valves possible
• Higher plant availability with PROFINET S2 (system redundancy)
• Process reliability through pneumatic functions
• Optimised for installation at the bottom of the control cabinet
• EX-variants: ATEX / IECEx Zone 2, CCC, cURus HazLoc CL I, II, III Div 2

General Technical Data

Product properties	Description
Material	Body: PA (polyamide) Seal: NBR and PUR
Width per station	11 mm
Manual override	Latching, spring return (optional: lockable)
Number of valve slots	Max. 24
Maximum number of valve functions	Max. 48
Pneumatic intermediate supply	Optional for the variants with 16, 20 and 24 valve slots
Pressure range	Vacuum to 10 bar
External supply air	3 to 10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Operating voltage	24 V DC (±10% tolerance)
Nominal power of each valve	0.7 W (0.175 W after power reduction)
Nominal current of each valve	29 mA (10 mA after power reduction)
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Degree of protection	IP20, IP65 in closed control cabinets
Ambient temperature	-10 °C to +55 °C
Communication interface	PROFIBUS DP, Industrial Ethernet (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic), PROFINET S2, CANopen, büS

AirLINE Quick

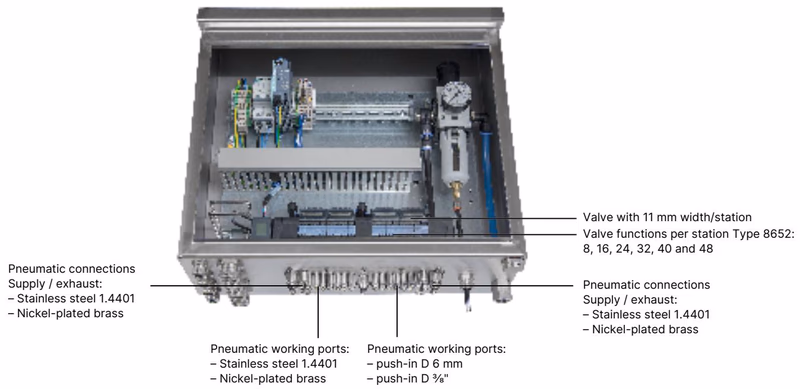

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages

• Reduced space requirement in the control cabinet
• Makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Circuit Functions

Circuit function	Description
C (CF C)	3/2-way solenoid valve, servo-controlled, normally closed
C (CF C) 2x	2 × 3/2-way solenoid valve, servo-controlled, normally closed
D (CF D) 2x	2 × 3/2-way solenoid valve, servo-controlled, normally open
H (CF H)	5/2-way solenoid valve, servo-controlled, pressure applied via port (1)
L (CF L)	5/3-way solenoid valve, in middle position all ports locked
M (CF M)	5/3-way solenoid valve, in middle position ports 2 and 4 ventilated
N (CF N)	5/3-way solenoid valve, in middle position ports 2 and 4 exhausted
Z (CF Z)	5/2-way solenoid valve, impulse variant with 2 coils

Approvals and Conformities

Approval	Description
Explosion protection	ATEX: II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc IECEx: Ex ec IIC Gc / Ex tc IIIC Dc
North America (USA/Canada)	UL Listed (UL 61010-1) UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Div 2)
CCC	China Compulsory Certification for hazardous applications in China

Explosion Protection Safety Notes

• Voltage Hazards: Connect or disconnect terminals for 24 V power, SIA, EVS, and digital inputs only in a de-energized state in explosive atmospheres.
• Hot Swap Restrictions: The use of the Hot Swap function is strictly prohibited in explosive atmospheres unless it can be proven by suitable test equipment that no explosive atmosphere is present during the procedure.

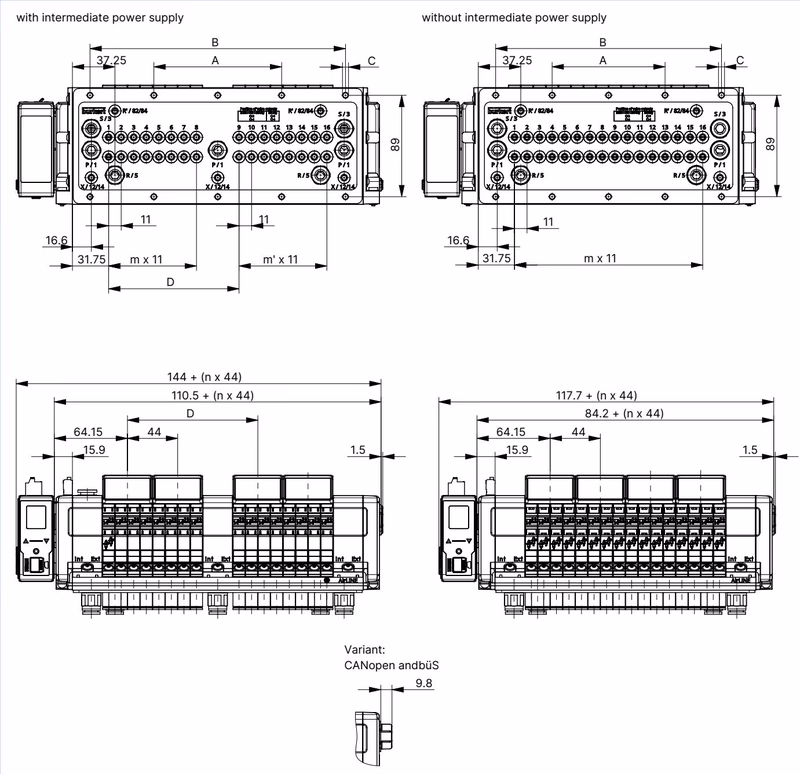

Dimensions

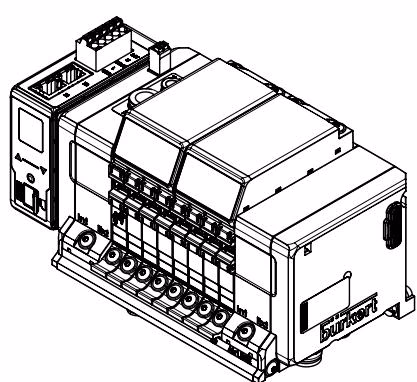

Variant 4-, 8- and 12-fold

Variant	A	B	C	m	n
4-fold	66	-	4 x M5	3	1
8-fold	35	111	8 x M5	7	2
12-fold	77	154	10 x M5	11	3

Variant 16-, 20- and 24-fold

Variant	A	B	C	D	m	m'	n
16-fold with intermediate supply	112	224	10 x M5	114.3	7	7	4
20-fold with intermediate supply	134	268	10 x M5	158.3	11	7	5
24-fold with intermediate supply	156	312	10 x M5	158.3	11	11	6
16-fold without intermediate supply	99	198	10 x M5	-	15	-	4
20-fold without intermediate supply	121	242	10 x M5	-	19	-	5
24-fold without intermediate supply	143	286	10 x M5	-	23	-	6

Product Design and Assembly

Electronic Module with Digital Inputs (Optional)

The digital inputs are supplied (24 V) by the electronic module. Current is limited to maximum 30 mA per digital input. Standard 3-wire sensors and 2-wire sensors with voltages between 10…30 V as well as mechanical limit switches can be used.

Valves Type 6534 for Safety-Related Shut-Off, SIA Variant (Optional)

Type 6534 valves are equipped with additional connection terminals. A valve circuit can therefore be interrupted by an external switch. Manual override is not required for these valve variants. To use the shut-off function, connect the terminal to a potential-free contact (mechanical switch or relay).

Example Configuration

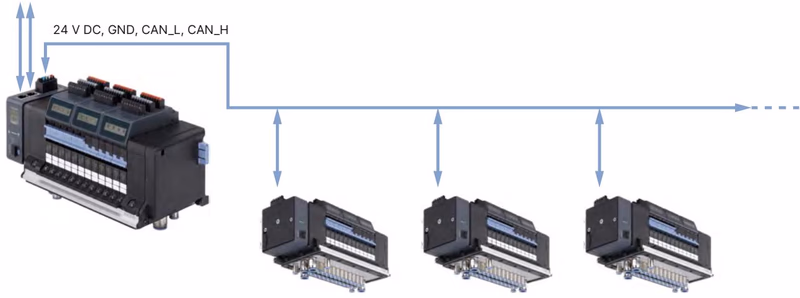

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.
