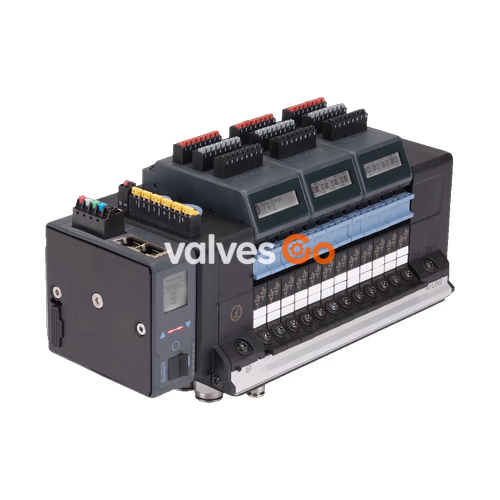

BURKERT 20140437 Type 8652 AirLINE valve island has been especially developed for process automation requirements. This specific configuration features a 20-bank setup (20x 3/2-way WWC valves) with Industrial Ethernet protocols (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic). New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller, enabling a fast overview of the plant status.

The hardware is optimised for installation at the bottom of the control cabinet via the included Aluminium AirLINE Quick adapter, though installation on a standard rail is also possible. Key pneumatic functions ensure increased process reliability, such as check valves in the exhaust air ducts that prevent unplanned actuation due to pressure peaks. This model is certified for hazardous locations with ATEX/IECEx Zone 2 approvals (Ex ec IIC Gc, Ex tc IIIC Dc).

General Technical Data

Property	Value
Dimensions	Width per station: 11 mm
Material	Body: PA (polyamide) Seal: NBR and PUR Supply/Working connection: Brass AirLINE Quick: Aluminium
Valve Slots	20 PCE (Max. 24 for family)
Pressure Range	-1 bar to 10 bar (Vac...10 bar)
External Supply Air	3...10 bar (Internal auxiliary pilot air)
Flow Rate (Qn value air)	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Operating Voltage	24 V DC (±10% tolerance)
Nominal Power	0.7 W per valve (0.175 W after power reduction)
Nominal Current	29 mA per valve (10 mA after power reduction)
Operating Medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Temperatures	Medium: -10 °C to +55 °C Ambient: -10 °C to +55 °C
Degree of Protection	IP20 (IP65 in closed control cabinets)
Product Connections	Pressure port: D10 Working port: D6
Communication Interface	Industrial EtherNet (PROFINET IO, EtherNet IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) via RJ45

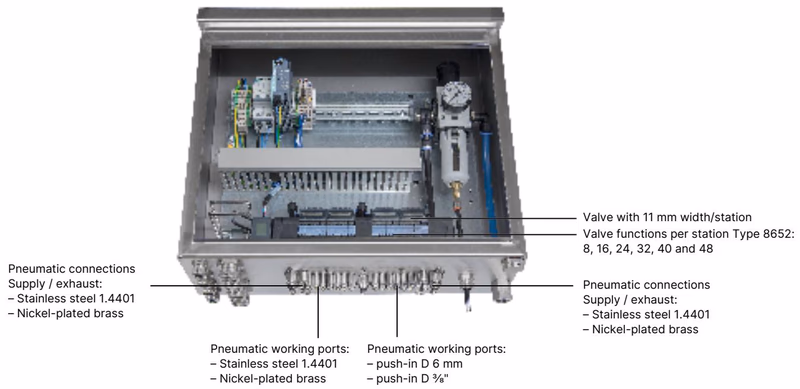

AirLINE Quick

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages

• Reduced space requirement in the control cabinet
• This makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Circuit Functions

The valve island supports various circuit functions using Type 6534 solenoid valves. The standard functions include:

• C (CF C): 3/2-way solenoid valve, normally closed
• D (CF D): 2 × 3/2-way solenoid valve, normally open
• H (CF H): 5/2-way solenoid valve
• L (CF L): 5/3-way solenoid valve, all ports locked in middle position
• M (CF M): 5/3-way solenoid valve, ports 2 and 4 ventilated in middle position
• N (CF N): 5/3-way solenoid valve, ports 2 and 4 exhausted in middle position
• Z (CF Z): 5/2-way solenoid valve, impulse variant

SIA Variant (for safety-related shut-off)

Type 6534 valves are available in an SIA variant equipped with additional connection terminals. A valve circuit can therefore be interrupted by an external switch. Manual override is not required for these valve variants. To use the shut-off function, connect the terminal to a potential-free contact (mechanical switch or relay).

Approvals and Conformities

• Explosion Protection: ATEX (II 3G Ex ec IIC Gc, II 3D Ex tc IIIC Dc) and IECEx (Ex ec IIC Gc, Ex tc IIIC Dc). Suitable for Zone 2/22.
• North America: Optional UL Listed (UL 61010-1) and UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Div 2).
• Other: China Compulsory Certification (CCC) for hazardous applications.

Dimensions

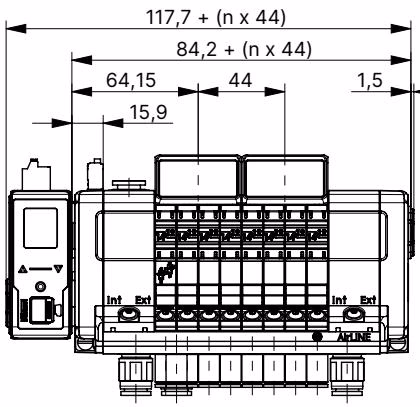

Variant 4-, 8- and 12-fold

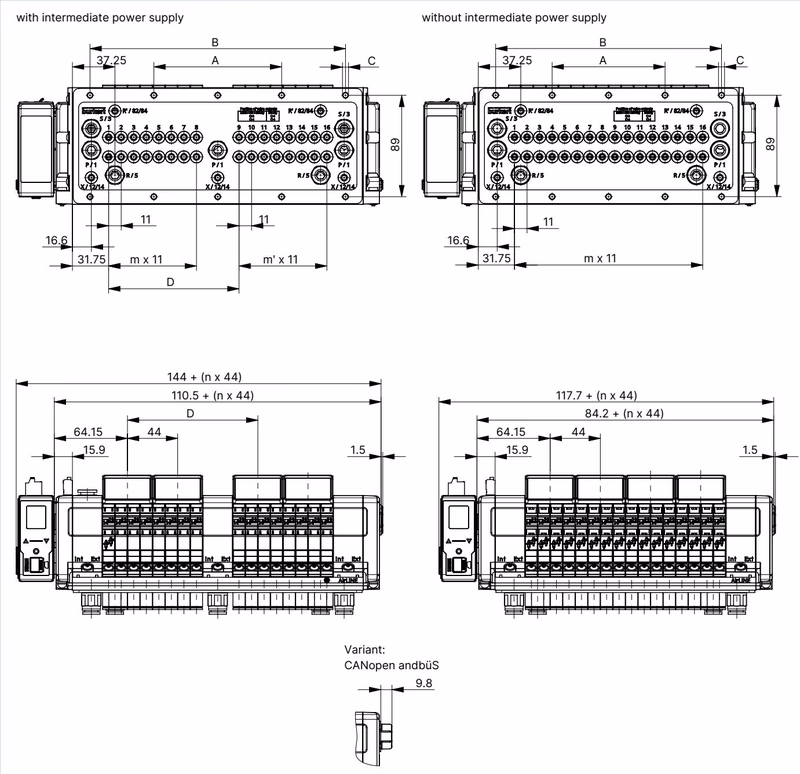

Variant 16-, 20- and 24-fold

Product Connections

Power Supply

• Communication and displays: 5-pin spring-loaded terminal (24 V DC, CAN_H, SHIELDING, CAN_L, GND).
• Pneumatic valves: 2-pin spring-loaded terminal (AUX 24 V, GND).

Fieldbus Interface

Industrial Ethernet (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) or PROFINET S2 utilizes Interface X1 and X2 RJ45.

Pin	Assignment
1	TX+
2	TX-
3	RX+
6	RX-
4, 5, 7, 8	N.C.

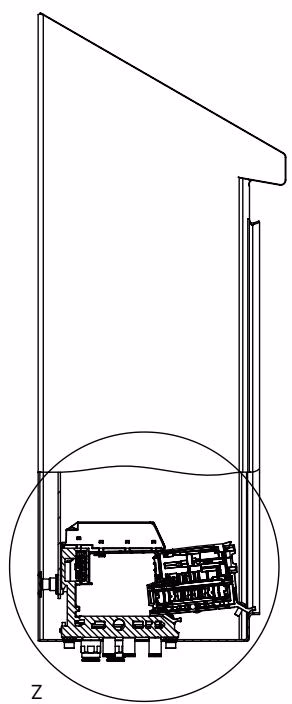

Product Installation

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

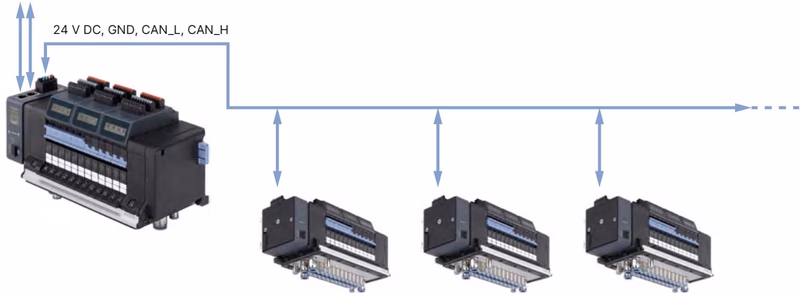

Example Configuration

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.

Supplementary Instructions for EX Areas

Danger from electrical voltage

• Before intervening in the device or system, switch off the power supply and secure to prevent reactivation.
• In an existing explosive atmosphere, the connection terminals for 24 V supply, SIA, EVS, and digital inputs may only be plugged in or unplugged when the power is switched off.
• The use of the hot-swap function is prohibited in an existing explosive atmosphere.

Danger of explosion due to electrostatic charge

• Take appropriate measures to ensure that no electrostatic charges can build up in the potentially explosive area.
• Only clean the device surface by wiping it gently with a damp or antistatic cloth.

Special conditions for safe use

• Install the device in an enclosure suitable for the type of protection "ec" in accordance with EN/IEC 60079-0 and EN/IEC 60079-7, with a degree of protection of at least IP54.
• For type of protection "tc" (dust), install in an enclosure with a degree of protection of at least IP6X.
• Only use the device in an area with a degree of pollution of at least 2 as defined in IEC 60664-1.
