BURKERT 332732 (Type 6014) is a direct-acting, compact 3/2-way plunger solenoid valve. The stopper and core guide tube are welded together to enhance pressure resistance and leak-tightness. This specific model features a brass body, FKM seals, and a 2.0 mm orifice, designed for a pressure range of 0 to 10 bar. It operates on 24 V DC and includes an internal NPT 1/8 thread connection. The valve is UL Listed and comes complete with a cable plug.

General Technical Data

Feature	Specification
Orifice	DN 2.0 mm
Body Material	Brass
Seal Material	FKM
Operating Voltage	24 V DC
Voltage Tolerance	±10%
Nominal Pressure	0 - 10 bar (gas and liquid)
Medium Temperature	-10 °C to +120 °C
Ambient Temperature	Max. +55 °C
Viscosity	Max. 21 mm²/s
Port Connection	Internal thread NPT 1/8
Electrical Connection	Plug contacts according to DIN EN 175301-803 Form A
Degree of Protection	IP65 (with suitable connector)
Thermal Insulation Class	Polyamide coil class B

Circuit Function

This valve operates with Circuit Function D (CF D).

• Type: 3/2-way solenoid valve
• Operation: Direct-acting
• State: Normally open (inlet port 1 connected with outlet port 2, exhaust port 3 closed)

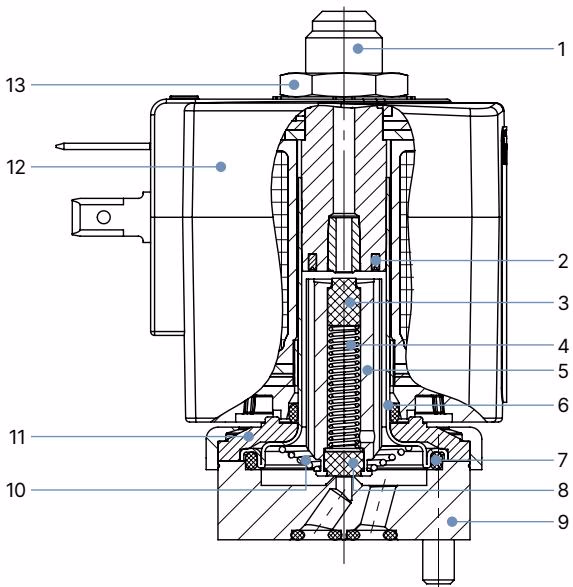

Material Specifications

No.	Element	Material
1	Stopper	Stainless steel 1.4105/430F
2	Shading ring	Cu (brass variant)
3	Plunger seal	FKM
4	Spring	Stainless steel 1.4310/301
5	Magnetic core	Stainless steel 1.4105/430F
6	Core guide tube	Stainless steel 1.4303/305/308
7	O-ring	FKM
8	Plunger seal	FKM
9	Valve body	Brass
10	Spring	Stainless steel 1.4310/301
11	Sub-base	Steel, surface finish thick-film passivated
12	Coil	PA (Polyamide)
13	Nut	Steel, surface finish thick-film passivated

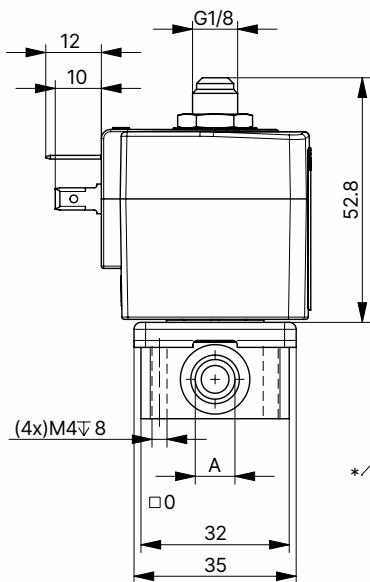

Dimensions

Note

Dimensions are in mm.

Threaded Variant Dimensions

Port Connection	A [inch]	B [mm]	C [mm]	D [mm]	G [mm]
Threaded without manual override	G 1/8	32	20.8	32.6	8
Threaded without manual override	G 1/4	46	26.8	49	12

Coil Dimensions

Coil Size	E [mm]	F [mm]
5	32	45
6	40	51

Pin Assignment

For the positions marked with *, ** or *** in the drawing, the connections are marked with the letters shown in the table below, depending on the circuit function. Unused circuit functions A or B connections will be closed off with a blanking plug or cap nut.

Circuit Function	*	**	***
D	R	P	B

Performance Specifications

Power Consumption

Orifice [mm]	Coil Power [W]	Inrush AC [VA]	Hold AC [VA/W]	Opening Time [ms]	Closing Time [ms]
2.0	8 W AC or 8 W DC	24	8	10...15	15...20
Measurement at +20 °C, 6 bar at the valve outlet, opening: pressure build-up 0...90 %, closing: pressure reduction 100...10 %

Utilisation in Another Circuit Function

The valves are equipped with different springs for specific circuit functions. When used with other circuit functions, the permissible operating pressure changes. For DN 2.0, Circuit Function D:

• Max operating pressure in CF A: 1 bar
• Max operating pressure in CF B: 1.5 bar
• Max operating pressure in CF C: 1 bar
• Max operating pressure in CF D: 10 bar
• Max operating pressure in CF T: 1 bar
