Burkert Type 6027 (Article No. 355831) is a direct-acting plunger valve designed for high-pressure applications. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. Special seal technology, including oxide ceramics and FKM, is used to ensure reliable operation in high-pressure environments up to 250 bar. In combination with a plug in accordance with DIN EN 175301-803 Form A, the valve satisfies protection class IP65.

Key Features

• Direct-acting, powerful valve
• Vibration-proof, bolted coil system
• High pressure variants for gases and liquids up to 250 bar
• Welded stopper and plunger guide tube for enhanced leak-tightness

Circuit Function

Circuit function A (CF A) 2/2-way solenoid valve, direct-acting, normally closed.

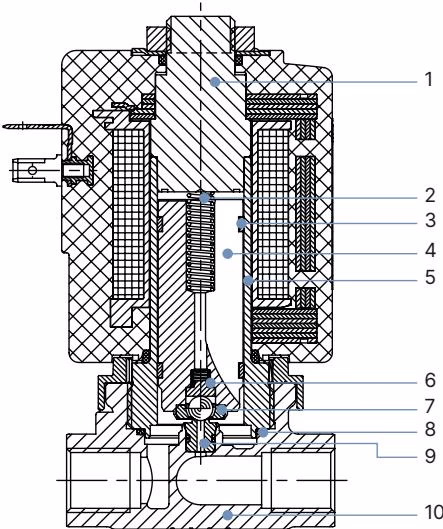

Materials (High Pressure Variant)

No.	Element	Material
1	Stopper	Stainless steel 1.4523/316
2	Compression springs	Stainless steel 1.4310/301
3	Glider	PTFE
4	Plunger	Stainless steel 1.4113/434
5	Armature guide tube	Stainless steel 1.4571/316 Ti
6	Ball seat	Stainless steel 1.4305/303
7	Seat seal	Ceramic ball (Oxide ceramics)
8	O-ring	FKM
9	Seat	PEEK
10	Housing	Stainless steel 1.4404/316L (CF3M)

Dimensions

Flange and screw-in variant high pressure up to 250 bar or 160 bar Note: Dimensions in mm.

Flange version high pressure (FB50)

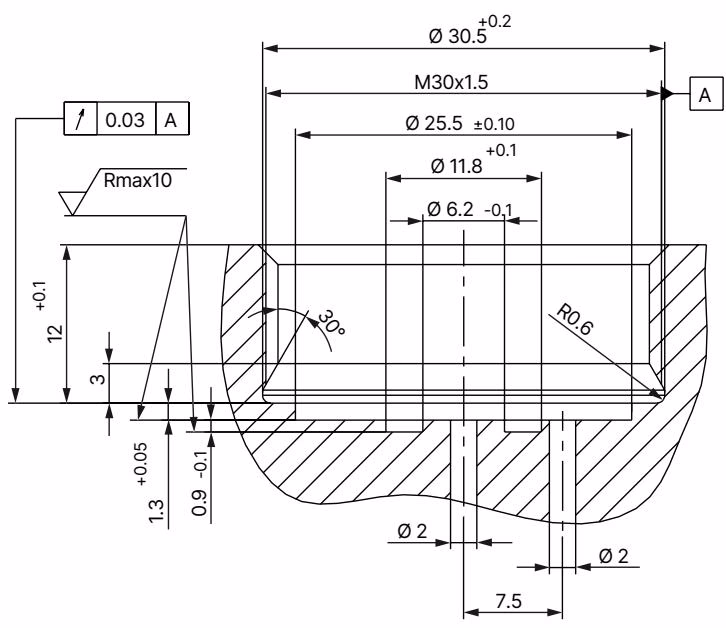

Screw-in version high pressure (FK12)

Safety Instructions

Danger due to high pressure and electrical voltage

• Before loosening lines and valves, turn off the pressure and vent the lines.
• Before working on or inside the device or the system, switch off the power supply and secure against reactivation.
• Observe the applicable accident prevention and safety regulations for electrical devices.

Risk of burns from hot device surfaces

• Do not touch the device with your bare hands. The coil can become very hot during continuous operation.

Installation Recommendations

• Installation position: any, preferably with actuator on top.
• Before installation, check pipelines for soiling and clean if necessary.
• Install dirt trap at the valve inlet (0.2...0.4 mm).
• Only use new seals.
