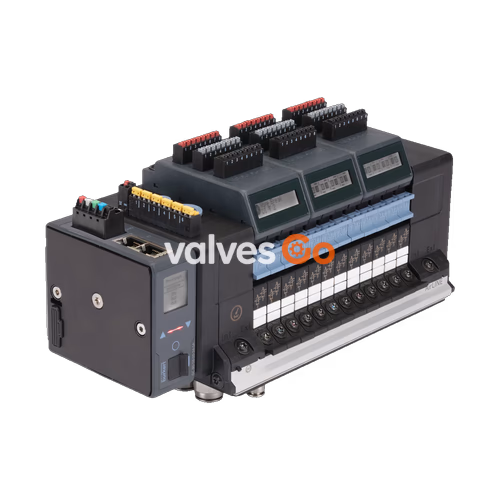

BURKERT Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller, enabling a fast overview of the plant status.

The hardware is optimised for installation at the bottom of the control cabinet. Installation on a standard rail is also possible. Key pneumatic functions ensure increased process reliability. For instance, check valves in the exhaust air ducts make sure there is no unplanned actuation due to pressure peaks.

General Technical Data

Product properties	Description
Material
Body	PA (polyamide)
Seal	NBR and PUR
Width per station	11 mm
Manual override	Latching, spring return (optional: lockable)
Number of valve slots	Max. 24
Maximum number of valve functions	Max. 48
Performance data
Pressure range	Vac...10 bar
External supply air (auxiliary pilot air)	3...10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Flow rate QNn value air with integrated Hot Swap function	Flow reduced by approx. 3%
Nominal operating mode	Continuous operation (100 % duty cycle)
Electrical data
Operating voltage	24 V DC (Voltage tolerance ±10%)
Nominal power of each valve	0.7 W (0.175 W after power reduction)
Nominal current of each valve	29 mA (10 mA after power reduction)
Digital input	Max. 48
Medium data
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Compressed air quality	ISO 8573-1: 2010, Class 7.4.4
Environment and installation
Ambient temperature	-10 °C...+55 °C
Degree of protection	IP20, IP65 in closed control cabinets

AirLINE Quick

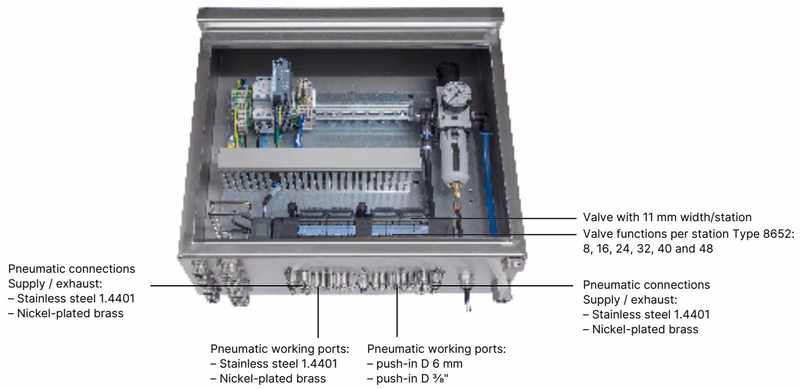

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

• Reduced space requirement in the control cabinet
• This makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Circuit Functions

Standard Functions

Circuit function	Description
C (CF C)	3/2-way solenoid valve, Servo-controlled, with manual override, Normally closed
C (CF C)	2 × 3/2-way solenoid valve, Servo-controlled, with manual override, Normally closed
D (CF D)	2 × 3/2-way solenoid valve, Servo-controlled, with manual override, Normally open
H (CF H)	5/2-way solenoid valve, Servo-controlled, with manual override
L (CF L)	5/3-way solenoid valve, With manual override, In middle position all ports locked
M (CF M)	5/3-way solenoid valve, Servo-controlled, with manual override, In middle position ports 2 and 4 ventilated
N (CF N)	5/3-way solenoid valve, With manual override, In middle position ports 2 and 4 exhausted
Z (CF Z)	5/2-way solenoid valve, Impulse variant with 2 coils and manual override

SIA Variant (for safety-related shut-off)

Circuit function	Description
C (CF C)	3/2-way solenoid valve, Servo-controlled, Normally closed
C (CF C)	2 × 3/2-way solenoid valve, Servo-controlled, Normally closed
H (CF H)	5/2-way solenoid valve, Servo-controlled
L (CF L)	5/3-way solenoid valve, Servo-controlled, In middle position all ports locked

Approvals and Conformities

• Explosion protection: Optional: As a category 3 device suitable for zone 2/22. ATEX: II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc. IECEx: Ex ec IIC Gc / Ex tc IIIC Dc.
• North America (USA/Canada): Optional: UL Listed for the USA and Canada (UL 61010-1). UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Division 2).
• China Compulsory Certification (CCC): Optional: The products with Ex approval are suitable for import and use for hazardous applications in China.

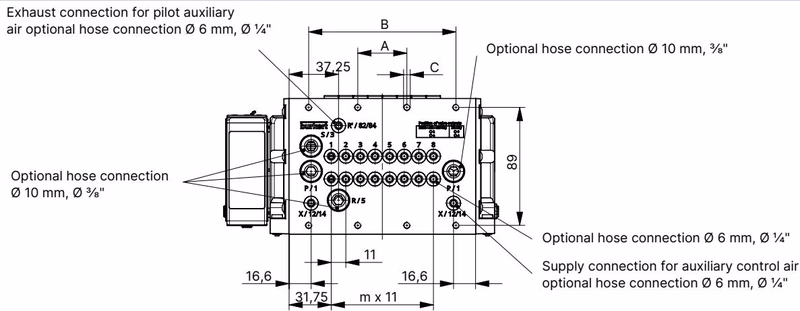

Dimensions

Product Installation

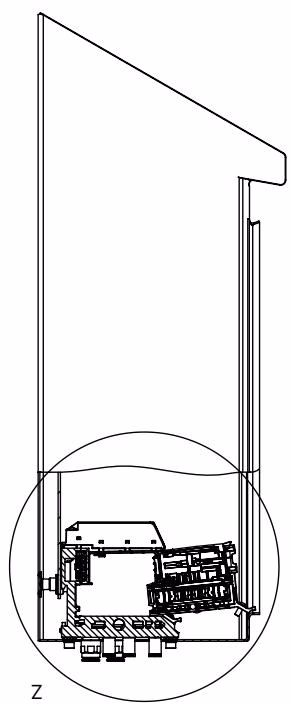

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

Product Design and Assembly

Electronic module with digital inputs (optional)

The digital inputs are supplied (24 V) by the electronic module. Current is limited to maximum 30 mA per digital input. Standard 3-wire sensors and 2-wire sensors with voltages between 10…30 V as well as mechanical limit switches can be used.

Valves Type 6534 for safety-related shut-off, SIA variant (optional)

Type 6534 valves are equipped with additional connection terminals. A valve circuit can therefore be interrupted by an external switch. Manual override is not required for these valve variants. To use the shut-off function, connect the terminal to a potential-free contact (mechanical switch or relay).

Example Configuration

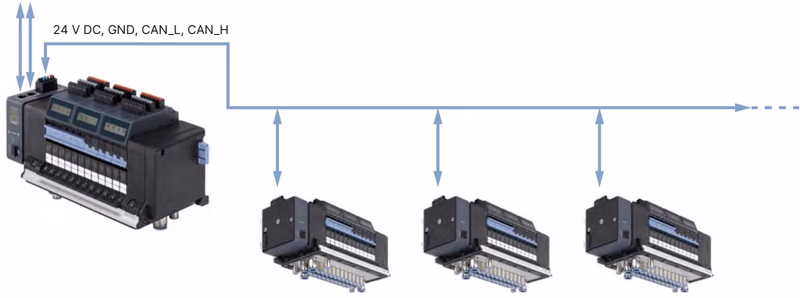

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.

Safety Instructions for Hazardous Locations

• Danger from voltage: Before working on the device or system, switch off the power supply. Secure against reactivation.
• In an existing explosive atmosphere, the connection terminals for 24 V power supply, SIA, EVS, and digital inputs may only be plugged in or unplugged when de-energized.
• The use of the Hot Swap function is prohibited in an existing explosive atmosphere.
• Danger of explosion due to electrostatic charge: Take appropriate measures to ensure that no electrostatic charges can occur in the potentially explosive area. Clean the device surface by gently wiping it with a damp or antistatic cloth only.
