Product Overview

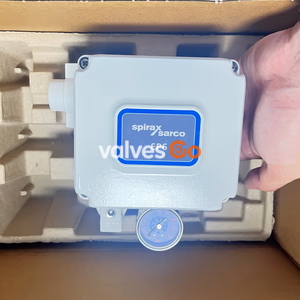

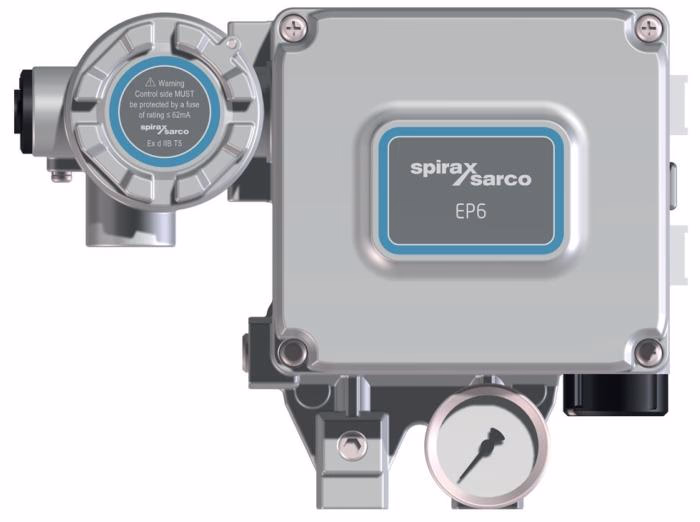

The Spirax Sarco EP6 ATEX electro-pneumatic positioner is a high-precision valve positioner designed for industrial control applications. It is suitable for use with linear or rotary actuators that comply with NAMUR mounting standards, ensuring accurate correspondence between control valve travel and the 4–20 mA input signal. The housing is made from die-cast aluminium with a high level of corrosion resistance and environmental protection, making the EP6 suitable for outdoor installation and a wide range of industrial automation systems.

A pressure gauge is provided as standard to indicate the compressed air pressure delivered to the actuator, simplifying on-site monitoring. The positioner can be configured for direct-acting or reverse-acting operation, and a comprehensive range of mounting kits allows flexible installation on different actuator types and in different mounting positions.

Key Technical Data

Category	Specification
Input signal	4–20 mA (minimum step change 8 mA in split-range control)
Electrical	Input impedance max. 250 ± 15 Ω; electrical connection via M20 cable entry; terminals for 0.5–2.5 mm² conductors
Pneumatics	Supply air pressure 1.4–7.0 bar; air flow 80 L/min at 1.4 bar; steady-state air consumption 2.4 L/min at 1.4 bar; 1/4" NPT air connections
Travel ranges	Linear actuators: 20–150 mm; rotary actuators: 55°–90°
Performance	Sensitivity single-acting ±0.2% of full travel; sensitivity double-acting ±0.5% of full travel; hysteresis ±1% of full travel; linearity single-acting ±1% of full travel; linearity double-acting ±2% of full travel; repeatability ±0.5% of full travel
Environmental	Operating temperature -20°C to +70°C; enclosure rating IP66
Explosion protection	ATEX / IECEx / KCs: Ex d mb IIB T5 Gb; CCC / NEPSI / ATEX / IECEx: Ex d mb IIB T5 Gb; INMETRO: Ex db mb IIB T5 Gb

Materials

Component	Material	Surface finish
Enclosure and cover	Die-cast aluminium	Corrosion-resistant coating (RAL 9016)
Mounting bracket	Carbon steel	Corrosion-resistant coating (RAL 9016)

Weights

Assembly	Weight
Linear positioner (body only)	2.8 kg
EY1 / EY2 / EY3 / EY4 mounting kits	1.2 kg
UY1 / UY3 mounting kits	0.9 kg
Rotary positioner with mounting kit	4.1 kg

Actuator Compatibility and Mounting

Compatible actuators

The EP6 positioner can be used with the following Spirax Sarco actuators and other actuators with NAMUR mounting:

• BVA300 series
• PN9000 series
• TN2000 series
• DC series

Mounting kit selection

Mounting position	Actuator model	Valve type	Valve size	Mounting kit
Central	PN9100	Spira-Trol™ 2-port and 3-port valves	DN15–DN50	EY1 / EY3
Central	PN9200	Spira-Trol™ 2-port and 3-port valves	DN15–DN50	EY1 / EY3
Central	PN9300	Spira-Trol™ 2-port and 3-port valves	DN15–DN100	EY1 / EY3
Central	TN2030	Spira-Trol™ 2-port and 3-port valves	DN15–DN100	EY1 / EY3
Central	TN2150	Spira-Trol™ 2-port and 3-port valves	DN15–DN100	EY1 / EY3
Central	TN2300	Spira-Trol™ 2-port and 3-port valves	DN15–DN100	EY2 / EY4
Central	TN2400	Spira-Trol™ 2-port and 3-port valves	DN125–DN300	EY2 / EY4
Central	TN2270	Spira-Trol™ 2-port and 3-port valves	DN15–DN100	EY2 / EY4
Left side	PN9100	Spira-Trol™ 2-port and 3-port valves	DN15–DN50	UY3
Left side	PN9200	Spira-Trol™ 2-port and 3-port valves	DN15–DN50	UY3
Left side	PN9300	Spira-Trol™ 2-port and 3-port valves	DN15–DN100	UY3
Left side	TN2030	Spira-Trol™ 2-port and 3-port valves	DN15–DN100	Not applicable
Left side	TN2150	Spira-Trol™ 2-port and 3-port valves	DN15–DN100	Not applicable
Left side	TN2300	Spira-Trol™ 2-port and 3-port valves	DN15–DN100	UY1
Left side	TN2400	Spira-Trol™ 2-port and 3-port valves	DN125–DN300	UY1
Left side	TN2270	Spira-Trol™ 2-port and 3-port valves	DN15–DN100	UY1

Approximate mounting dimensions (mm)

Selection Guide

Selection parameters

Selection item	Options
Mounting type	Double-acting linear (with appropriate mounting kit); rotary type (standard with mounting kit)
Explosion protection	Flameproof Ex d (ATEX, IECEx, KCs); Flameproof Ex d (CCC, NEPSI, ATEX, IECEx); Flameproof Ex d (INMETRO)
Electrical connection	M20 – 1/4" NPT standard

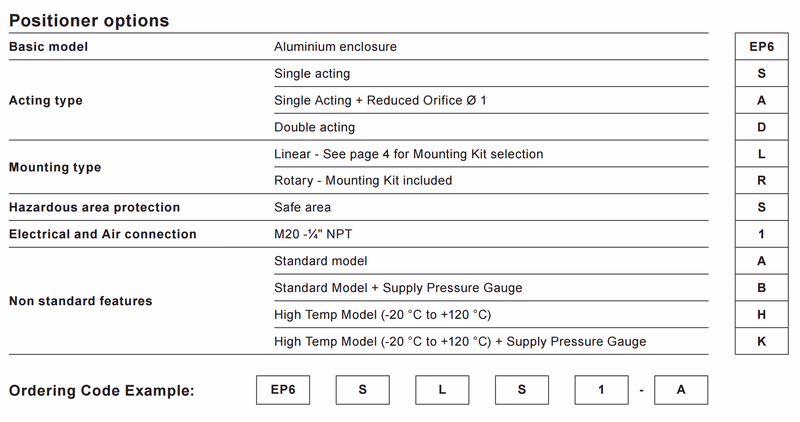

Coding

The selection code consists of the series identifier and configuration codes, for example: EP6 + S + L + C + 1 + A, corresponding to a specific configuration.

Ordering example

For one positioner to be used on a PN9300 single-acting actuator with 30 mm travel, order: EP6SLC1-A positioner plus EY1 mounting kit.

Important Notes

1. Use only high-quality compressed air; the air supply must meet ISO 8573-1:2010 Class 3:3:3 to avoid contamination that could affect performance and service life.
2. For detailed information on installation, maintenance and safety, refer to the EP6 Installation and Maintenance Instructions.
3. Use of the product may be restricted by local regulations; ensure compliance with local requirements before installation.
4. As products are continually developed and improved, Spirax Sarco reserves the right to update technical information without prior notice.
