Product Overview

The HV3 globe valve is a bronze-bodied globe valve introduced by Spirax Sarco, designed and manufactured in strict accordance with BS 5154 Series A standard. The product is suitable for various media scenarios including steam, water, oil, and air. With stable structural design and high-quality material selection, it can operate reliably over a wide range of pressures and temperatures. The valve body and key components are made of high-quality materials such as gunmetal and stainless steel, ensuring corrosion resistance and service life. The product is recyclable and, when properly handled, will not cause environmental harm.

Key Features

• Premium Materials: The valve body is made of gunmetal (BS1400 LG2), and key components such as the valve plug and seat are made of high-quality materials like AISI 431 stainless steel, ensuring stable performance.
• Wide Application Range: Suitable for various media including steam, water, oil, and air, meeting diverse industrial needs.
• Complete Specifications: Available in six sizes from ½" to 2" with BSP threaded connections, suitable for different piping systems.
• Strong Pressure and Temperature Adaptability: Maximum allowable temperature 260℃, minimum allowable temperature -10℃, maximum allowable pressure 25 bar g, suitable for complex working conditions.
• Flexible Installation: Can be installed on any plane, only requiring that the handwheel is not lower than the valve body, complying with flow direction arrow marking requirements.
• Strong Maintainability: Provides dedicated spare parts such as valve plug and seat assemblies, sealing packing, etc., facilitating later maintenance and replacement.

Technical Parameters

Basic Performance Parameters

Parameter Name	Value
Body Design Pressure Rating	PN25
Maximum Allowable Pressure (PMA)	25 bar g @170 ℃
Maximum Allowable Temperature (TMA)	260 ℃ @10.5 bar g
Minimum Allowable Temperature	-10 ℃
Maximum Operating Pressure (PMO)	25 bar g @170 ℃
Maximum Operating Temperature (TMO)	260 ℃ @10.5 bar g
Minimum Operating Temperature	-10 ℃
Maximum Cold Test Pressure	38 bar g
Connection Type	BSP Threaded Connection

Size and KV Value Correspondence Table

Size	KV Value	CV Value (UK)	CV Value (US)
½"	1.3	1.2519	1.5028
¾"	1.6	1.5408	1.8496
1"	4.2	4.0446	4.8552
1¼"	13.8	13.3894	15.9528
1½"	19.7	19.0711	22.7732
2"	28	27.064	32.368

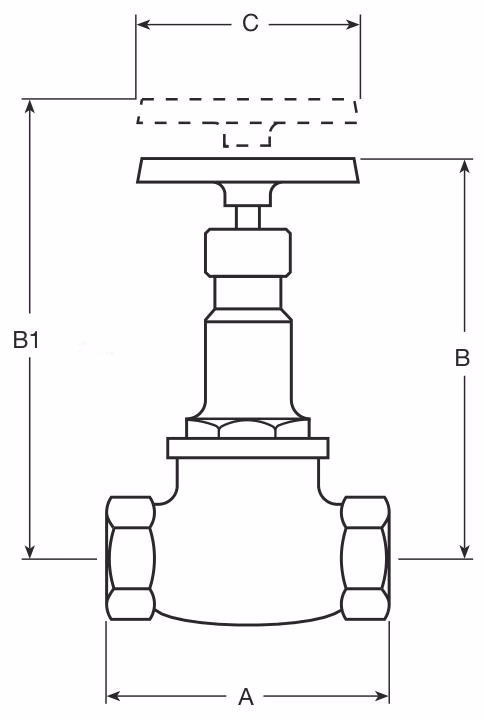

Dimensions and Weight Parameters (Approximate Values)

Size	A (mm)	B (mm)	B1 (mm)	C (mm)	Weight (kg)
½"	67	102	110	60	0.60
¾"	80	110	125	60	0.86
1"	95	130	146	80	1.30
1¼"	112	144	160	100	2.08
1½"	132	144	160	100	2.86
2"	160	174	203	120	4.65

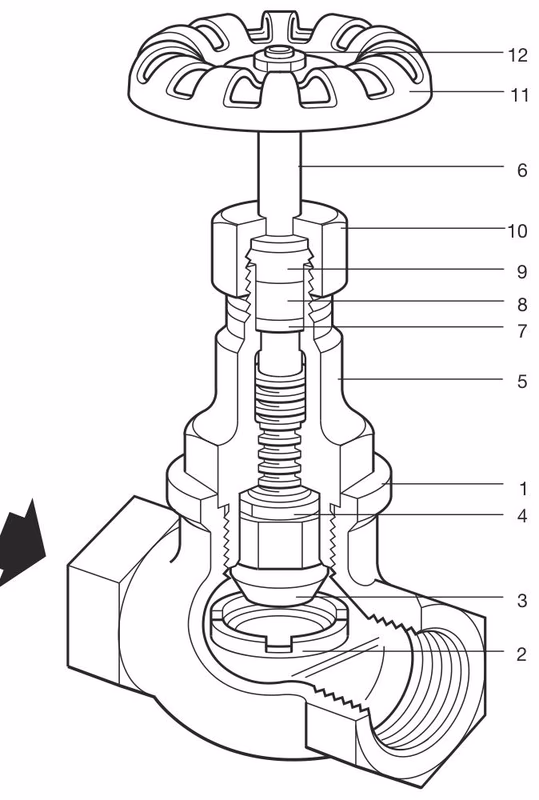

Component Material Details

No.	Component Name	Material Specification
1	Body	Gunmetal (BS1400 LG2)
2	Seat	Stainless Steel (AISI 431)
3	Plug	Stainless Steel (AISI 431)
4	Locking Nut	Gunmetal (BS1400 LG2)
5	Bonnet	Gunmetal (BS1400 LG2)
6	Stem	Austenitic Stainless Steel (BS 970 303 S31) / Gunmetal (BS1400 LG2)
7	Gasket	Gunmetal
8	Packing	PTFE
9	Gland	Gunmetal (BS1400 LG2)
10	Gland Nut	Gunmetal (BS1400 LG2)
11	Handwheel	Aluminum
12	Handwheel Nut	Brass

Application Areas

The HV3 globe valve is widely used in the following scenarios due to its multi-media adaptability and stable pressure-temperature tolerance:

• Industrial Steam Systems: Medium control for steam transmission and heating equipment
• Water Supply and Drainage Systems: On-off regulation of cold and hot water pipelines
• Hydraulic and Lubrication Systems: Transmission control of oil-based media such as engine oil and hydraulic oil
• Compressed Air Systems: Pressure regulation and on-off control of compressed air pipelines
• Other Industrial Scenarios: Suitable for various gas and liquid medium transmission pipelines that meet pressure and temperature range requirements
