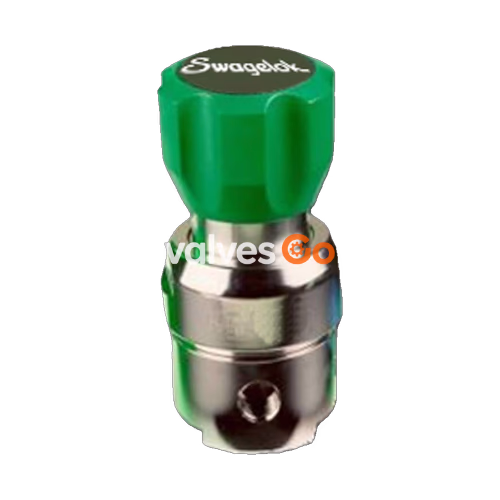

Swagelok KPR1FRF412A20000 is a single stage, stainless steel pressure reducing regulator designed to achieve reliable pressure reduction while minimizing droop and maintaining a constant downstream pressure.
Specifications
| Specification | Value |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Flow Coefficient | 0.06 Cv |
| Handle | Green Knob Handle |
| Maximum Inlet Pressure | 3600 psig (248 bar) |
| Maximum Temperature, °F (°C) | 176 (80) |
| Port Configuration | F |
| Ports | 1/4 in. Female NPT |
| Pressure Control Range | 0 to 100 psig (6.8 bar) |
| Sensing Mechanism | X750 Diaphragm |
