Burkert Type 2100 pneumatically operated 2/2-way angle seat valve is specially optimized for decentralized process automation and fulfills the tough criteria in process environments. Its unique design allows easy integration of automation units in all expansion stages, from electrical/optical position feedback to pneumatic control and integrated fieldbus interface.

Maximum service life and tightness are achieved by the proven self-adjusting v-seal packing gland. The highly integrated system of valve and automation unit is characterized by its compact and smooth design, integrated pilot air ducts, protection classes IP65/67, NEMA Type 4X, and high resistance to chemicals.

Key Features

• High flow rates
• Long service life
• Easy integration of automation units with ELEMENT
• Flow-optimised stainless steel valve body with sleeve, clamp or weld connection
• Suitable for steam

General Technical Data

Product properties	Description
Design	Angle seat valve
Nominal diameter	DN 10...DN 80, NPS 3/8...NPS 3
Safety setting	Normally closed (control function A), normally open (control function B)
Flow direction	Flow to open (below seat), flow to close (above seat)
Operating pressure	0 bar(g)...25 bar(g), vacuum variants...- 0.9 bar(g) (option)
Nominal pressure	PN 25 (DIN EN 1333), Class 150 (DIN EN 1759)
Pilot pressure	2.5 bar(g)...10 bar(g)
Seat leakage	Leakage rate A (DIN EN 12266-1), seat seal PTFE and PEEK, test medium air
Operating medium	Steam, water, neutral gases, alcohols, oils, fuels, hydraulic fluids, salt solutions, alkalis, organic solvents, oxygen and fuel gases
Medium temperature	-40 °C...+230 °C
Viscosity	Max. 600 mm²/s
Control medium	Air, neutral gases
Ambient temperature	-10 °C...+100 °C
Degree of protection	IP65/67

Control Functions

WARNING

Risk of damage due to bursting pipes and bursting equipment when the flow is above the seat. In the case of liquid mediums, water hammer can occur causing pipes and the device to burst. Do not use valves with flow above the seat for liquid mediums.

Flow direction below seat for liquids, steam and gases

Control function A (CF A): Pneumatically operated 2/2-way on/off valve. Flow direction below seat. Normally closed by spring force.

Control function B (CF B): Pneumatically operated 2/2-way on/off valve. Flow direction below seat. Normally opened by spring force.

Flow direction above seat for steam and gases

Control function A (CF A): Pneumatically operated 2/2-way on/off valve. Flow direction above seat. Normally closed by spring force.

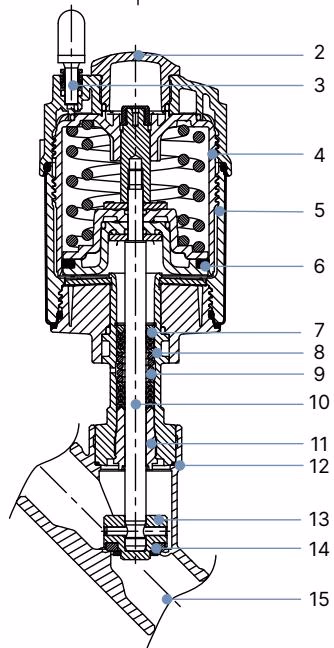

Materials

No.	Element	Material
1	Ground terminal	Stainless steel 1.4301/1.4305 only for ATEX variant
2	Optical position indicator	Polysulfone PSU
3	Pilot air ports	Push-in connector PP (Standard)
4	Actuator cover	PPS
5	Actuator casing	Stainless steel 1.4561 (316Ti)
6	Piston seal	FKM
7	Spring	Stainless steel 1.4310
8	Pipe	Stainless steel 1.4401 (316)/1.4404 (316L)
9	Packing gland	PTFE V-Rings (filled), with spring compensation
10	Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
11	Spindle guide	PEEK
12	Body seal	Graphite, PTFE (Option)
13	Swivel plate	Stainless steel 1.4401 (316)/1.4404 (316L)
14	Seat seal	PTFE, PEEK (Option)
15	Valve body	Stainless steel CF3M

INFO

The lubricants for packing gland and actuator are classified according to NSF H1.

Approvals and Conformities

• Explosion protection: EPS 18 ATEX 2 008 X II 2G Ex h IIC T4…T2 Gb / II 2D Ex h IIIC T135 °C…T300 °C Db. IECEx EPS 18.0007X.
• Drinking water: Suitable for use in drinking water applications (TrinkwasserV).
• Foods and beverages/Hygiene: FDA, USP, EC Regulation 1935/2004, China food GB Standards.
• Others: DNV GL classification, Suitability for oxygen, Fuel gases (CE), TA Luft.

Safety Instructions for Ex Area

DANGER

Explosion hazard due to electrostatic discharge! If statically charged devices or persons discharge suddenly, there is an explosion risk in the potentially explosive area.

• Take appropriate measures to ensure that no electrostatic charge can build up in the potentially explosive area.
• Only clean the device surface by wiping it gently with a damp or antistatic cloth.
• Ground the actuator and the valve body.
• If a plastic valve body is used, ground the actuator separately.

TIP

Networking and combination The angle seat valve Type 2100 can be combined with the position feedback Type 8690/8697 and the control head Type 8691/8695 to form the valve system on/off ELEMENT Type 8801-YE.
