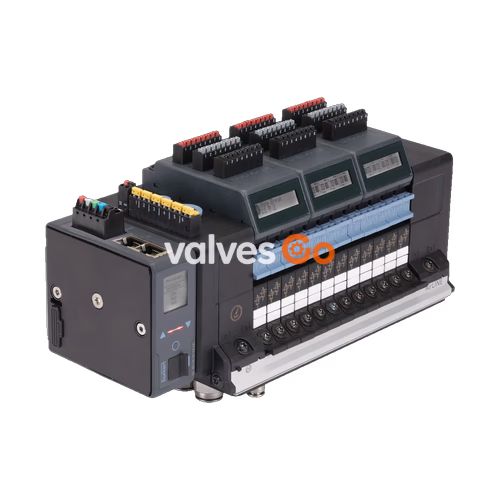

BURKERT Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller. This, therefore, enables a fast overview of the plant status.

The hardware is optimised for installation at the bottom of the control cabinet. Installation on a standard rail is, of course, also possible. Moreover, key pneumatic functions ensure increased process reliability. For instance, check valves in the exhaust air ducts make sure there is no unplanned actuation due to pressure peaks.

Key Features:

• Safety-related shut-off of valves possible
• Higher plant availability with PROFINET S2 (system redundancy)
• Process reliability through pneumatic functions
• Optimised for installation at the bottom of the control cabinet
• EX-variants: ATEX / IECEx Zone 2, CCC, cURus HazLoc CL I, II, III Div 2

General Technical Data

Product properties	Description
Material	Body: PA (polyamide) Seal: NBR and PUR
Width per station	11 mm
Manual override	Latching, spring return (optional: lockable)
Number of valve slots	Max. 24
Maximum number of valve functions	Max. 48
Pneumatic intermediate supply	Optional for the variants with 16, 20 and 24 valve slots
Pressure range	Vac...10 bar
External supply air	3...10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Operating voltage	24 V DC (±10% tolerance)
Nominal power of each valve	0.7 W (0.175 W after power reduction)
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Degree of protection	IP20, IP65 in closed control cabinets
Ambient temperature	-10 °C...+55 °C

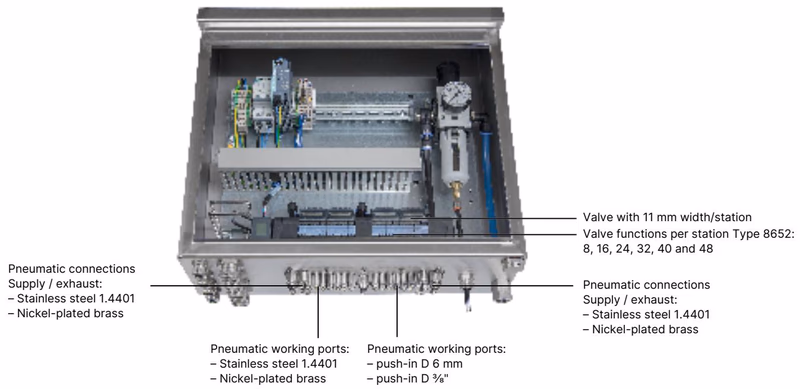

AirLINE Quick

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

• Reduced space requirement in the control cabinet
• This makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Product properties	Description
AirLINE Quick Adapter Plate	Stainless steel 1.4301 / Anodised aluminium
Pneumatic connection	Stainless steel 1.4401 / Nickel-plated brass
Valve functions per station	8, 16, 24, 32, 40 and 48
Pneumatic Supply / Exhaust	Push-in D 10 mm, 3/8"
Pneumatic working ports	Push-in D 6 mm, 1/4"

Circuit Functions

Standard Functions

• Circuit function C (CF C): 3/2-way solenoid valve, servo-controlled, normally closed.
• Circuit function D (CF D): 2 × 3/2-way solenoid valve, servo-controlled, normally open.
• Circuit function H (CF H): 5/2-way solenoid valve, servo-controlled. Pressure applied via port (1).
• Circuit function L (CF L): 5/3-way solenoid valve. In middle position all ports locked.
• Circuit function M (CF M): 5/3-way solenoid valve. In middle position ports 2 and 4 ventilated.
• Circuit function N (CF N): 5/3-way solenoid valve. In middle position ports 2 and 4 exhausted.
• Circuit function Z (CF Z): 5/2-way solenoid valve. Impulse variant with 2 coils.

SIA Variant (for safety-related shut-off)

• Circuit function C (CF C): 3/2-way solenoid valve, servo-controlled, normally closed.
• Circuit function H (CF H): 5/2-way solenoid valve, servo-controlled.
• Circuit function L (CF L): 5/3-way solenoid valve, servo-controlled. In middle position all ports locked.

Approvals and Conformities

Conformity and Standards

In accordance with the Declaration of Conformity, the product is compliant with the EU Directives. Type Rating (NEMA 250): Type 4X in closed enclosures (8652 with stainless steel variant).

• Explosion protection: ATEX: II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc. IECEx: Ex ec IIC Gc / Ex tc IIIC Dc.
• North America (USA/Canada): UL Listed (UL 61010-1). UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Division 2).
• China Compulsory Certification (CCC): Suitable for import and use for hazardous applications in China.

Dimensions

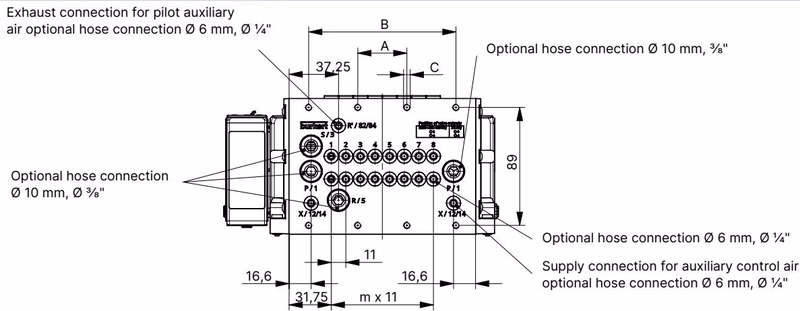

Variant 4-, 8- and 12-fold

Variant	A	B	C	m	n
4-fold	66	-	4 x M5	3	1
8-fold	35	111	8 x M5	7	2
12-fold	77	154	10 x M5	11	3

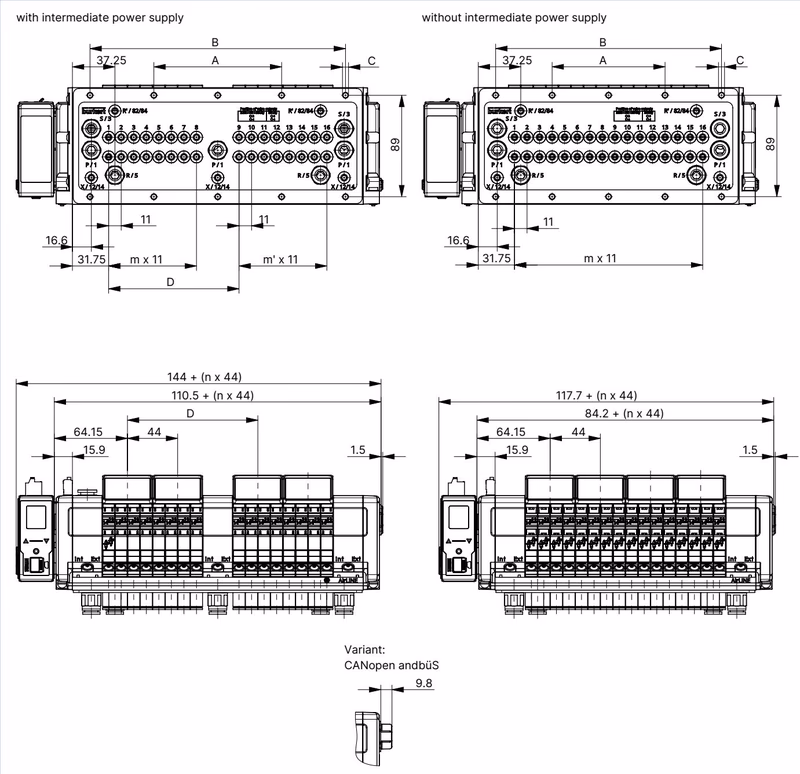

Variant 16-, 20- and 24-fold

Variant	A	B	C	D	m	m'	n
16-fold with intermediate supply	112	224	10 x M5	114.3	7	7	4
20-fold with intermediate supply	134	268	10 x M5	158.3	11	7	5
24-fold with intermediate supply	156	312	10 x M5	158.3	11	11	6
16-fold without intermediate supply	99	198	10 x M5	-	15	-	4
20-fold without intermediate supply	121	242	10 x M5	-	19	-	5
24-fold without intermediate supply	143	286	10 x M5	-	23	-	6

Product Installation

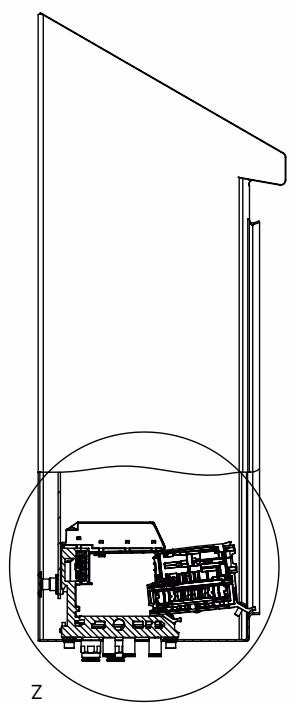

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

Product Design and Assembly

Electronic module with digital inputs (optional)

The digital inputs are supplied (24 V) by the electronic module. Current is limited to maximum 30 mA per digital input. Standard 3-wire sensors and 2-wire sensors with voltages between 10…30 V as well as mechanical limit switches can be used.

Valves Type 6534 for safety-related shut-off, SIA variant (optional)

Type 6534 valves are equipped with additional connection terminals. A valve circuit can therefore be interrupted by an external switch. Manual override is not required for these valve variants. Technical data of Type 6534 valves, SIA variant correspond to standard device data. To use the shut-off function, connect the terminal to a potential-free contact (mechanical switch or relay).

Example Configuration

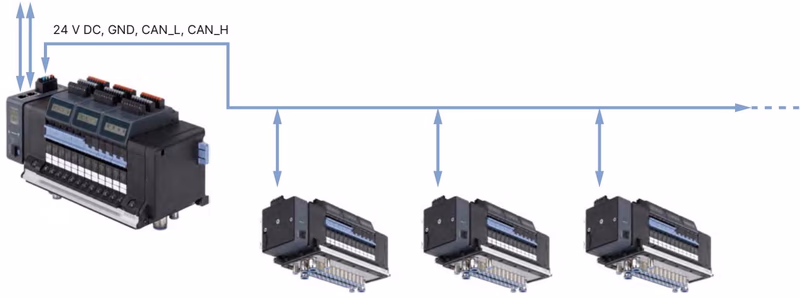

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.
