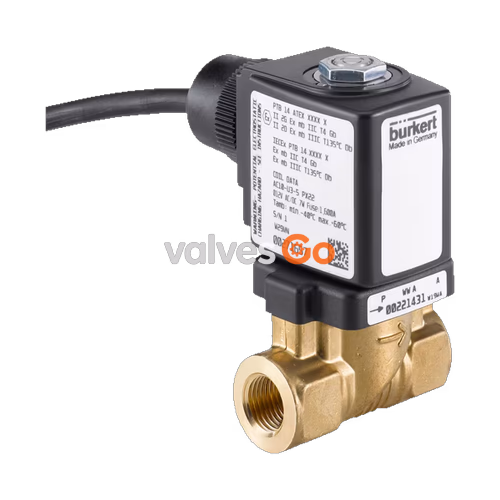

BURKERT Type 6213 EV is a servo-assisted 2/2-way diaphragm valve. The spring coupling of the diaphragm supports the opening process in the valve. In its standard variant, the valve is suitable for deployment with liquids. A minimum differential pressure is required for full opening. For gas and vacuum applications, a special variant is available (HP00) that opens the valve without differential pressure. Various diaphragm materials are available depending on the actual application. The body is available in brass, stainless steel, and gunmetal. To reduce electrical power consumption during operation, coils with integrated Kick-and-Drop (KD) electronics featuring double coil technology are available.

General Technical Data

Product properties	Description
Seal	NBR, FKM, EPDM
Body	Brass acc. to DIN EN 50930-6, Stainless steel 1.4408, Gunmetal (external thread) DN 10...DN 20
Coil	Polyamide, epoxy (insulation class H)
Valve inner parts	Brass body: brass, stainless steel and PPS Stainless steel body: stainless steel and PPS Gunmetal body: stainless steel and PPS (external thread) DN 10...DN 20
Orifice	Standard: DN 10...DN 40 HP00: DN 13...DN 20
Circuit function	A (2/2-way valve, normally closed)
Thermal insulation class	Epoxy coil class H
Duty cycle	100 % continuous operation; KD coil max. 6 switching cycles/minute
Operating voltage	Standard: 24 V DC, 24 V 50 Hz, 230 V 50 Hz, 110 V 50 Hz, 120 V 60 Hz HP00: 24 V DC, 24 V 50/60 Hz, 230 V 50/60 Hz
Voltage tolerance	±10%
Degree of protection	IP65 with cable plug Type 2518 (IP67 on request)
Installation	As required, preferably with actuator upright

Medium Temperature

Seal Material	Temperature Range
With NBR	-10 °C...+80 °C
With FKM	0 °C...+90 °C with polyamide coil 0 °C...+120 °C with epoxy coil
With EPDM	-30 °C...+90 °C with polyamide coil -30 °C...+100 °C with epoxy coil
With EPDM (Drinking water approval)	Application range of cold and hot water up to +60 °C

Approvals and Conformities

• Explosion Protection: Optional ATEX/IECEx according to category 2 (zone 1/21).
• North America (USA/Canada): Optional UL Listed (UL 429), UL Recognized, CSA approved (CSA 139), and FM (Factory Mutual) Explosion Protection.
• Drinking Water: Suitable for use in drinking water applications (UBA assessment principles). French ACS approval available.
• Fire Protection on Railway Vehicles: Optional compliance with DIN EN 45545 parts 2 and 5.
• Safety Shut-off Valves: Compliant with DIN EN ISO 23553-1 (variable code PD22).
• VDE: Optional Certificate of conformity with factory surveillance (DIN EN 60730-1, DIN EN IEC 60730-2-8).

Materials

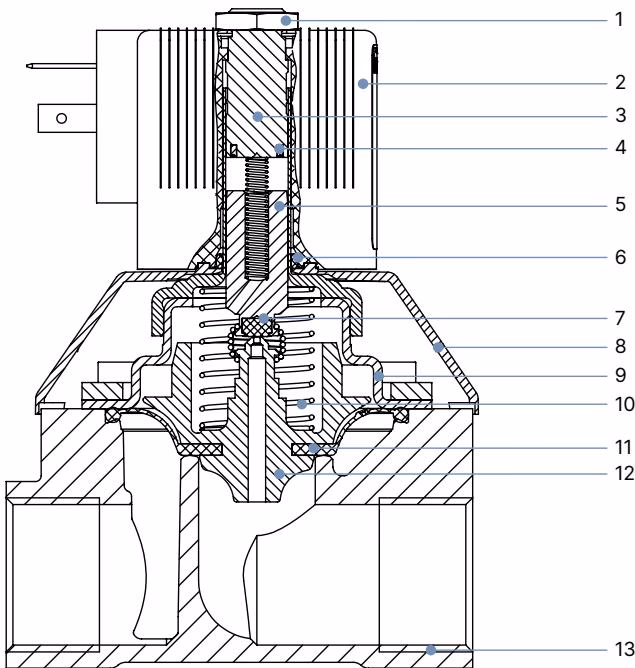

The sectional view shown corresponds to the standard variant (DN 20). For other variants and nominal diameters, the sectional view varies.

No.	Element	Material
1	Nut	Steel (thick-film passivated according to RoHS), Stainless steel 1.4305, PTFE-coated
2	Coil	Polyamide or epoxy
3	Stopper	Stainless steel 1.4113
4	Shading ring (only AC variant)	with brass body: copper (Cu) with stainless steel body: silver (Ag)
5	Magnetic core	Stainless steel 1.4113
6	O-ring	FKM
7	Plunger seal	NBR, FKM, EPDM
8	Bonnet	PA6
9	Cover	DN 10...DN 25: stainless steel 1.4301 DN 40: brass, stainless steel 1.4408
10	Spring	Stainless steel 1.4310
11	Diaphragm	NBR, FKM, EPDM
12	Diaphragm support	PPSGF40 in combination with brass and accordingly stainless steel parts
13	Valve body	Brass, stainless steel 1.4408, Gunmetal with external thread

Dimensions

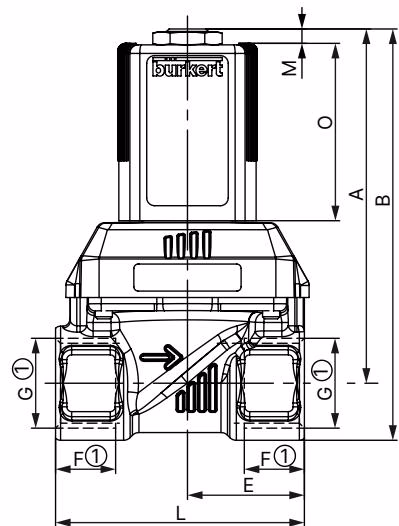

Standard Variant with Brass and Stainless Steel Body

Note

• Dimensions in mm
• The dimensions F1 and G1 apply to G thread.
• The dimensions F2 and G2 apply to NPT thread.
• The dimensions F3 and G3 apply to Rc thread.

DN	A (MS/VA)	B	C	D	E	G1	G2	G3	L (MS/VA)	SW	Coil size
10	71.1	82.1	36	46	22	G 1/4	NPT 1/4	-	50	22	5 and 6
10	71.1	82.1	36	46	22	G 3/8	NPT 3/8	Rc 3/8	50	22	5 and 6
13	82.6	95.9	44.5	56.7	27.25	G 1/2	NPT 1/2	Rc 1/2	58	27	5 and 6
20	97.1	113.1	65	76.6	37	G 3/4	NPT 3/4	Rc 3/4	80	32	5 and 6
25	143.4	163.4	77	88	46	G 1	NPT 1	Rc 1	95	41	K and L
40	159.4	189.4	104.5	117	61	G 1 1/2	NPT 1 1/2	Rc 1 1/2	126	60	K and L

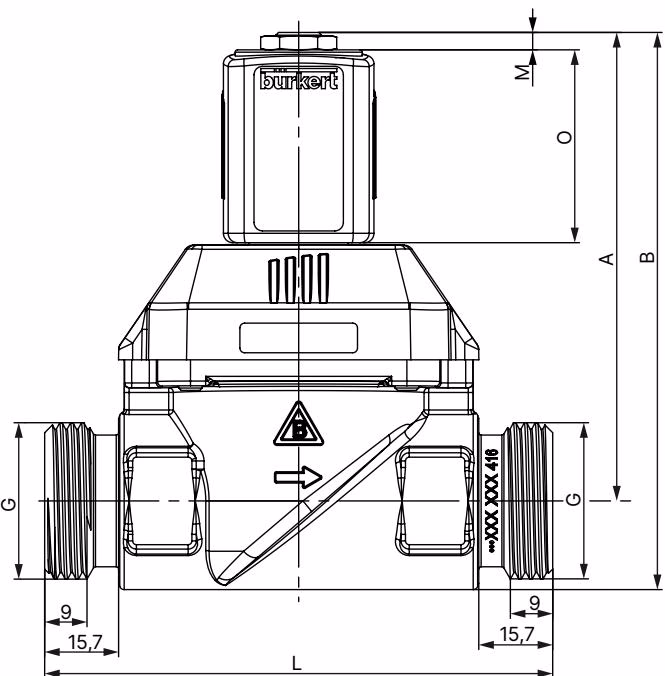

Gunmetal Variant with External Thread

DN	A	B	C	D	G	L	SW	Coil size
10	73.1	86.1	36	46	G 1/2	80	26	5 and 6
13	84.6	100.6	44.5	56.7	G 3/4	89	32	5 and 6
20	99.6	118.5	65	76.6	G 1	108	37.7	5 and 6

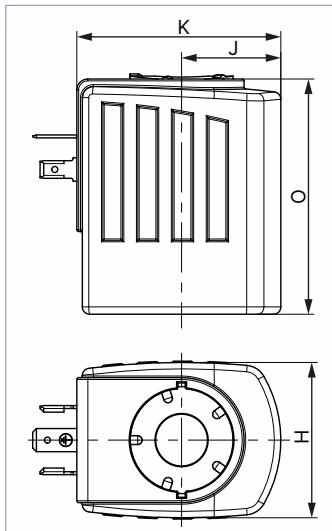

Coil Dimensions

Coil size	H	J	K	O	M
5	32	20.5	45	41	3.4
6	40	23.5	51	41	3.4
K	42	27	55.5	64	7
L	65	37.5	72	64	7

Installation

DANGER!

Risk of injury from high pressure in the system

• Before loosening lines or valves, switch off the pressure and vent the lines.

Risk of injury from electric shock

• Before reaching into the device or the system, switch off the power supply and secure it against reactivation.
• Observe the applicable accident prevention and safety regulations for electrical devices.

WARNING!

Risk of injury due to improper installation

• Installation must be carried out by authorised technicians only and with the appropriate tools.

Risk of injury from unintentional activation of the system and uncontrolled restart

• Secure the system against unintentional activation.
• Ensure a controlled restart after installation.

Before Installation

• Installation position: Any, preferably with actuator on top.
• Clean pipelines of any contamination.
• Install a dirt trap upstream of the valve inlet (≤ 500 µm).

Installation Steps

NOTICE!

Breaking hazard

• Do not use the solenoid as a lever arm.
• Hold the device on the body using an open-end wrench and screw into the pipeline.
• Observe the flow direction: the arrow on the body indicates the flow direction.

Electrical Connection of Cable Plug

1. Screw cable plug tight (for approved types see data sheet), ensuring a maximum torque of 1 Nm.
2. Check that the valve seal is correctly seated.
3. Connect protective conductor and check electrical continuity between solenoid and body.
4. Observe the voltage and current type according to the type label.

Maintenance and Troubleshooting

WARNING!

Risk of injury due to improper maintenance work

• Maintenance may be carried out by authorised technicians only and with the appropriate tools.

Overheating, risk of fire

• Connecting the solenoid without a pre-installed valve will cause overheating and destroy the solenoid.
• Only connect the solenoid after the valve has been installed.

Solenoid Installation

1. Slide solenoid housing onto core guide tube.
2. Screw solenoid with nut. Observe tightening torques (AC10: 5 Nm, AC19: 10 Nm).
3. Always tighten nut with an open-end wrench. Using other tools may damage the device.
4. Check protective conductor.

Troubleshooting

If faults occur, check whether:

• The device is installed according to regulations and the electrical and fluid connections are properly executed.
• The device is not damaged.
• All screws have been tightened.
• Voltage and pressure have been applied.
• The pipelines are clean.

Valve does not actuate

• Short circuit or solenoid interrupted.
• Core or core area contaminated.
• Operating pressure outside the permitted pressure range.

Valve does not close

• Interior of the valve contaminated.
• Small control bore in diaphragm blocked.
• Valve opened by manual override.
