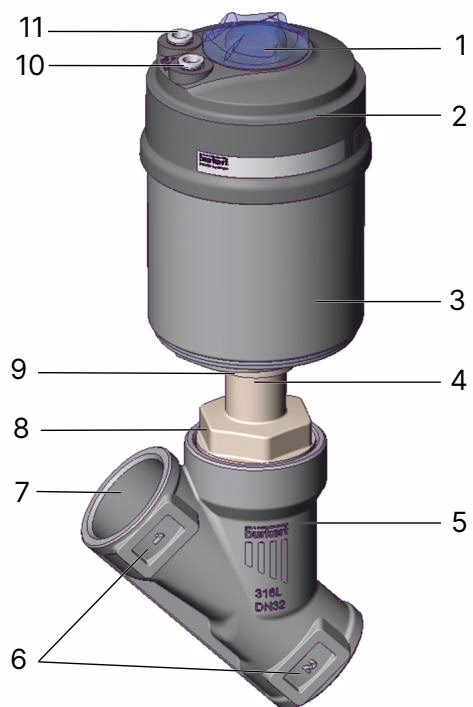

Burkert Type 2100 pneumatically operated 2/2-way angle seat valve is specially optimized for decentralized process automation and fulfills the tough criteria in process environments. Its unique design allows easy integration of automation units in all expansion stages, from electrical/optical position feedback to pneumatic control and integrated fieldbus interface.

Maximum service life and tightness are achieved by the proven self-adjusting v-seal packing gland. The highly integrated system of valve and automation unit is characterized by its compact and smooth design, integrated pilot air ducts, protection classes IP65/67, NEMA Type 4X, and high resistance to chemicals.

Control Functions

Risk of damage due to bursting pipes

Risk of damage due to bursting pipes and bursting equipment when the flow is above the seat. In the case of liquid mediums, water hammer can occur causing pipes and the device to burst. Do not use valves with flow above the seat for liquid mediums.

Control Function	Description
CFA	Control function A (CF A) Pneumatically operated 2/2-way on/off valve Flow direction below seat or above seat Normally closed by spring force
CFB	Control function B (CF B) Pneumatically operated 2/2-way on/off valve Flow direction below seat Normally opened by spring force
CFI	Control function I (CF I) Pneumatically actuated on/off valve on both sides, 2/2-way Rest position not defined (unpressurised)

Flow Direction

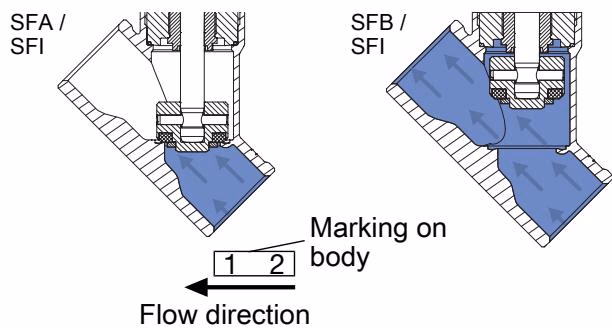

Flow direction below the seat

Only use flow direction below the seat for liquid media, gases, and vapours. As the medium is present under the swivel plate, the operating pressure contributes to the opening of the valve.

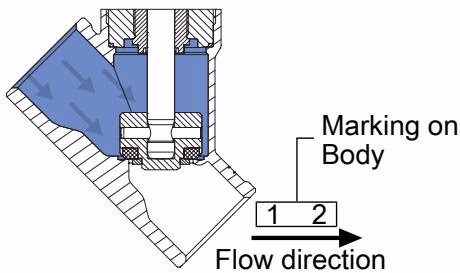

Flow direction above the seat

Only use flow direction above the seat for gases and vapours, and for valves with control function A (closed by spring force in rest position). As the medium is present above the swivel plate, the operating pressure contributes to the closing of the valve. The operating pressure also supports the sealing of the valve seat.

Approvals and Conformities

• Explosion Protection: EPS 18 ATEX 2 008 X II 2G Ex h IIC T4…T2 Gb / II 2D Ex h IIIC T135 °C…T300 °C Db; IECEx EPS 18.0007X.
• Drinking Water: Suitable for use in drinking water applications. Materials comply with UBA assessment principles.
• Foods and Beverages/Hygiene: FDA Code of Federal Regulations compliant, USP biocompatible, EC Regulation 1935/2004 compliant, China food GB Standards compliant.
• DNV GL Classification: Accepted for installation on all vessels classed by DNV GL.
• Oxygen: Optional suitability for use with gaseous oxygen.
• Fuel Gases: Complies with Regulation (EU) 2016/426 and DVGW DIN EN 161 / DIN EN 16678.

Explosion hazard due to electrostatic charge

If statically charged devices or persons discharge suddenly, there is an explosion hazard in the potentially explosive area.

• Take appropriate measures to ensure that no electrostatic charge can build up in the potentially explosive area.
• Only clean the device surface by wiping it gently with a damp or antistatic cloth.
• Earth the actuator and the valve body.

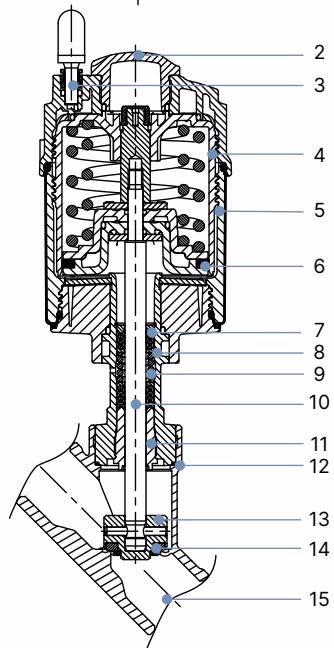

Materials

No.	Element	Material
1	Ground terminal	Stainless steel 1.4301/1.4305 only for ATEX variant
2	Optical position indicator	Polysulfone PSU
3	Pilot air ports	Push-in connector PP (Standard)
4	Actuator cover	PPS
5	Actuator casing	Stainless steel 1.4561 (316Ti)
6	Piston seal	FKM
7	Spring	Stainless steel 1.4310
8	Pipe	Stainless steel 1.4401 (316)/1.4404 (316L)
9	Packing gland	PTFE V-Rings (filled), with spring compensation
10	Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
11	Spindle guide	PEEK
12	Body seal	Graphite, PTFE (Option)
13	Swivel plate	Stainless steel 1.4401 (316)/1.4404 (316L)
14	Seat seal	PTFE, PEEK (Option)
15	Valve body	Stainless steel CF3M

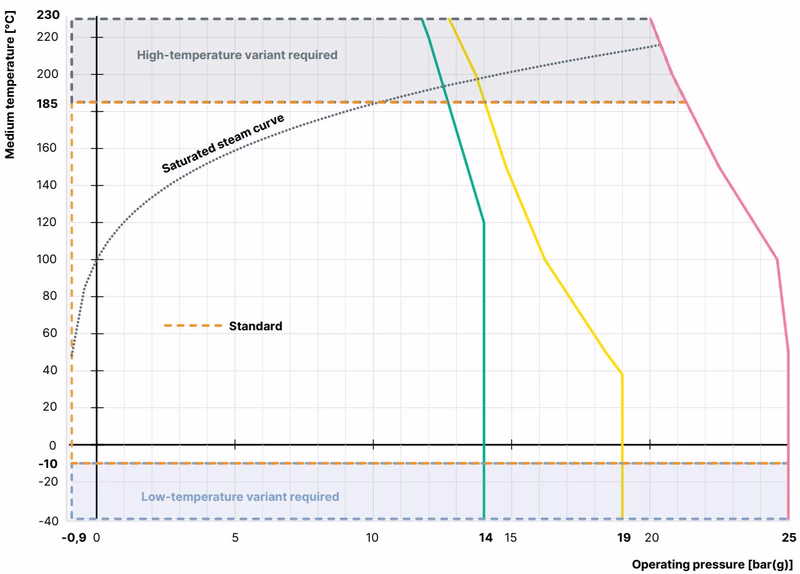

Operating Limits

In addition to the maximum operating pressures, the operating range of Bürkert process valves is limited by the nominal pressure according to the relevant standard.

Operating limits for optional variants

• High-temperature variant: Suitable for applications with steam, neutral gases, and other heat transfer mediums up to +230 °C.
• Water variant: For applications with water up to +200 °C, a special configuration of the packing gland increases service life significantly.
• Vacuum variant: Without leakage bore, this design is suitable for pressures down to -0.9 bar(g).
• Low-temperature variant: Suitable for minimum medium temperatures down to -40 °C.
