BURKERT 2186 Type 2000 pneumatically operated 2/2-way angle seat valve is designed for the controlled flow-rate of liquid and gaseous media. It features a stainless steel body with a weld end connection, a PA (Polyamide) actuator, and a PTFE seat seal. The reliable self-adjusting packing gland provides high sealing integrity. High flow rates are attained with the virtually straight flow path.

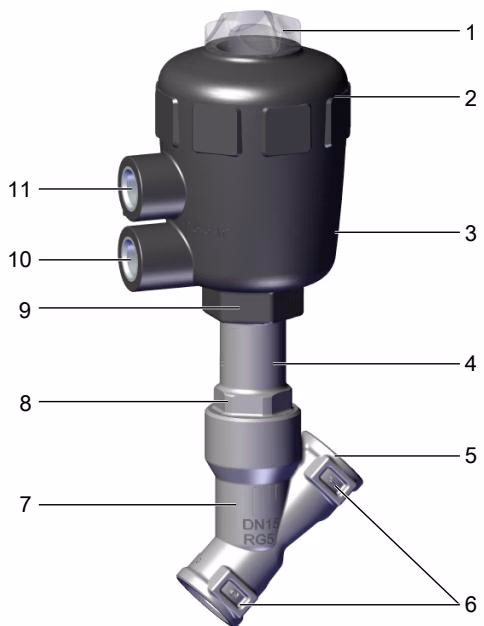

Product Structure

Control Function

Control function A (CF A): Pneumatically operated 2/2-way on/off valve. Normally closed by spring force.

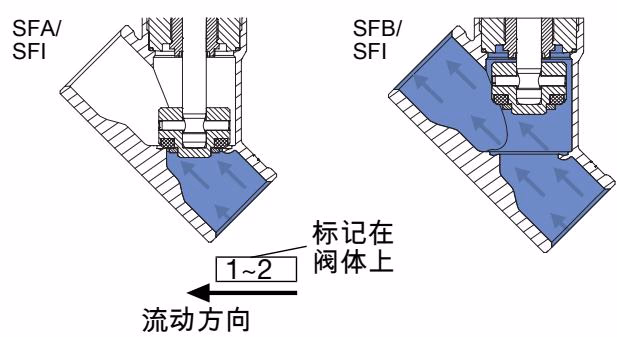

Flow direction below seat: As the medium pressure is under the pendulum disc, this pressure contributes to the opening of the valve. The flow inlet is under the valve seat. This configuration is suitable for liquids, steam, and gases, and prevents water hammer.

Technical Data

Property	Value
Operating pressure	0 to 10 bar
Nominal pressure	PN 25 (DIN EN 1333), Class 150 (DIN EN 1759)
Medium temperature	-10 °C to +185 °C
Ambient temperature	-10 °C to +60 °C
Kv value (water)	62 m³/h
Pilot pressure	3.2 to 7 bar

Materials

Component	Material
Valve body	Stainless steel CF3M
Actuator	PA (Polyamide)
Seat seal	PTFE
Spindle seal	PTFE V-rings with spring compensation
Spindle	Stainless steel 1.4401 / 1.4404

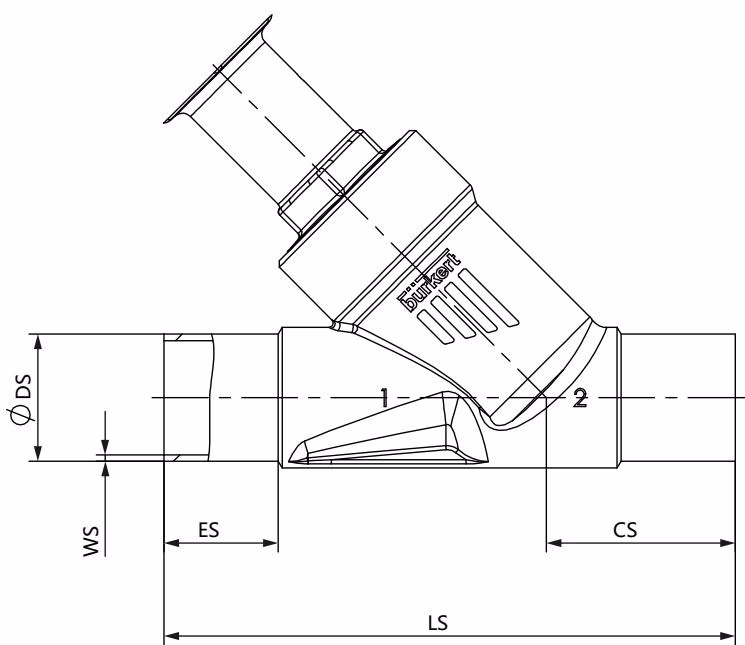

Dimensions (Welded Connection)

DIN EN ISO 1127 / ISO 4200 / DIN 11866 series B (DN 50):

• ES: 26 mm
• CS: 50 mm
• LS: 175 mm
• Ø DS: 60.3 mm
• WS: 2.0 mm

Risk of injury from high pressure in the system!

Turn off the pressure and vent the lines before loosening lines or valves.
