TLV P46SRW Thermodynamic Disc Steam Trap with Thermostatic Air Venting

TLV P46SRW inline repairable thermodynamic disc steam trap for medium capacity applications up to 4.6 MPaG. Features a bimetal ring for thermostatic air venting.

TLV P46SRW Thermodynamic Disc Steam Trap with Thermostatic Air Venting

TLV P46SRW is an inline repairable thermodynamic disc steam trap with a thermostatic air vent. It can be used without adjustment for medium capacity applications between 0.03 and 4.6 MPaG, such as steam mains, tracers, and coils. The trap discharges condensate at a temperature slightly lower than the saturation temperature. The built-in bimetal ring provides quick thermostatic air venting, significantly reducing startup time by discharging initial air and cold condensate.

Features

  • Inline replaceable module valve seat.
  • Air jacketing reduces no-load cycling.
  • Lapped disc provides a steam-tight seal without air binding.
  • Built-in screen for trouble-free service.
  • Bimetal ring provides quick thermostatic air venting.
  • Hardened stainless steel working surfaces.

TLV P46SRW cross section and features

Configuration and Exploded View

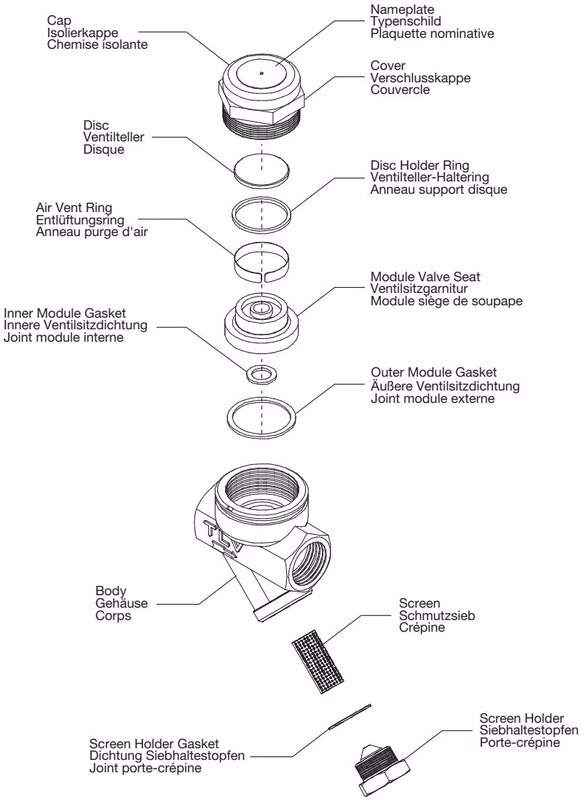

TLV P46SRW exploded view components

No.DescriptionNo.Description
1Body8Nameplate
2Module Valve Seat9Inner Module Gasket
3Cover10Screen
4Disc11Screen Holder Gasket
5Disc Holder Ring12Screen Holder
6Air Vent Ring (Bimetal)13Cap
7Outer Module Gasket

Proper Installation and Piping

WARNING

Install properly and DO NOT use this product outside the recommended operating pressure, temperature and other specification ranges. DO NOT subject the trap to condensate loads that exceed its discharge capacity. Failure to observe this precaution may lead to condensate accumulation, resulting in reduced equipment performance or damage.

  1. Before installation, remove all protective seals and blow out the inlet piping to remove dirt and oil.
  2. The trap can be installed horizontally or vertically, but make sure the arrow on the body points in the direction of flow.
  3. Install the trap in the lowest part of the pipeline or equipment so condensate flows naturally by gravity. The inlet pipe should be as short and have as few bends as possible.
  4. Support the pipes properly within 800 mm on either side of the trap.
  5. Install a bypass valve to discharge condensate, and inlet/outlet valves to isolate the trap during maintenance.
  6. Install a catchpot of the proper diameter. To prevent rust and scale from flowing into the trap, connect the inlet pipe 25–50 mm above the base of the T-pipe.

Operational Check

A visual inspection can aid in determining the necessity for immediate maintenance if the trap is open to atmosphere. Otherwise, use diagnostic equipment such as TLV TrapMan.

ConditionDescription
NormalCondensate is discharged in a short blast followed by a longer period of no drainage. Flash steam may be seen during and slightly after discharge.
BlockedNo condensate is discharged. The trap is quiet and surface temperature is low.
BlowingLive steam continually flows from the outlet, and there is a continuous metallic sound.
Steam LeakageLive steam is discharged through the trap outlet together with condensate, accompanied by a high-pitched sound.
ChatteringThe trap does not close properly. Steam is discharged in short rapid bursts.

Inspection and Maintenance

Operational inspections should be performed at least twice per year, or as called for by operating conditions.

PartInspection Procedure
Body, CoverCheck inside for damage, dirt, grease, oil film, rust or scale
GasketsCheck for warping or damage
ScreenCheck for clogging or corrosion
Disc, RingsCheck for damage or wear
Module Valve Seat SurfaceCheck for damage or wear

Tightening Torques:

  • Cover (P46SRW): 320 N·m (Distance Across Flats: 55 mm)
  • Screen Holder: 100 N·m (Distance Across Flats: 30 mm) Note: Coat all threaded portions with anti-seize.

Troubleshooting

ProblemCauseRemedy
No condensate is discharged (blocked)Screen clogged with rust/scale; Air vent or disc holder ring broken; Disc sticking; Steam-lockingClean; Replace ring; Perform bypass blow-down and cool trap
Steam leakage or blowingValve closure obstructed by scale; Worn parts; Back pressure exceeds allowable valueClean or replace screen; Replace worn parts; Use within pressure range
Valve chatteringForeign matter on disc/seat; Scratches or wearClean; Replace disc or valve seat
Leakage from other locationsCover loose; Gaskets damagedTighten cover; Replace module gaskets

Optional Blowdown Valve BD2

The BD2 Blowdown Valve, installed in place of the screen holder, uses internal pressure to blow out condensate, steam, dirt, and scale to the atmosphere. Always wear eye protection and heat-resistant gloves when operating the blowdown valve. Do not excessively loosen the BD2 valve when opening, as the stopper pin may break and cause the valve to blow off.
