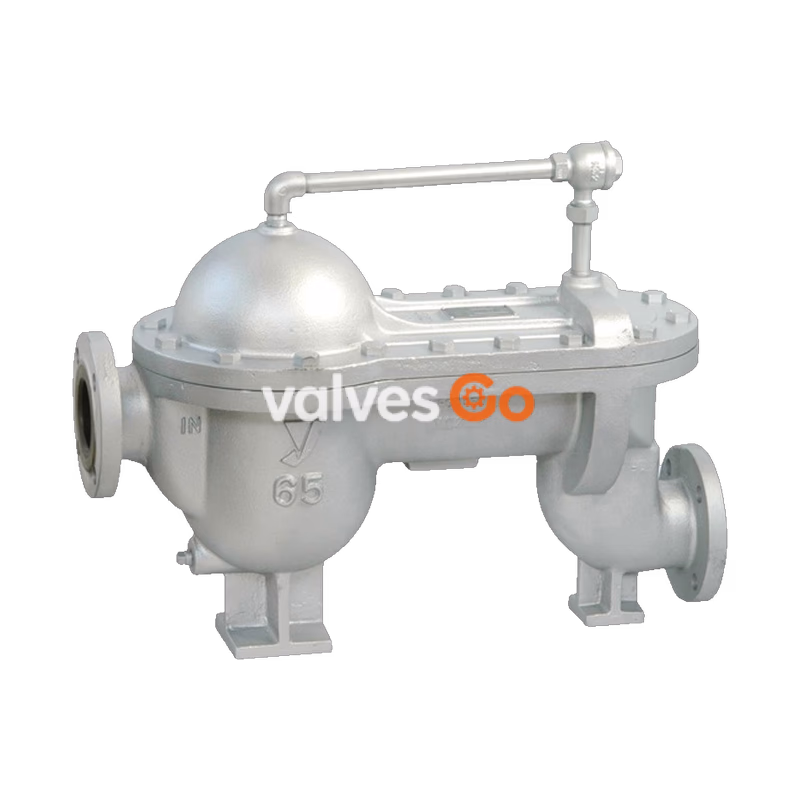

Yoshitake TF-1 is a lever float steam trap designed for steam condensate applications. It features a ductile cast iron body with bronze valve components and is suitable for working pressures from 0.01 to 0.3 MPa at temperatures up to 150℃. The integrated design utilizes a JIS 10K RF flanged connection and is available in 65A and 80A nominal sizes.

Features

• Built-in air vent prevents air-binding problems, offering higher durability.
• Reliable performance and large discharge capacity ensured by the lever float system.

Specifications

Application	Steam condensate
Working pressure	0.01-0.3 MPa
Max. temperature	150℃
Body Material	Ductile cast iron
Valve, valve seat Material	Bronze
Float Material	Stainless steel
Connection	JIS 10K RF flanged

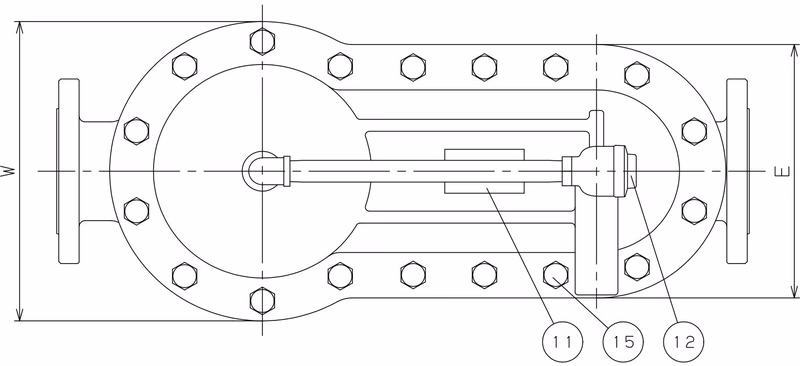

Dimensions and Weights

Nominal size	L	H	H1	H2	Weight
65A	680	530	260	100	84 kg
80A	680	530	260	100	84 kg

Note: H1 and H2 are reference values. Dimensions are in mm.

Maximum Continuous Discharge Capacity

Nominal size	0.05 MPa	0.10 MPa	0.15 MPa	0.20 MPa	0.25 MPa	0.30 MPa
65A	6,500	8,700	10,000	11,000	13,000	13,000
80A	6,500	8,700	10,000	11,000	13,000	13,000

Differential pressure refers to the working differential pressure in MPa. Capacities are in kg/h.

Safety Factor

The discharge capacities shown in the table and chart are the maximum values. In designing a system, select a steam trap with a sufficient safety factor (three times to five times the regular level).
