Product Overview

Armstrong 2010/2011/2022 2000 Series Inverted Bucket Steam Trap requires dedicated connectors for pipeline connection, offering three universal connector options (IS-2, IS-2L, IS-2F) to flexibly accommodate different installation requirements.

The universal connector design allows the steam trap to be quickly and easily installed in pipelines of any orientation. Long-term use requires no major pipeline modifications, retaining the reliability of inverted bucket operating principles while combining the multiple advantages of all stainless steel construction. The product saves energy and offers convenient installation and replacement, making it an ideal choice for steam system condensate drainage.

Product Features

• Fully enclosed, resilient shell design
• Compact and lightweight for easy installation layout
• Freeze-resistant performance, no damage in low-temperature environments
• Excellent corrosion resistance for complex operating conditions
• Equipped with universal connectors supporting multi-directional pipeline installation
• IS-2 universal connector includes built-in strainer and blowdown port, optional blowdown valve
• Three-year warranty covering materials, workmanship, and wear

Universal Connector Selection Guide

Connector Type	Application	Key Features
IS-2	Horizontal installation	Built-in strainer and blowdown port, optional blowdown valve
IS-2L	Vertical installation (flanged)	Compatible with 2000 series flanged models, designed for vertical piping
IS-2F	Vertical installation (flanged)	Integral flanged design, compatible with 2000 series flanged models

Note: Default flow direction is right inlet, left outlet. Contact manufacturer for other configurations.

Technical Parameters

Operating Conditions

Model	Max Allowable Pressure (Shell)	Max Operating Differential
2010	2.8MPa@427°C	1.4MPa
2011	2.8MPa@427°C	2.8MPa
2022	4.5MPa@315°C, 4.3MPa@371°C, 4.16MPa@427°C	4.5MPa

General Parameters

• Max Differential Pressure: 4.5MPa

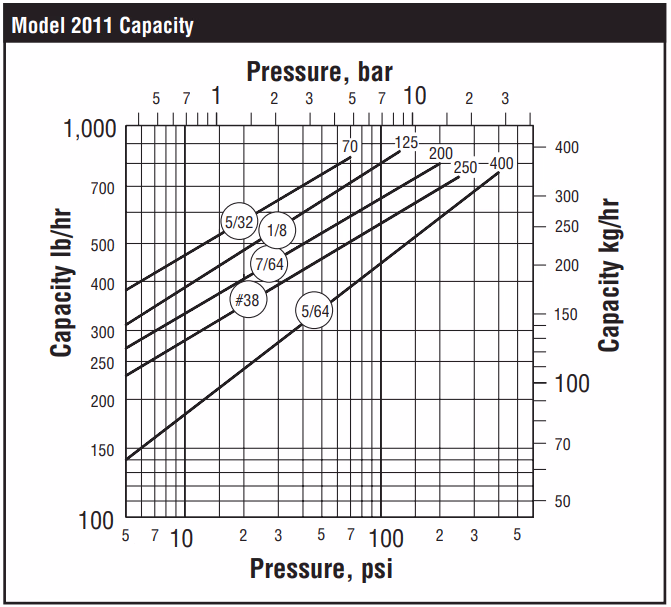

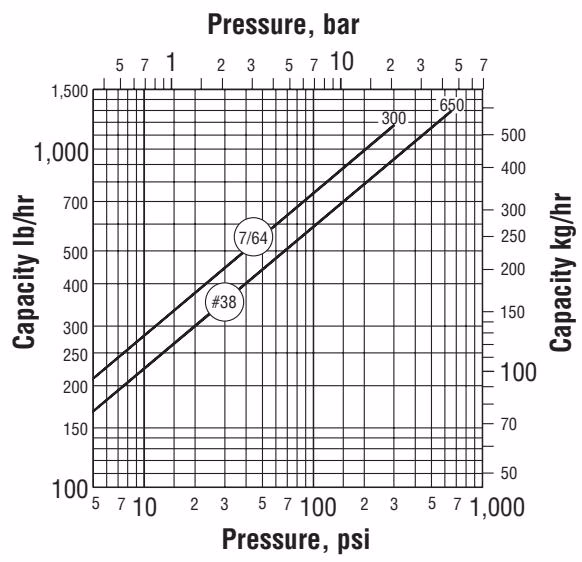

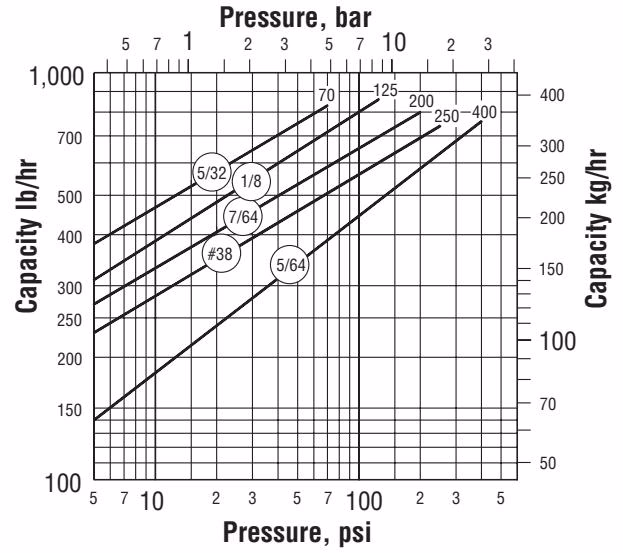

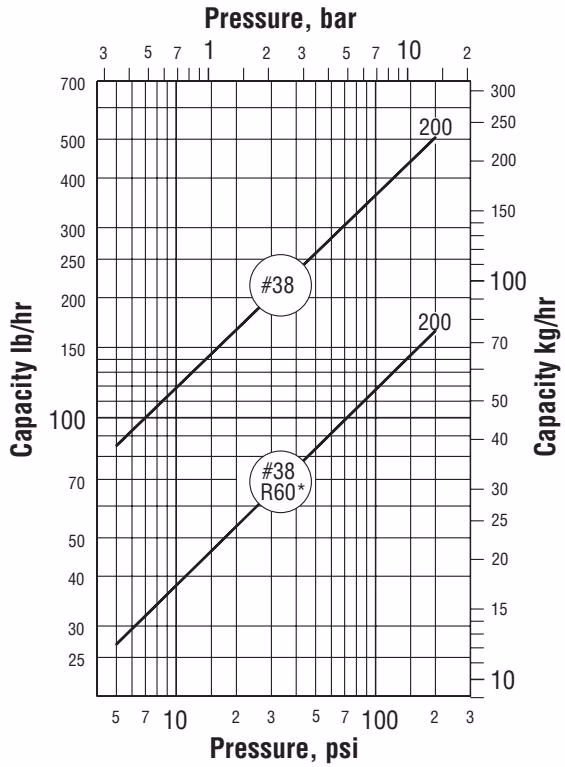

• Max Capacity: 590kg/h
• Service Distance: 60mm
• Connection Thread: 1/4"NPT
• Connector Material (Standard, IS-2, IS-2L): 304 Stainless Steel

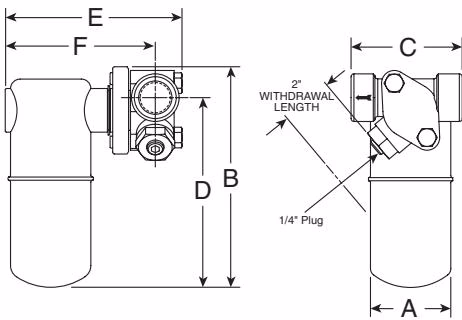

Dimensions & Weight (IS-2F Connector)

Basic Dimensions

Model	DN	A	D	F	L	Weight
2010	15	68	127	140	150	4.0
2010	20	68	127	140	150	5.3
2010	25	68	127	144	160	6.3
2011	15	68	152	140	150	4.1
2011	20	68	152	140	150	5.4
2011	25	68	152	144	160	6.4
2012	15	98	194	167	150	4.8
2012	20	98	194	167	150	6.1
2012	25	98	194	171	160	6.9

Dimensions in mm, Weight in Kg

G Dimension (By Flange Standard)

Model	DN	PN40 RF	CL150RF	CL300RF
2010	15	187	185	187
2010	20	192	190	197
2010	25	201	199	206
2011	15	187	185	187
2011	20	192	190	197
2011	25	201	199	206
2012	15	214	212	214
2012	20	219	217	224
2012	25	228	226	233

Dimensions in mm

H Dimension (By Flange Standard)

Model	DN	PN40RF	CL150RF	CL300RF
2010	15	175	172	175
2010	20	180	177	185
2010	25	185	182	190
2011	15	200	197	200
2011	20	205	202	210
2011	25	210	207	215
2012	15	245	242	245
2012	20	250	247	255
2012	25	255	252	260

Dimensions in mm

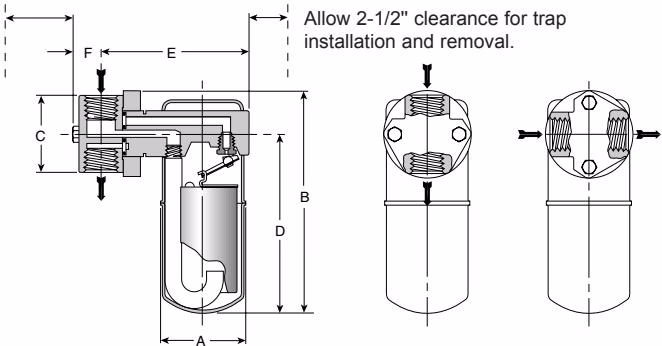

Dimensions & Weight (Other Connection Types)

Basic Dimensions

Model	DN	A	C	D	F	Weight
2010 IS-2	15	68	89	127	120	4.0
2010 IS-2	20	68	89	127	120	5.3
2010 IS-2	25	68	102	127	124	6.3
2011 IS-2	15	68	89	152	120	4.1
2011 IS-2	20	68	89	152	120	5.4
2011 IS-2	25	68	102	152	124	6.4
2022 IS-2	15	98	89	194	147	4.8
2022 IS-2	20	98	89	194	147	6.1
2022 IS-2	25	98	102	194	151	6.9
2010 IS-2L	20	68	89	127	140	5.3
2010 IS-2L	25	68	102	127	144	6.3
2011 IS-2L	20	68	89	152	140	5.4
2011 IS-2L	25	68	102	152	144	6.4
2022 IS-2L	20	98	89	194	167	6.1
2022 IS-2L	25	98	102	194	171	6.9

Dimensions in mm, Weight in Kg

G Dimension (By Flange Standard)

Model	DN	PN63RF	CL600RF
2010 IS-2	15	172	187
2010 IS-2	20	185	197
2010 IS-2	25	195	206
2011 IS-2	15	172	187
2011 IS-2	20	185	197
2011 IS-2	25	195	206
2022 IS-2	15	200	194
2022 IS-2	20	212	204
2022 IS-2	25	222	213
2010 IS-2L	20	205	217
2010 IS-2L	25	215	226
2011 IS-2L	20	205	217
2011 IS-2L	25	215	226
2022 IS-2L	20	232	224
2022 IS-2L	25	242	233

Dimensions in mm

H Dimension (By Flange Standard)

Model	DN	PN63RF	CL600RF
2010 IS-2	15	180	175
2010 IS-2	20	192	185
2010 IS-2	25	197	190
2011 IS-2	15	205	200
2011 IS-2	20	218	210
2011 IS-2	25	223	215
2022 IS-2	15	246	242
2022 IS-2	20	259	252
2022 IS-2	25	264	257
2010 IS-2L	20	192	185
2010 IS-2L	25	197	190
2011 IS-2L	20	218	210
2011 IS-2L	25	223	215
2022 IS-2L	20	259	252
2022 IS-2L	25	264	257

Dimensions in mm

L Dimension (By Flange Standard)

Model	DN	PN63RF	CL600RF
2010 IS-2	15	215	191
2010 IS-2	20	235	195
2010 IS-2	25	255	218
2011 IS-2	15	215	191
2011 IS-2	20	235	195
2011 IS-2	25	255	218
2022 IS-2	15	215	191
2022 IS-2	20	235	195
2022 IS-2	25	255	218
2010 IS-2L	20	235	195
2010 IS-2L	25	255	218
2011 IS-2L	20	235	195
2011 IS-2L	25	255	218
2022 IS-2L	20	235	195
2022 IS-2L	25	255	218

Dimensions in mm

Material Specifications

Component	Material
Body	ASTM-A240 Gr.304L Stainless Steel
Internal Parts	304 Stainless Steel
Valve & Seat	17-4PH H4900
Connector Body (Standard, IS-2, IS-2L)	304 Stainless Steel
Seat Gasket	Polished Stainless Steel Ball
O-Ring	Proprietary Material
Spring	Proprietary Material

Optional Configurations

Functional Options

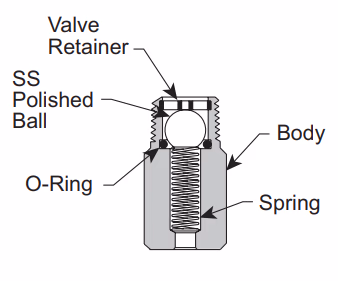

• Freeze Protection Plug: For 2011/2022 traps, add POP suffix, rated 4.1MPa, 177°C
• Insulation Jacket: For 2010/2011 traps, add PK suffix
• Bottom Connection: For 2011/2022 traps, add PC suffix

Universal Connector Options

• Standard Connector
• IS-2/IS-2L/IS-2F Connector with Built-in Strainer
• IS-2/IS-2L/IS-2F Connector with Built-in Strainer and Blowdown Valve
• Integral Stainless Steel Trap Station TVS 4000

Ordering Information

Please specify the following when ordering:

1. Product Model
2. Nominal Diameter
3. Orifice Size
4. Universal Connector Type
5. Connection Type and Standard
6. Required Options (Freeze Protection Plug, Insulation Jacket, Bottom Connection, etc.)
