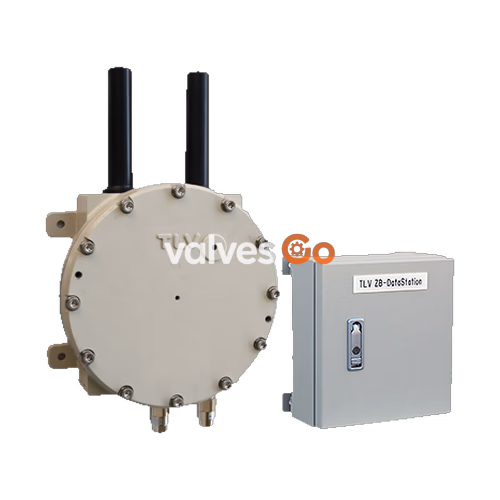

TLV iT5-ZB-DSN is a data station for the iTrapSensor monitoring system, utilizing TLV's IEEE 802.15.4-based protocol. It is designed to administer and control wireless networks while uploading measurement data directly to a collection server.

Features

1. Utilizes the TLV original, IEEE 802.15.4-based communication network.
2. Suitable for monitoring of many devices: up to 8000 sensors can be connected to one data station.
3. Enables administration and control of the wireless network and configuration of network settings.
4. Uploads measurement data to the data collection server.
5. Specifications for hazardous and non-hazardous locations available.

Specifications

Parameter	Explosion-proof	Non explosion-proof
Wireless Frequency Band	2.4 GHz	2.4 GHz
Maximum No. of Connections	100 repeaters and 8000 sensors per data station	100 repeaters and 8000 sensors per data station
Maximum No. of Hops	20 (from sensor to data station)	20 (from sensor to data station)
Communication Cycle	5 minutes to 24 hours	5 minutes to 24 hours
Power Source	External power source: 100 - 240 V AC, 5 W, 50/60 Hz	External power source: 100 - 240 V AC, 5 W, 50/60 Hz
Intrinsic Safety Specifications	ATEX: II 2G Ex db IIC T4 Gb IECEx: Ex db IIC T4 Gb UKEX: Ex db IIC T4 Gb UL/cUL: Class I, Zone 1, AEx db IIC T4 Gb	-
Locations for Use	Hazardous locations, non-hazardous locations	Non-hazardous locations
Installation Location	Outdoor, indoor	Indoor
Communication Method	TLV original wireless network, wired/wireless LAN	TLV original wireless network, wired LAN
Wireless Module	Approx. 600 m (station-repeater) Approx. 200 m (station-sensor)	Approx. 600 m (station-repeater) Approx. 200 m (station-sensor)
Wireless LAN	IEEE 802.11b/g/n Security: 802.11i, AES, WPA/WPA2-PSK, WEP	-
Enclosure Rating	IP54	IP40

Note

1. Automatically set according to the sensor communication cycle configuration. When measurement and communication cycles are set to 1 hour, up to 250 sensors can be connected to 1 repeater.
2. Output power of wireless module is set according to regulations. Communication distance depends on environmental conditions and location, and may be shorter than expected. Contact TLV for further information.

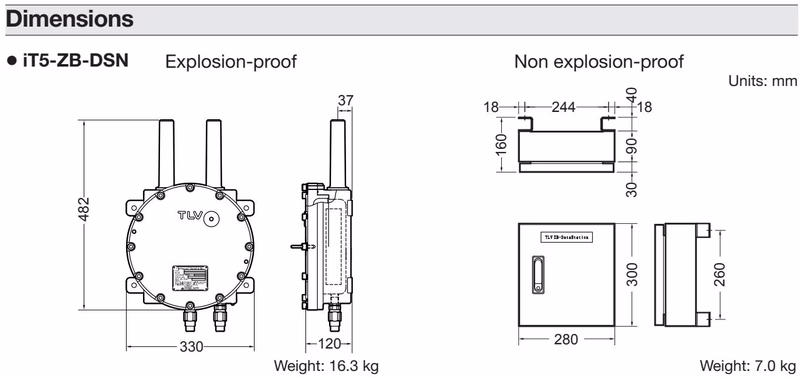

Dimensions

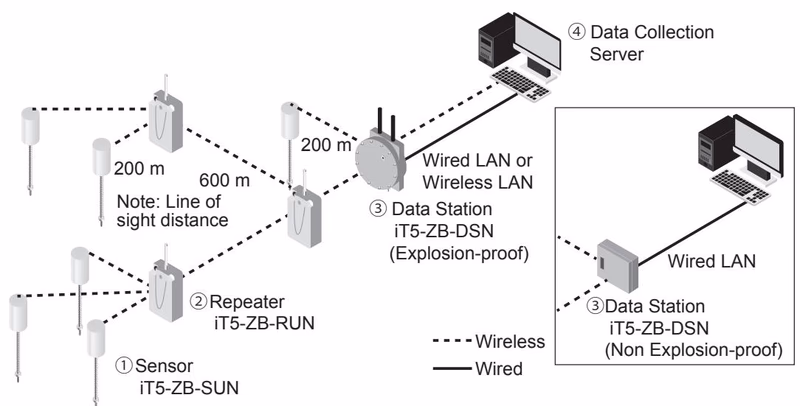

System Configuration Example

No.	Model	Function
1	Sensor: iT5-ZB-SUN	Measurement of ultrasound and surface temperature, wireless transmission of information
2	Repeater: iT5-ZB-RUN	Wireless relay of information
3	Data Station: iT5-ZB-DSN	Relay of information via intranet
4	Data Collection Server	Importing collected data
